Description:

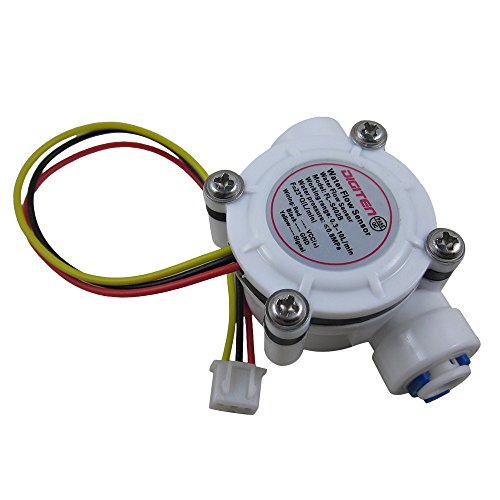

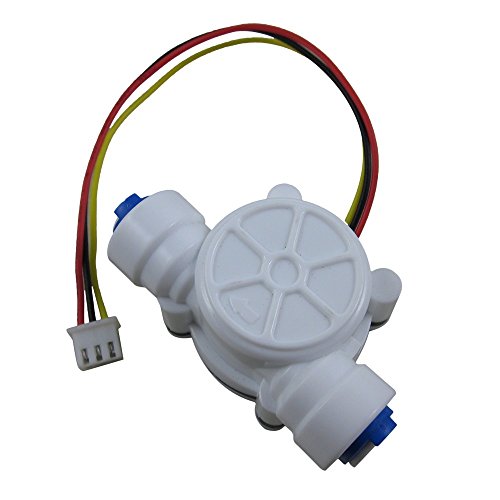

The 1/4 Quick Connect Water Hall Effect Flow Sensor Meter provides precise liquid flow measurement from 0.3 to 10L per minute. This waterproof and heat resistant sensor is ideal for integrating water flow tracking into smart systems.

• Flow Range: 0.3 to 10L per min
• Frequency: F equals 36 times Q L per Min with 2 percent error
• Working Voltage: 3 to 24 VDC
• Pressure Range: 0 to 0.8MPa
• Connector Type: 1/4 Quick connect
• Compatibility: Works with Android and PI systems
• Output: Square Wave pulse signal
• Operating Temperature: 0 to 80 degrees
• Storage Temperature: negative 25 to 80 degrees
• Operating Humidity: 35 to 90 percent RH
• Storage Humidity: 25 to 95 percent RH
• Max Consumption Current: 1.5 mA at DC 5V
• Cable Length: 15cm
• Materials: Plastic and Metal with Stainless Steel finish
• Dimensions: 2.5 inches length, 1.2 inches width, 1.5 inches height
• Thread: 0.25 inch BSP. Note that thread seal tape is required for NPT use
• Compliance: ROHS Compliant
• Applications: Water heater thermostats, water purifiers, boilers, water dispensers, coffee machines, and smart card equipment
