Description:

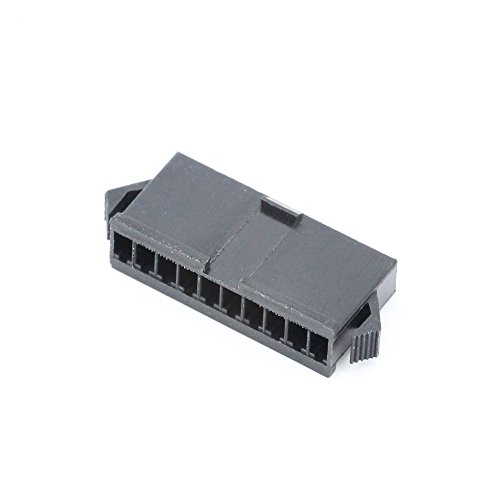

10 Sets 10 Pin SM2. 54mm Connector. With ternimal male and female. !!! Each set include: 1 * Male plug 1 * Female plug 10 * Male terminal 10* Female terminal This item is only plastic housing and pin connector, not included the wire. by ePacket and Shipping time about 15-27days. Model # SM2. 54-10P Features: Type: SM2. 54-10P Pin Number:10 Pin Pitch: 2. 54mm Main Color: Black Silver Tone Materials: Plug houseing: nylon (PA66) UL94V-2(0) Receptacle housing: Nylon (PA66) UL94V-2(0) Retainer:Nylon (PA66) UL94V-2(0) Terminals: Phosphor Bronze Tin/plated Applicable wires:AWG#28#22 Temperature range: -2585 Voltage rating:250V. AC/DC Current rating:3A Contact resistance: 0. 02 Insulation resistance: 800M Withstand voltage:1000V. AC/1min. Extended Shipping time is about 15 - 27 days.
