Description:

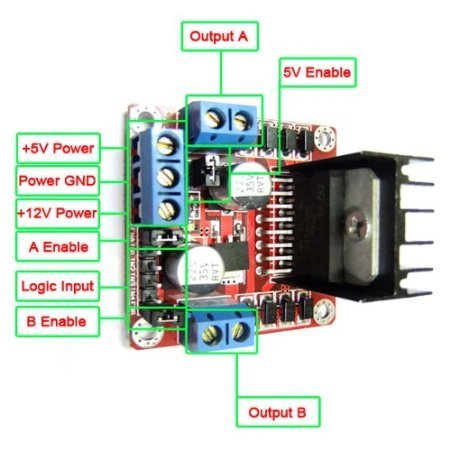

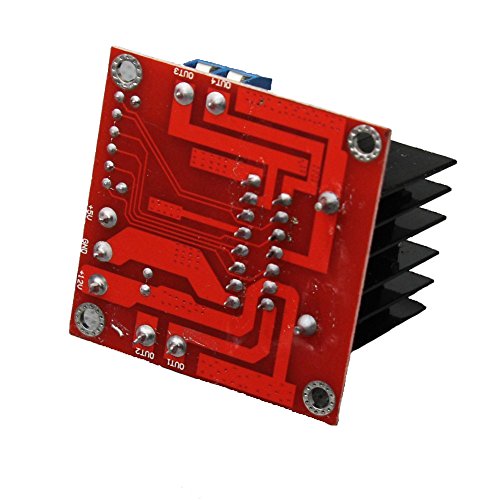

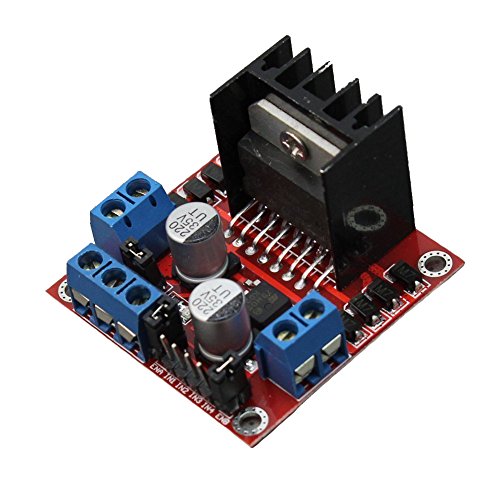

100% and Working mode: H bridge (double lines) Control chip: L298N Logical voltage: 5V Driving voltage: 5V-35V Logical current: 0mA-36mA Driving current: 2A (MAX single bridge) Storage temperature: (-20 C)-(+135 C) Maximum power: 25W Weight: 27g Periphery dimension: 43 x 43 x 27mm(L x W x H) Package Included: 1 X L298N Stepper Drive Controller Board Features: L298N has such characteristics as strong driving ability, low calorific value and strong anti-interference ability L298N as main driver chip makes strong driving ability/small heating/strong Dual-channel H-bridge driver working mode creates higher working efficiency Using large capacity filter capacitor, this module can follow current to protect diodes, and improve the reliability This module can use built-in 78M05 for electric work via a driving power supply part.
