Description:

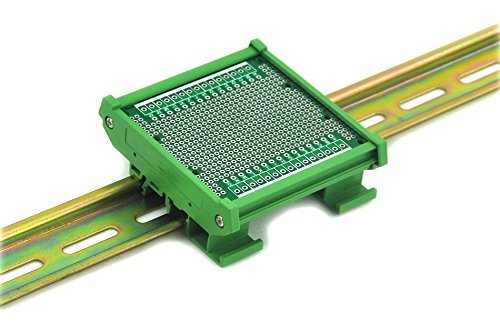

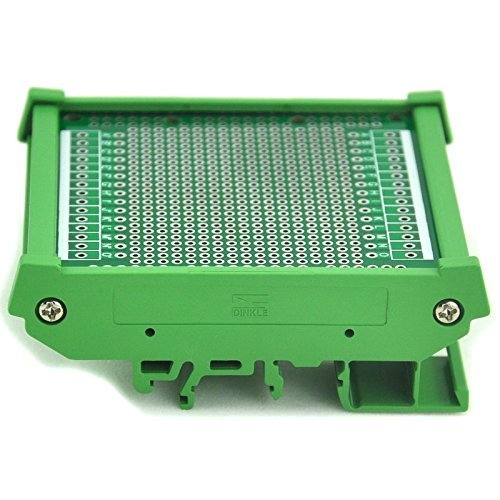

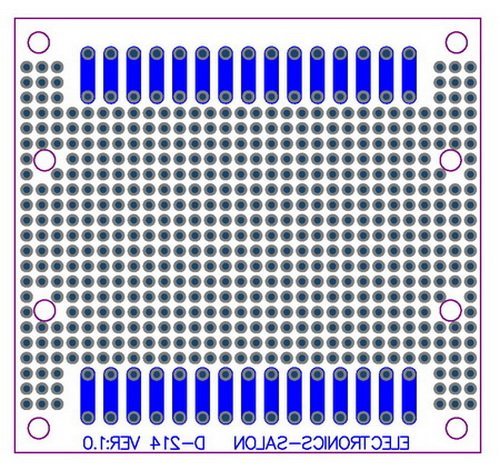

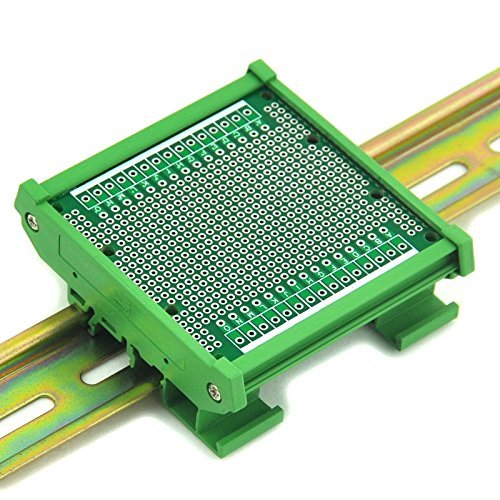

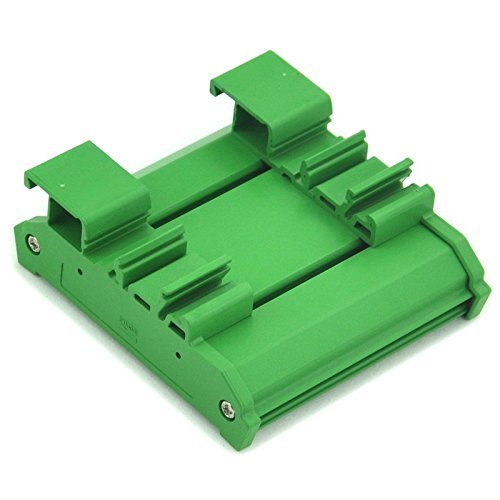

DIN Rail Mounting Carrier Housing with Prototype Board, for DIN Rail Projects DIY. Carrier Housing: for 35mm, 32mm or 15mm DIN rail. External dimensions: L80mm x W87mm x H30mm / 3. 14" x 3. 43" x 1. 18" PCB Dimensions: 77. 4 x 72mm / 3. 05" x 2. 83" PCB Thickness : 1. 6mm. Material : FR-4 (glass fiber). All holes are plated through. Both sides are identical. PCB AO and AO connectors position pitch 3. 81mm / 0. 15", hole diameter 1. 2mm, mount pitch 3. 81mm / 0. 15" terminal blocks are appropriate. Other pads grid (pitch) 2. 54mm / 0. 1", hole diameter 0. 9mm. Features: DIN Rail Mounting Carrier Housing with Prototype Board, for DIN Rail Projects DIY. Carrier Housing: for 35mm, 32mm or 15mm DIN rail. External dimensions: L80mm x W87mm x H30mm / 3. 14" x 3. 43" x 1. 18" PCB Dimensions: 77. 4 x 72mm / 3. 05" x 2. 83" PCB Thickness : 1. 6mm. Material : FR-4 (glass fiber).
