Description:

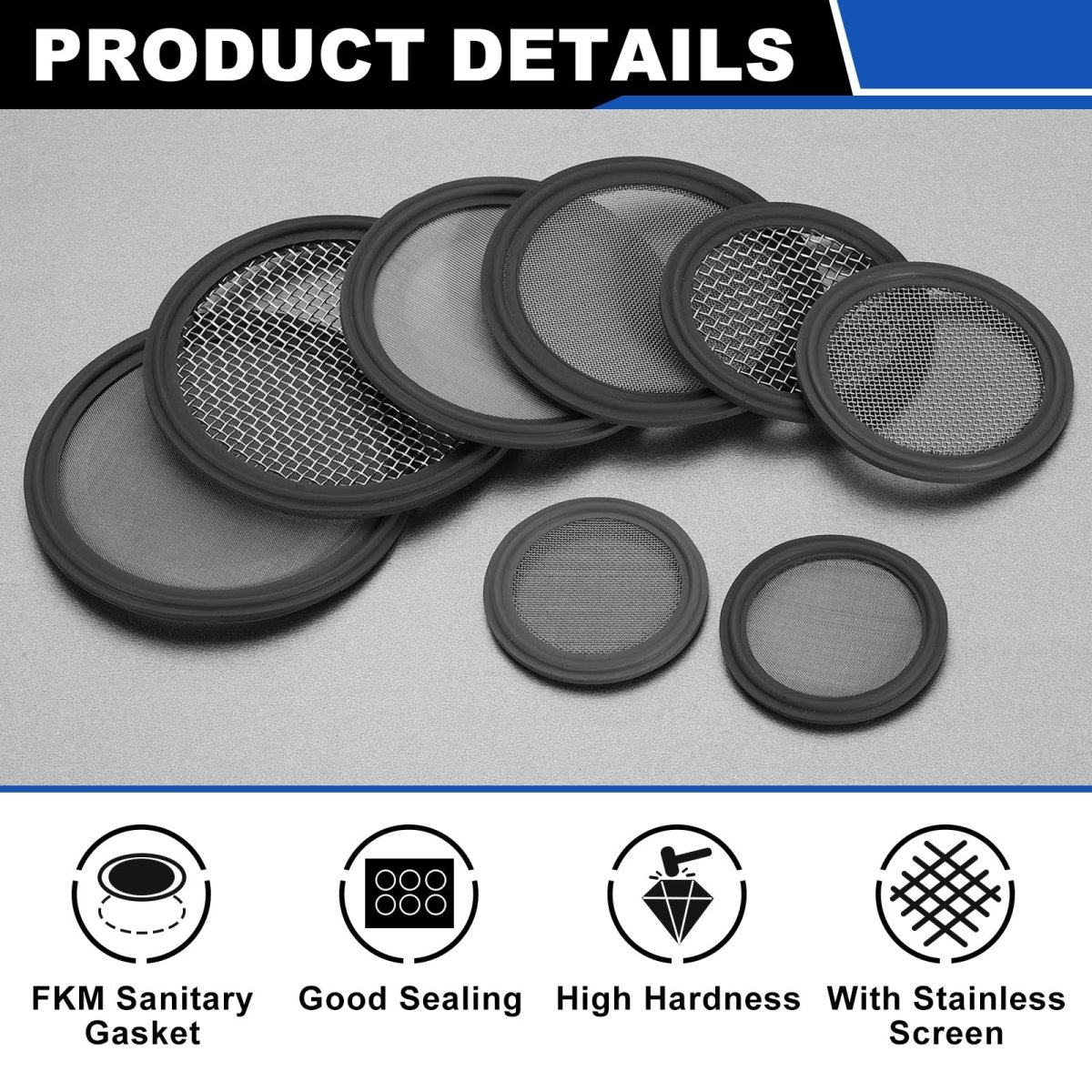

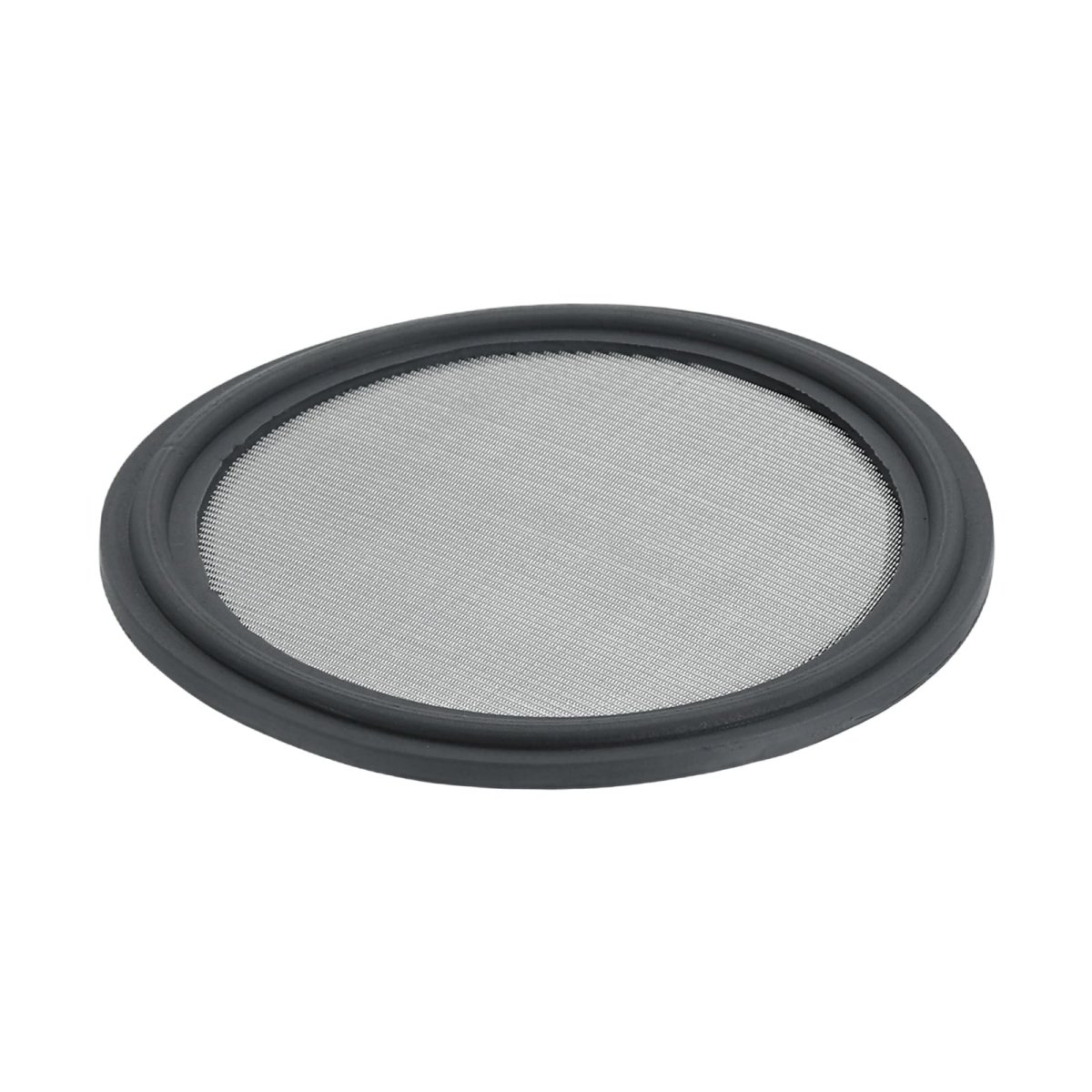

FKM Sanitary Gasket with 200 Mesh Stainless Steel Screen provides a leak proof seal and filtration for Tri Clover clamp ferrule fittings. This high temperature resistant gasket ensures stable performance in industrial sanitary piping systems.

• Material: Premium FKM fluoroelastomer with 304 stainless steel mesh reinforcement
• Resistance: Excellent resistance to heat, oil, fuel, and aggressive chemicals
• Function: Leak proof sealing with a built in screen to prevent deformation and enhance strength
• Application: Ideal for brewery systems, dairy processing, food equipment, water treatment, pumps, filters, and pressure washers

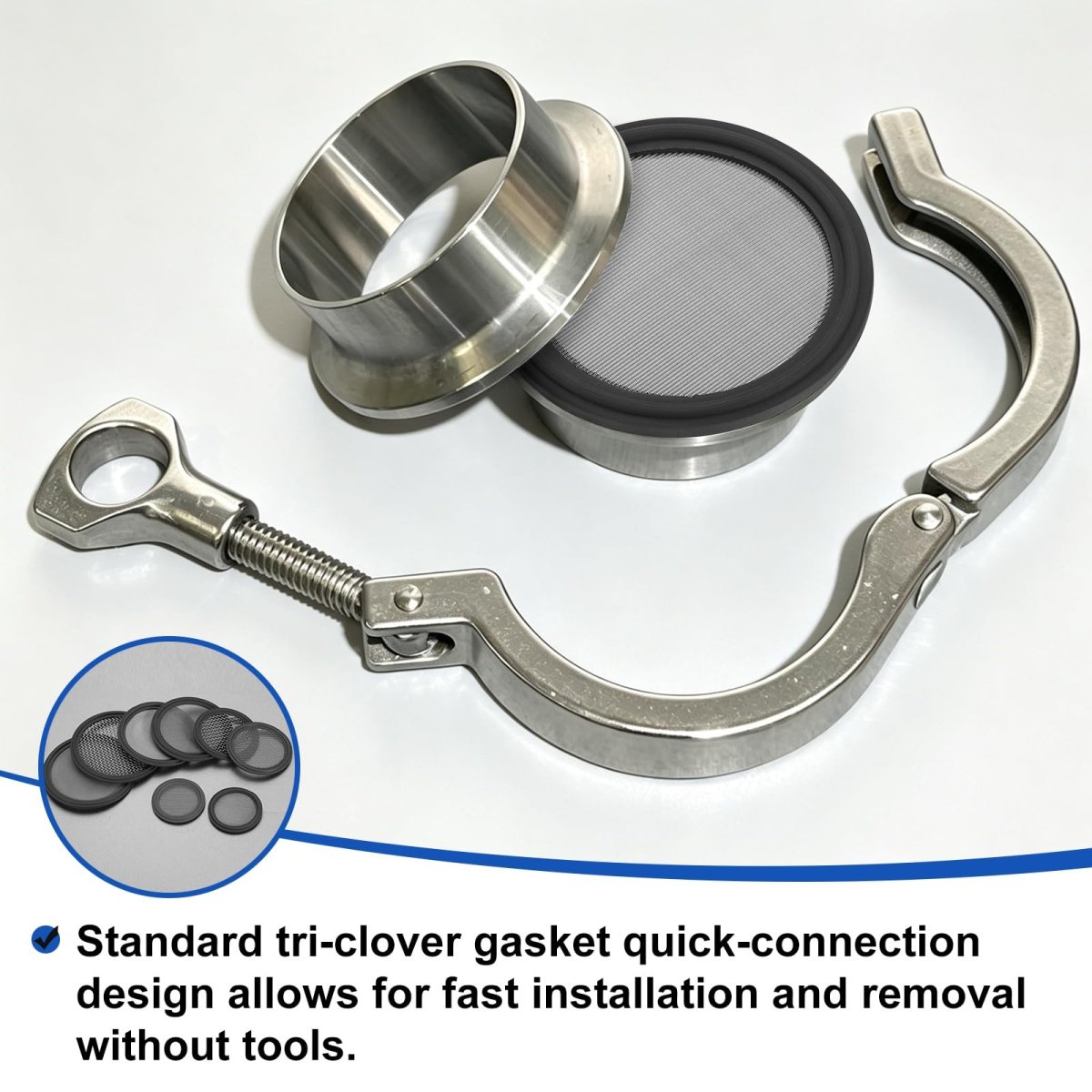

• Installation: Quick connection design for tool free installation between clamp fittings
• Adapt to Pipe Diameter: 51mm or 2.01 inches
• Outer Diameter: 64mm or 2.52 inches
• Inner Diameter: 47mm or 1.85 inches
• Total Thickness: 5.2mm or 0.2 inches
• Edge Thickness: 2mm or 0.08 inches
• Raised Lip Diameter: 57mm or 2.24 inches
• Mesh Size: 200 Mesh
• Color: Gray
• Connector Type: Flange
