$55.49 USD
- or -
Description:
This 2 Tie Rod Set is designed for a precise fit and reliable steering performance for compatible Arctic Cat models. It provides a complete replacement solution to restore handling and stability to your vehicle.Order Includes
- 2x Tie Rod

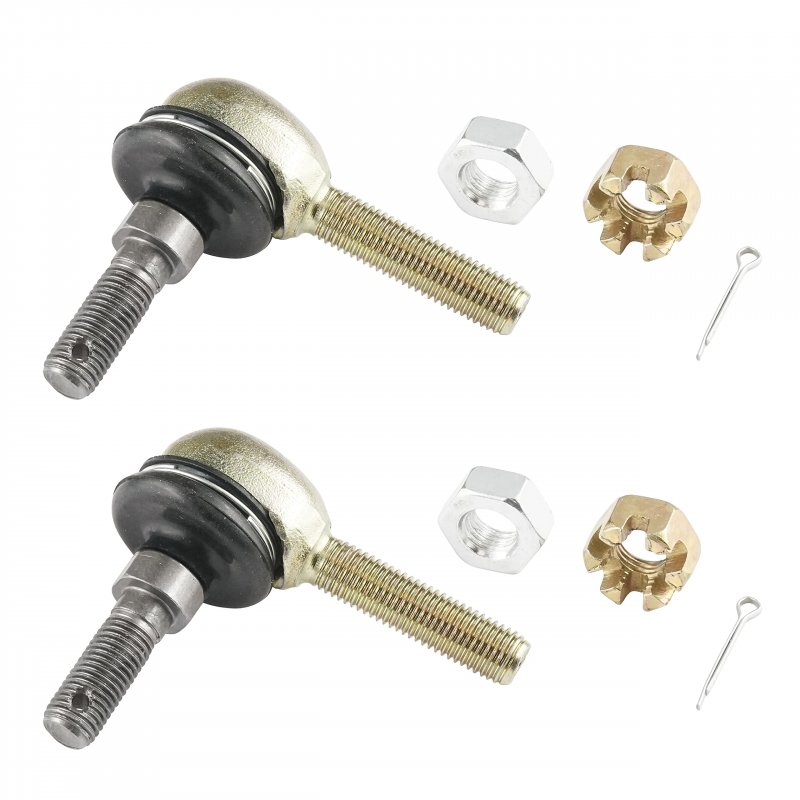

- 4x Tie Rod End
Technical Specifications
- Thread Size M10 1.0

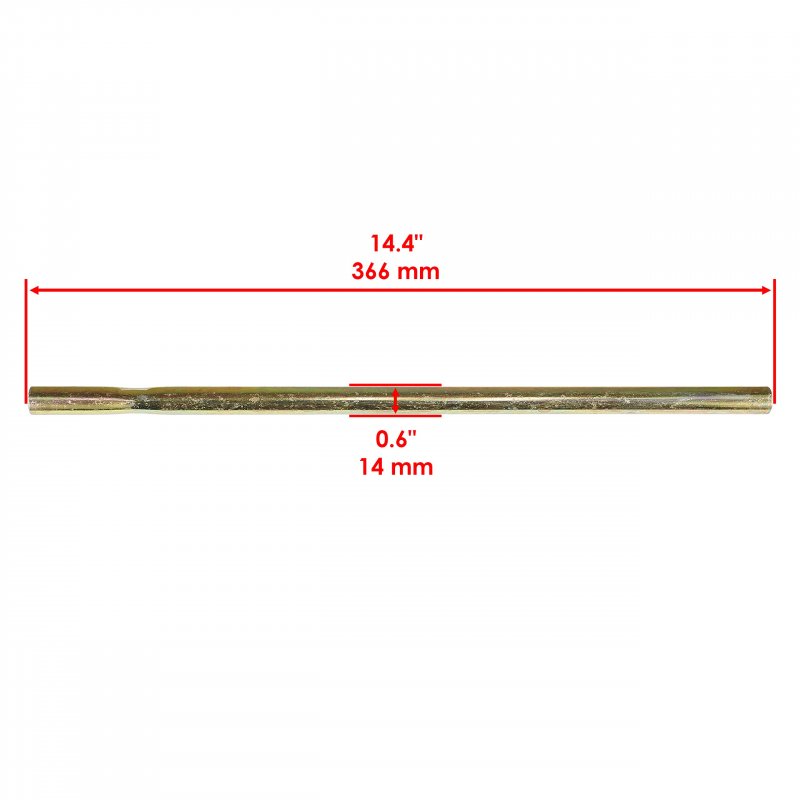

- Tie Rod Length 367 mm
- Tie Rod End Height 73.5 mm
- Width 63.9 mm
Compatible Models
- 500 Fis 4x4 Automatic 2002 2007
- 500 Fis 4x4 Manual 2002 2007
- 550 H1 Efi 4x4 Automatic 2009 2010
- 650 H1 Fis Tbx Trv 4x4 Automatic 2007
- 650 H1 Se 4x4 Automatic 2006
- 700 Efi Fis 4x4 Automatic 2007
- 700 Gt 2012
- 700 H1 Efi 2011
- 700 H1 Efi 4x4 Automatic 2009 2010
- 700 H1 Efi 4x4 Tbx 2010
- 700 H1 Efi Mud Pro 4x4 Automatic 2009 2010
- 700 Mud Pro 2012 2013
- 700 Mud Pro Ltd 2012 2015
- 700s H1 Efi 2010 2011
Compatible Part Numbers
- Tie Rod 0405 107, 0405 281
- Tie Rod End 0505 874, 0505 875, 0405 010, 0405 011, 0405 041, 0405 083, 0405 503, 0505 511, 0405 040, 0505 510, 0405 082, 0405 502
