Description:

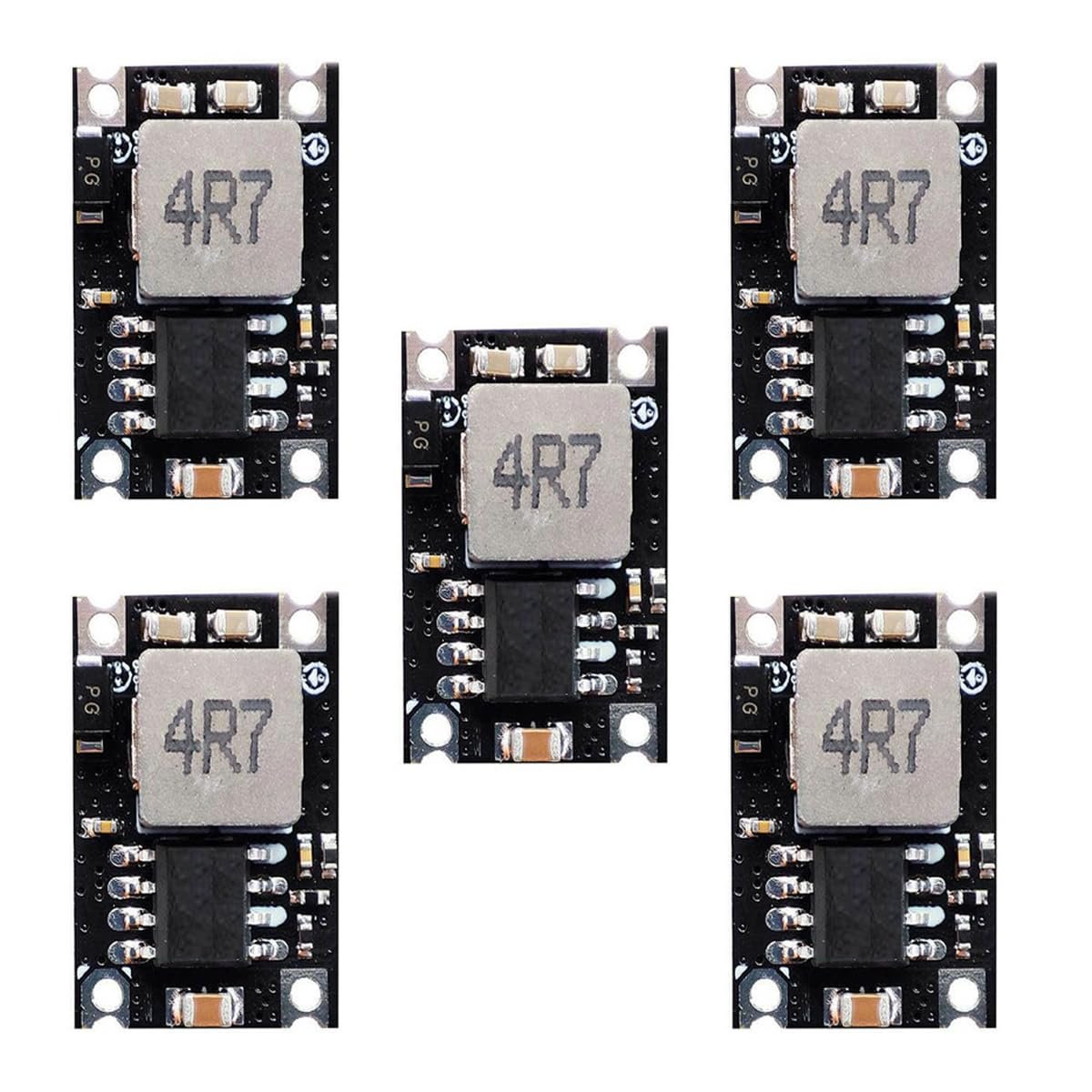

Very small size, length, width and height are 17.5*12.3*4.3mm,Input: 4.5V-24V,Output: 3.3V. The maximum output current can reach 1.5A, when the output current is 1.3A, the output voltage is 3.2V. Output ripple: less than 30 mV; Switching frequency: 1.5 MHz (highest), typically 1 MHz. Package: 5PCS 3.3V Buck Module.
