Description:

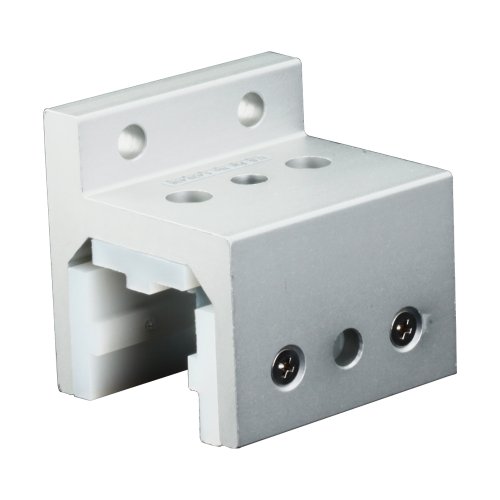

The 6415 10 Series 3 Slot Mount Single Flange Short Standard Linear Bearing with Brake Holes is designed for linear motion applications. It provides a compact solution for housing profiles with at least three open T slots to ensure smooth movement.

• Application Linear motion
• Compatibility Rides on the 1 inch side of a 10 Series extrusion
• Mounting 3 slot mount single flange short standard design with brake holes
• Material Aluminum construction
• Bearing Pads Self lubricating UHMW material
• Dimensions 1.968 inches tall by 1.624 inches wide by 1.875 inches long
• Bore Diameter 1 inch
• Included Components Pads, screws, and shims
• Load Capacity Designed for compression loads only and not intended to support hanging loads
• Lubricant Type Grease
