Description:

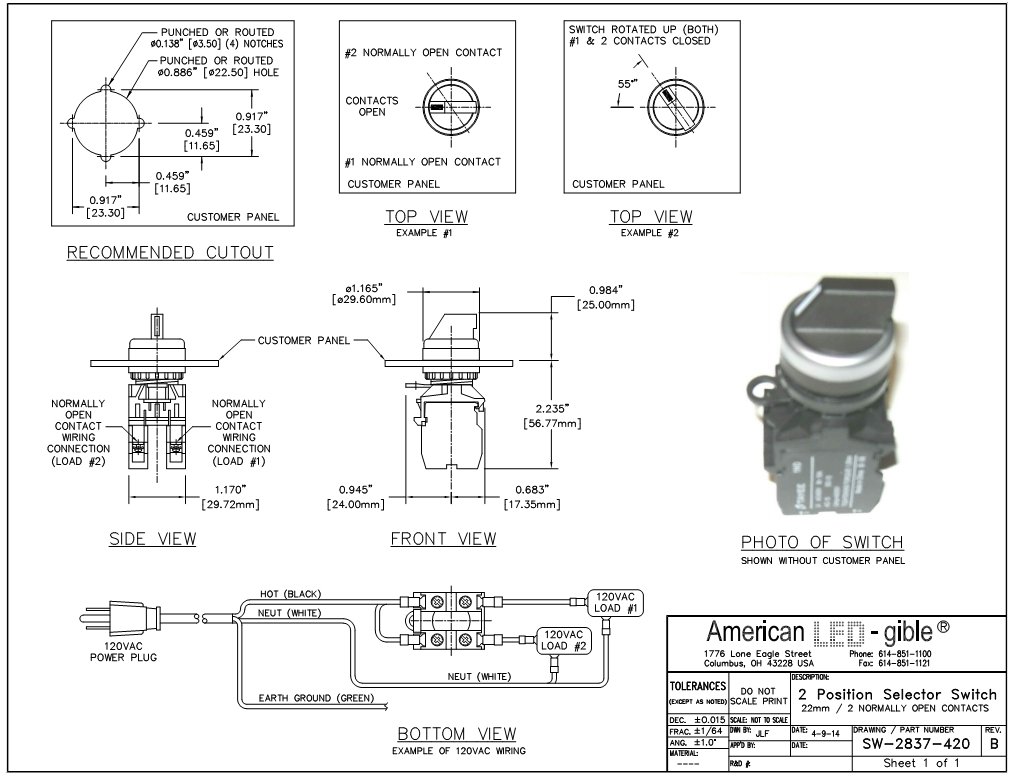

This 22mm (7/8") maintained 2 position toggle switch includes 2 removable normally open (N. O. ) contact blocks for applications requiring a maintained double pull single throw (D. P. S. T) contact closure signal. Specifications: Working Temperature Range: -25 to +60 degrees Centigrade Rated Insulation Voltage: 600 Volts Mechanical Life: 1,000,000 uses @ 20 Hz Sealant Rating: IP65 Electrical Life: AC-15 operation: 600,000 @ 20Hz DC-13 operation: 250,000 @ 20Hz, Contact has a thermal current rating of 10 amp maximum and a working voltage rating of 110VAC @ 7amps, 220VAC @ 6 amps, 380VAC @ 4 amps approximate. 2-Position Switch2 N/O Contact Blocks22mmIP65Model # SW-2837-420.
