Description:

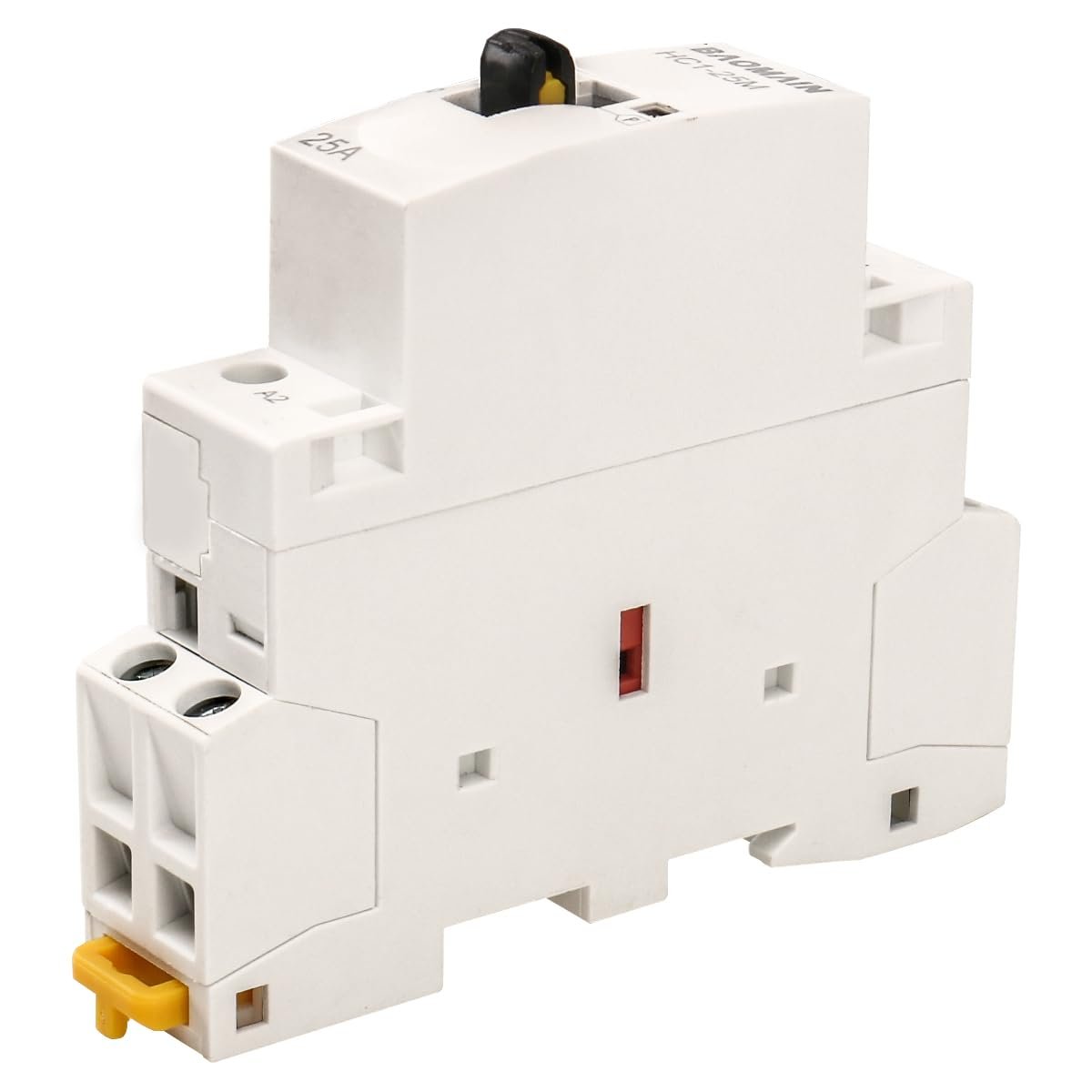

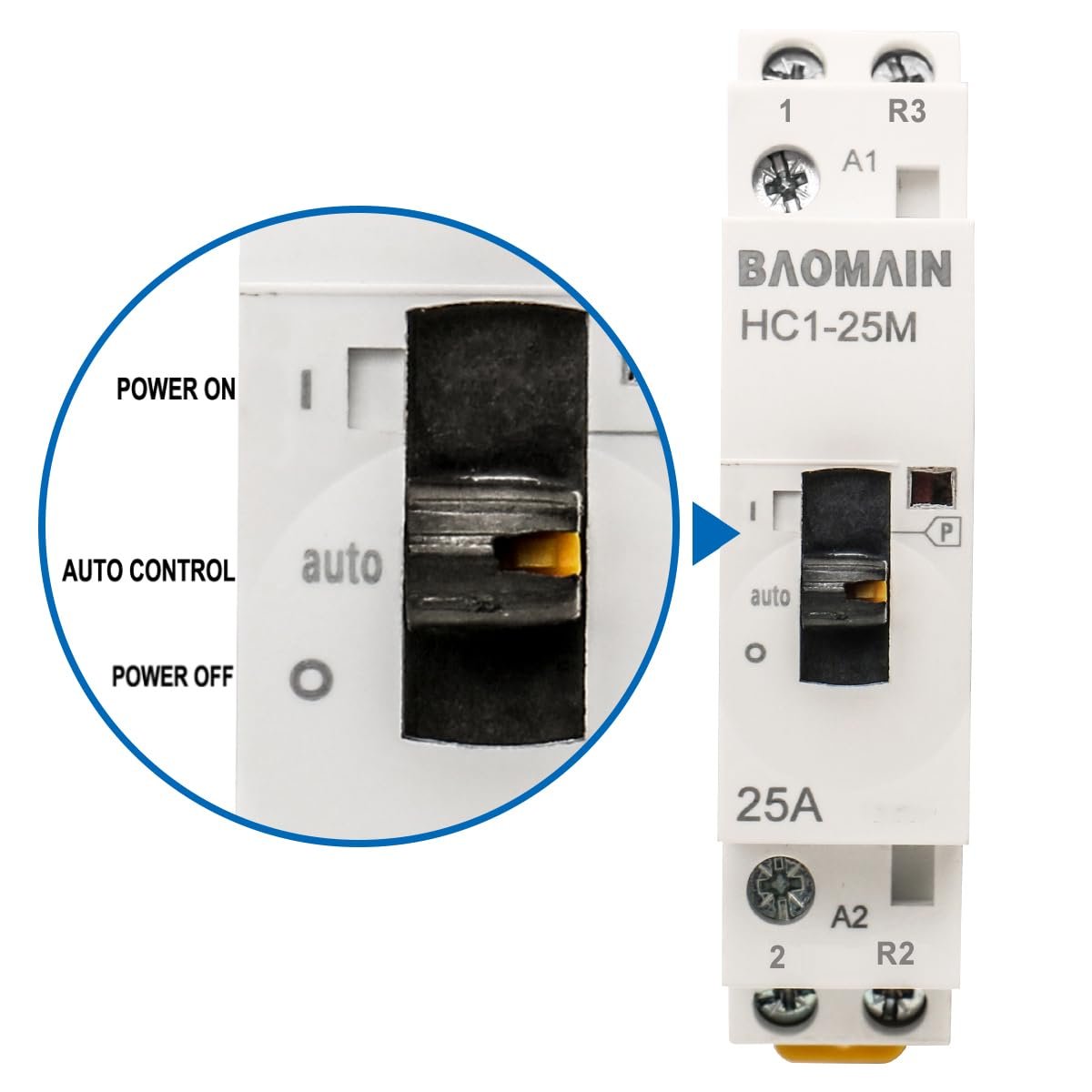

Operation method: Manual; Rated Coil Voltage : AC 110V. Rated Current(le): 25A; Ui : 500V; Ue: 250V; AC-7a 25A, AC-7b 9A. Number of Poles: 2; Type: 1 NO 1 NC. Wire Capacity Range : AWG 12-10. Overall Size(Approx.): 82 x 18 x 67mm / 3.23" x 0.71" x 2.6"(L*W*T).
