Description:

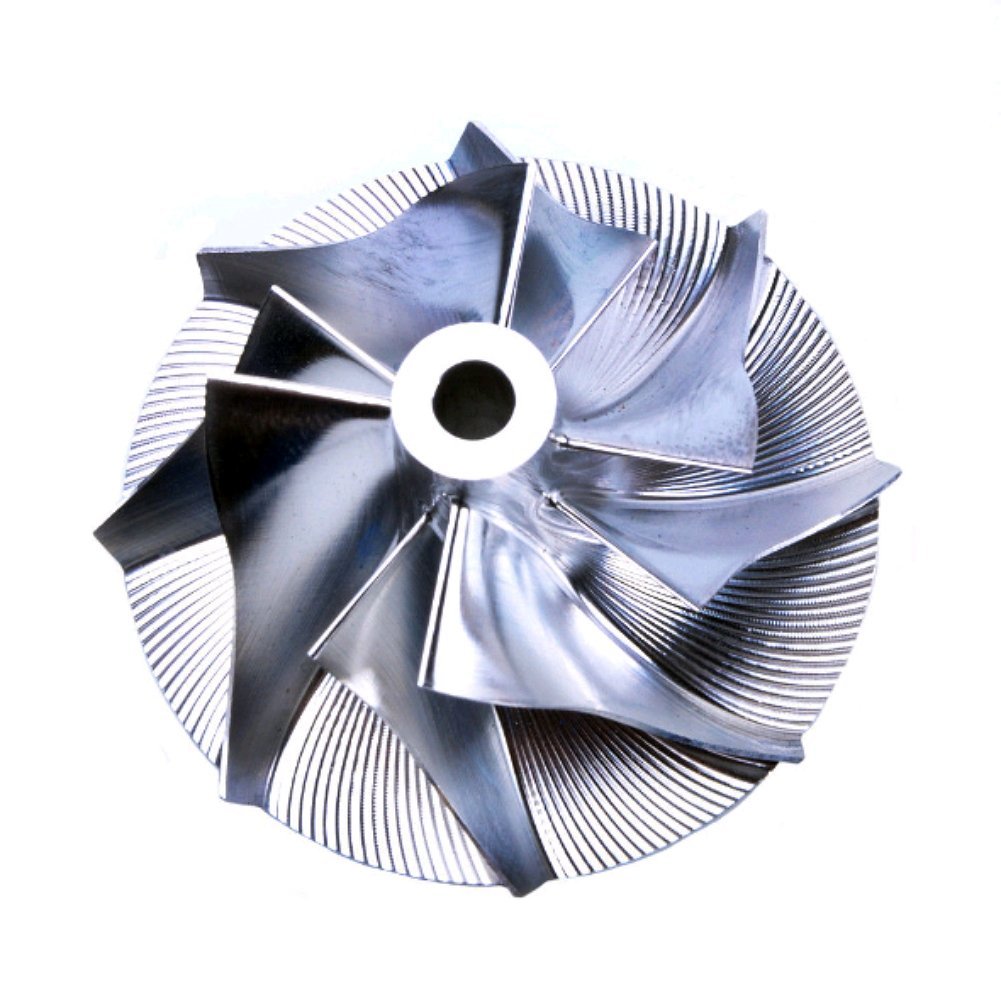

This Billet Compressor Wheel for IHI Suzuki RHB3 VZ9 is designed for Suzuki engines and vehicles to provide a high performance upgrade for VZ9 turbochargers. It is balanced by SCHENCK MBRS 110 and supports a maximum boost of 5 bar or 70 Psi.

• Part Number 405 9901B 303
• Material Forged Aluminum

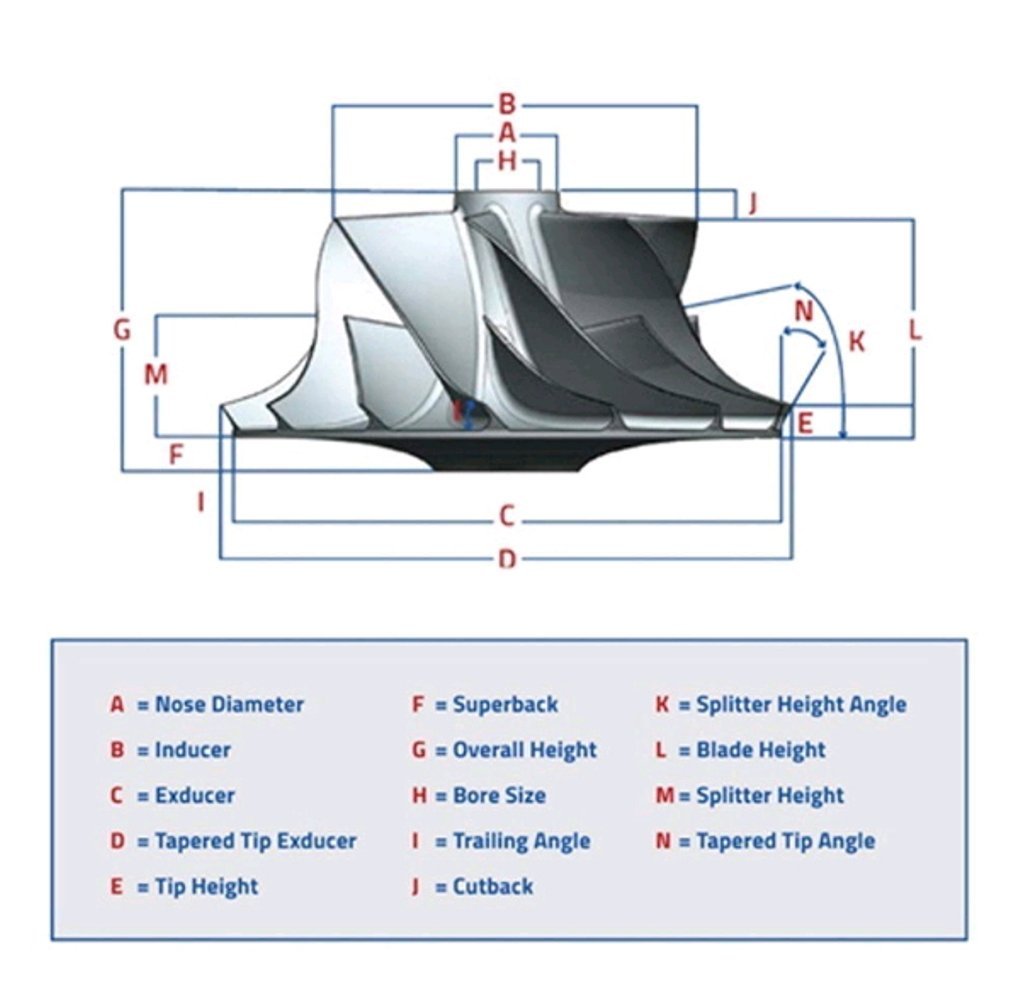

• Nose Diameter 9.25 mm
• Inducer Diameter 23.79 mm
• Exducer Diameter 35.50 mm
• Extend Tapered Tip Exducer Diameter 36.95 mm
• Tip Height 2.84 mm
• Super Back Height 0.00 mm
• Overall Height 17.20 mm
• Bore Size 4.41 mm
• Bore Type Through
• Blade Count 4 plus 4
• Trailing Angle 75 to 90 degrees
• Rotation Forward
• Cutback 0.0
• Fits OE Comp Hsg OE
• Size STD
• Application Non Racing
