Description:

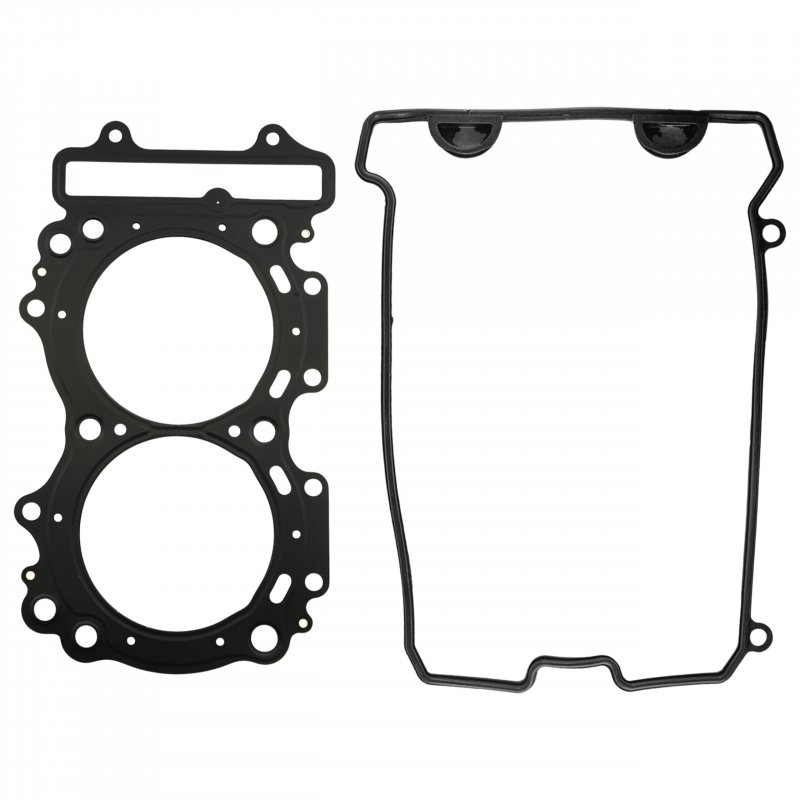

This engine cylinder head gasket set provides a precise seal for Arctic Cat engines to ensure optimal performance and leak prevention. The kit includes both the cylinder head gasket and the head cover gasket for a complete installation.

• Compatible Models
  Bearcat 5000 Xt 2015, Bearcat Z1 Xt 2009 to 2011, Jaguar Z1 2007 to 2008, Jaguar Z1 Early Build 2007, Jaguar Z1 Sno Pro 2008, M9000 2014 to 2016, Proclimb M1100 2012 to 2013, Proclimb Xf1100 Turbo Sno Pro High Country 2012 to 2013, Procross F1100 2012 to 2013, Procross Xf1100 2012 to 2013, Tz1 Touring Lxr Turbo Lxr 2008 to 2014, Xf 9000 2014 to 2016, Z1 1100 2009 to 2011, Zr 5000 Lxr 2014 to 2017, Zr 9000 2014 to 2016
• Part Numbers
  Cylinder Head Gasket 3007 072, Head Cover Gasket 3007 077
• Cylinder Head Gasket Dimensions
  Width 149.1 mm or 5.8 in, Inner Diameter 98.2 mm or 3.8 in, Length 288 mm or 11.3 in
• Head Cover Gasket Dimensions
  Length 197.5 mm or 7.77 in, Height 167.8 mm or 6.6 in
• Package Contents
  1 Cylinder Head Gasket and 1 Head Cover Gasket
