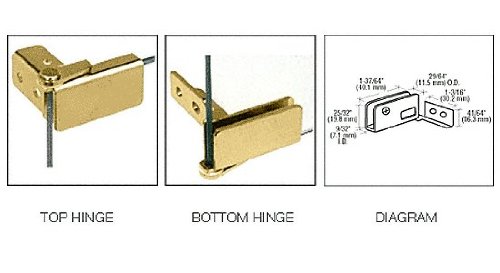

Precision Machined and Finished for Quality Appearance Designed for 3/16" (5 mm) to 1/4" (6 mm) Glass This CRL SurfMount Glass Door Hinge is for use when doors are to be mounted on front surfof cabinet, installed into the side walls of the cabinet. Color: Brass Minimum Order: 1 Pair Wood mounting screws are not included but can be ordered separately. Use CRL Black Screws, Brass Screws, or Chrome Screws. All pieces are precision machined and finished for consistent quality appearance. Design simplicity gives you flexibility in use, making possible any number of compartment combinations. Luxurious black, brass and chrome finishes complement any type of wood, formica or glass cabinet components. All components are made to fit 3/16 inch (5 millimeter) to 1/4" (6 mm) glass. Maximum door dimensions are 18 inches (457 millimeters) wide x 39 inches (991 millimeters) high. General Glass Cutting Dimensions for CRL SurfMount Stereo Cabinet Hinges Glass Height: Opening Plus 5/16 inches (7. 9 millimeters) Single Door Width: Opening Plus 3/4 inch (19 millimeter) Double Door Width: Opening Divided by two, Plus 11/32 inch (8. 7 millimeter) Packaged in pairs. Features: Precision Machined and Quality Finished Hinge Designed for 3/16" (5 mm) Glass Designed for 3/16" and 1/4" (5 and 6 mm) Glass Use Monolithic Tempered Glass Item Dimensions: 6" L x 6" W x 6" H.
