Description:

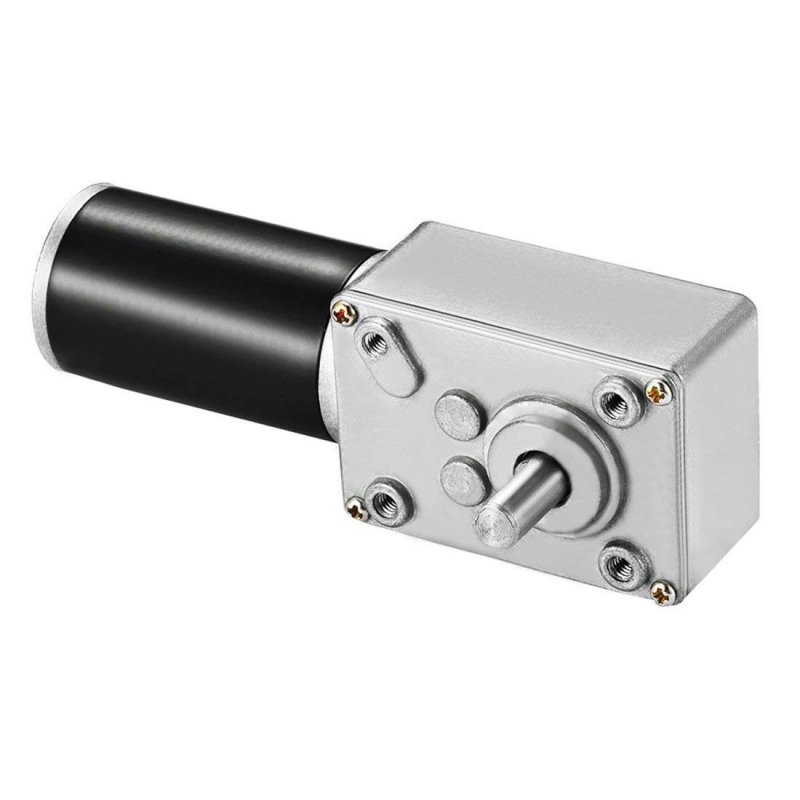

This DC 12V 220RPM reversible worm gear motor provides high torque and a self locking feature for precise control in automation projects. It is an efficient speed reduction turbine gearbox motor designed for versatile industrial and home applications.

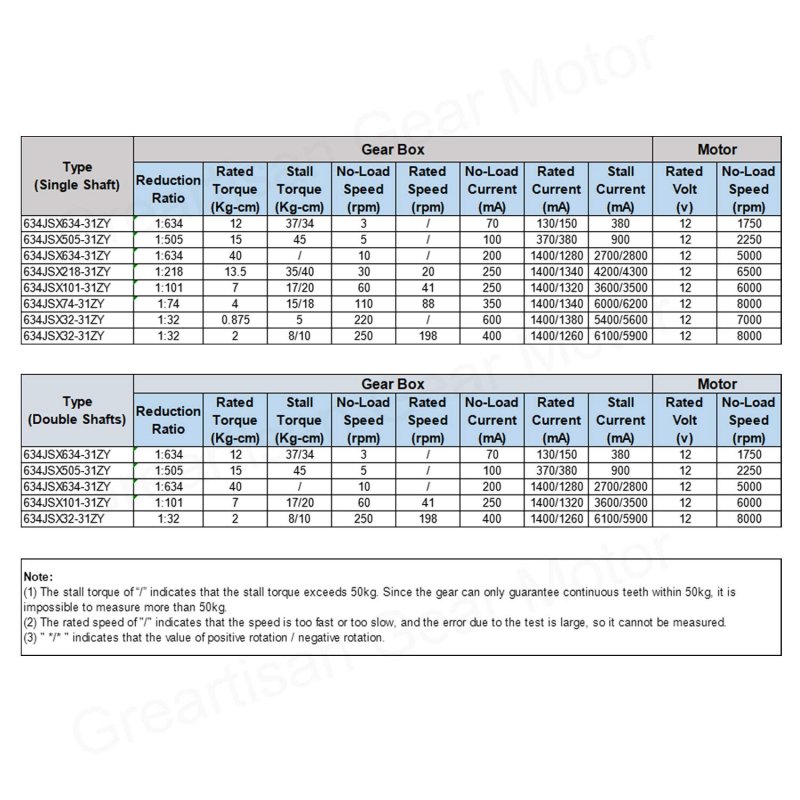

• Rated Voltage: DC 12V
• No Load Speed: 220RPM
• Reduction Ratio: 1 to 32
• Rated Torque: 0.875Kg.cm
• Rated Current: 1400 positive and 1380 negative mA
• Output Shaft: 8mm by 15mm D shaped single shaft

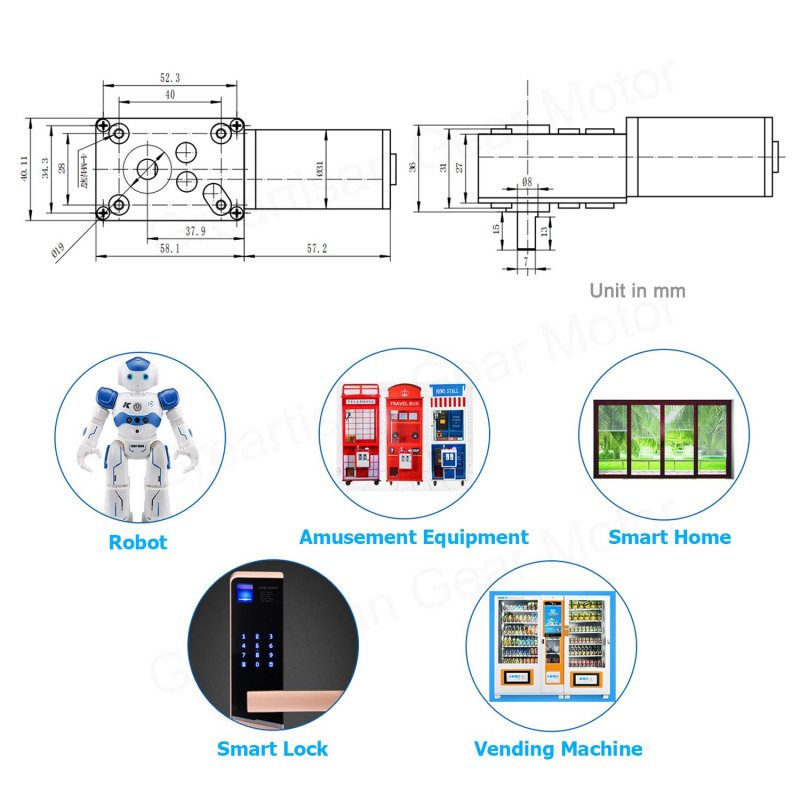

• Gearbox Dimensions: 58.1 x 40.11 x 36mm
• Motor Dimensions: 31 x 57.2mm
• Mounting Hole Size: M4
• Material: Metal and electronic components
• Wire Length: 20cm
• Rotation: Positive and negative reversible rotation via wiring change

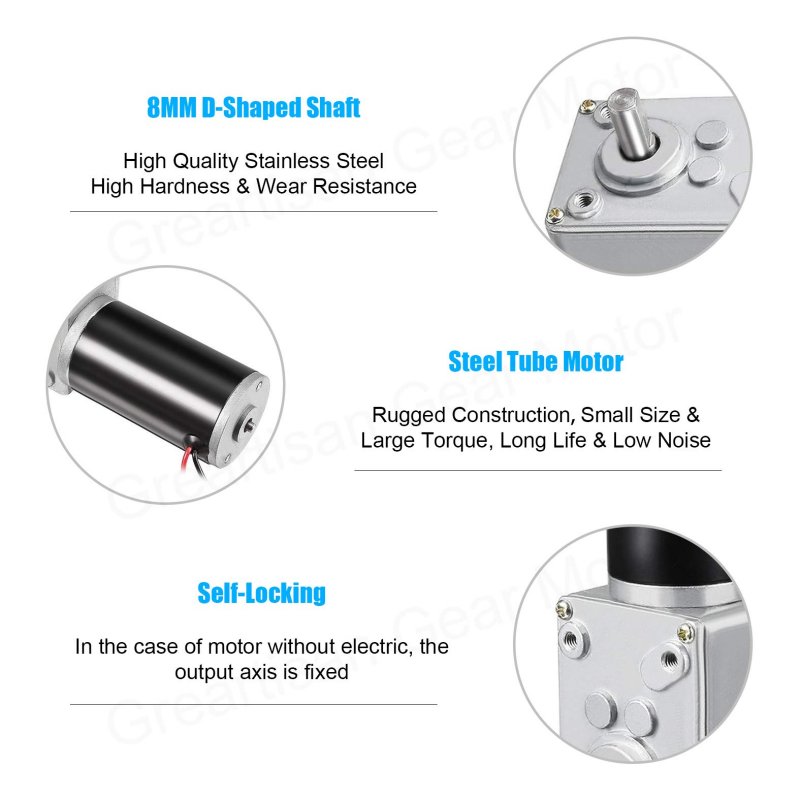

• Self Locking: Output axis remains fixed when motor is not powered
• Design: High precision gear for lower noise and high efficiency
• Storage Temperature: 0 to 40 degrees Celsius
• Operating Temperature: 0 to 70 degrees Celsius
• Applications: Boat, car, fan, home appliance, BBQ, machinery, automation instruments, electric curtains, stage lighting, vending machines and automatic monitoring
