Description:

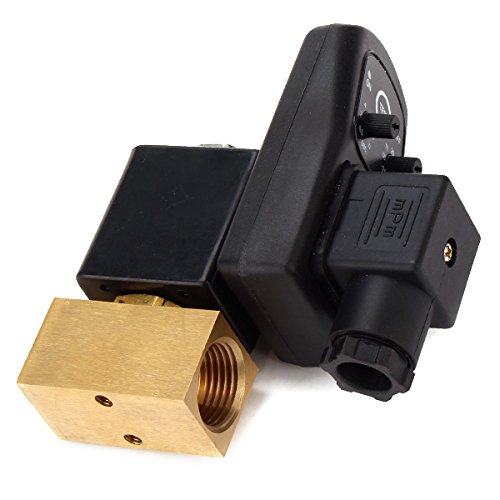

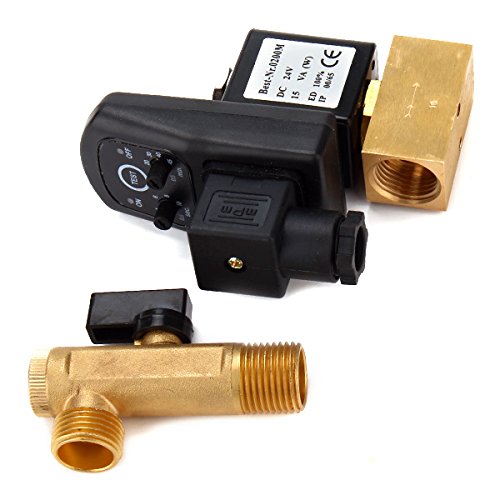

Features: Equipped with a ball valve filter, split with drain valve, an L-shaped structure Voltage: 24V 50HZ Voltage range: 10% Time interval ( OFF ): 0. 5 to 45 minutes (adjustable) Discharge time ( ON ): 0. 5 to 10 seconds (adjustable) Manual test button: Yes( micro switch ) The current consumption: Max 4mA Ambient temperature: minus 40 C to 60 C Protection grade: IP65 Shell material: Flame retardant ABS plastic Electrical connection: DIN43650A Indicator lamp: LED indicating power on / off Type: two-way direct-acting valve Flow aperture: 5 Insulation class: H In / out port size: 1/2" Maximum working pressure: 1. 6Mpa Maximum temperature: 90 C Valve material: Forging brass Package includes: 1 x Drain Valve.
