Description:

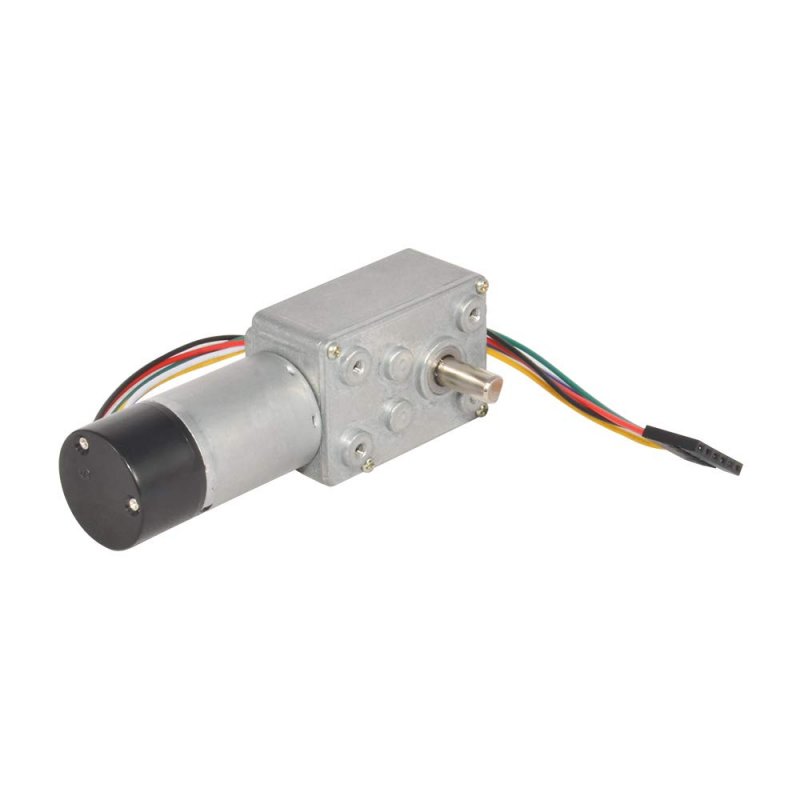

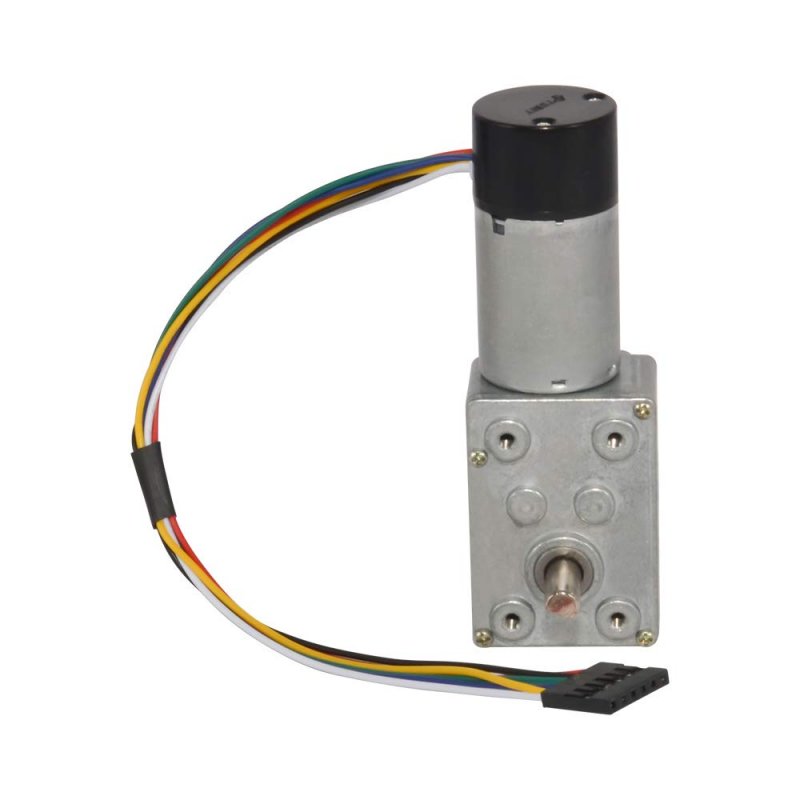

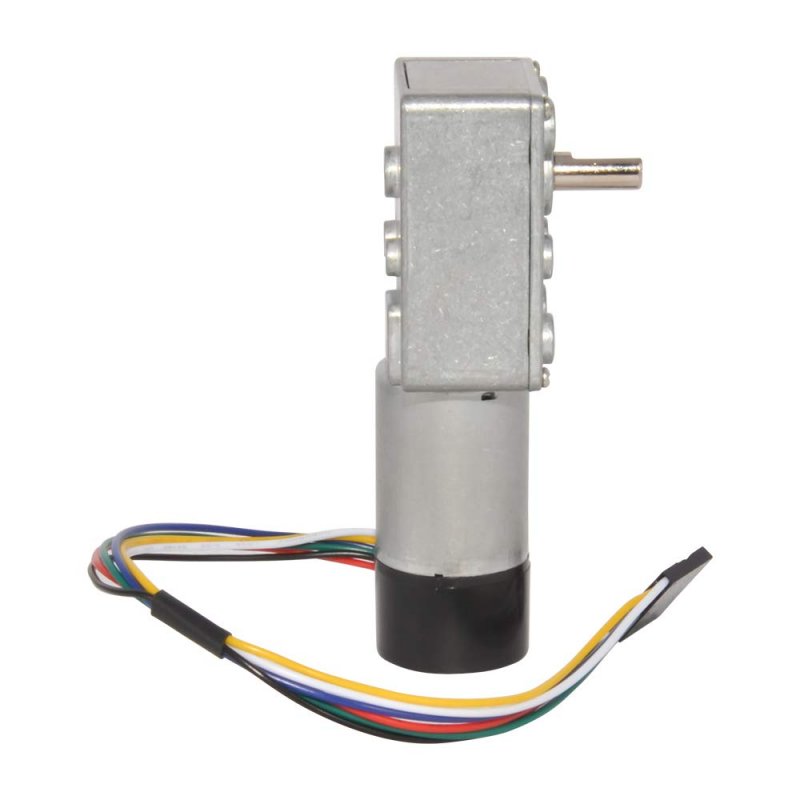

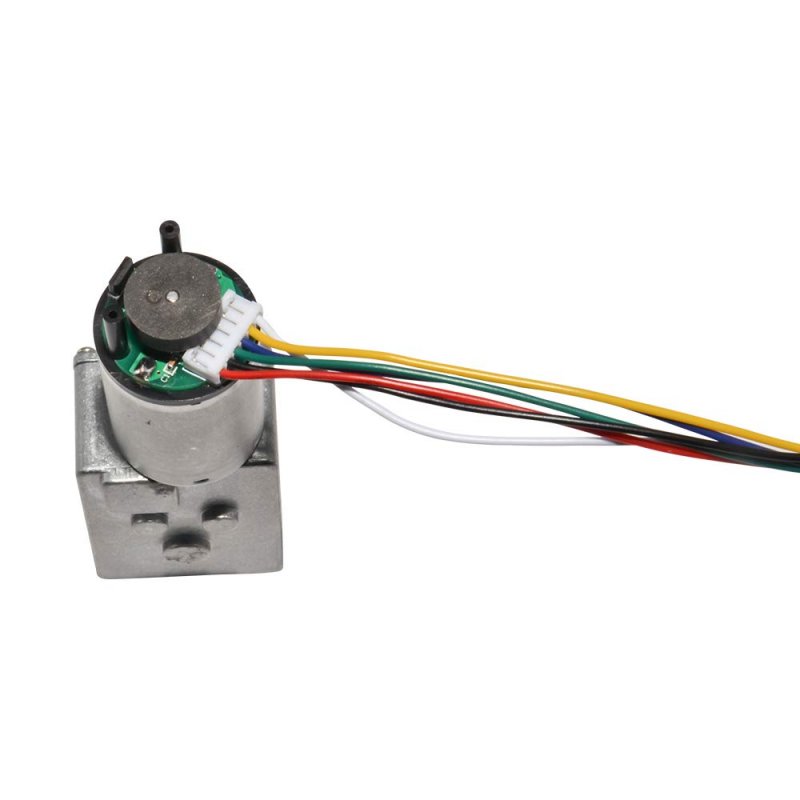

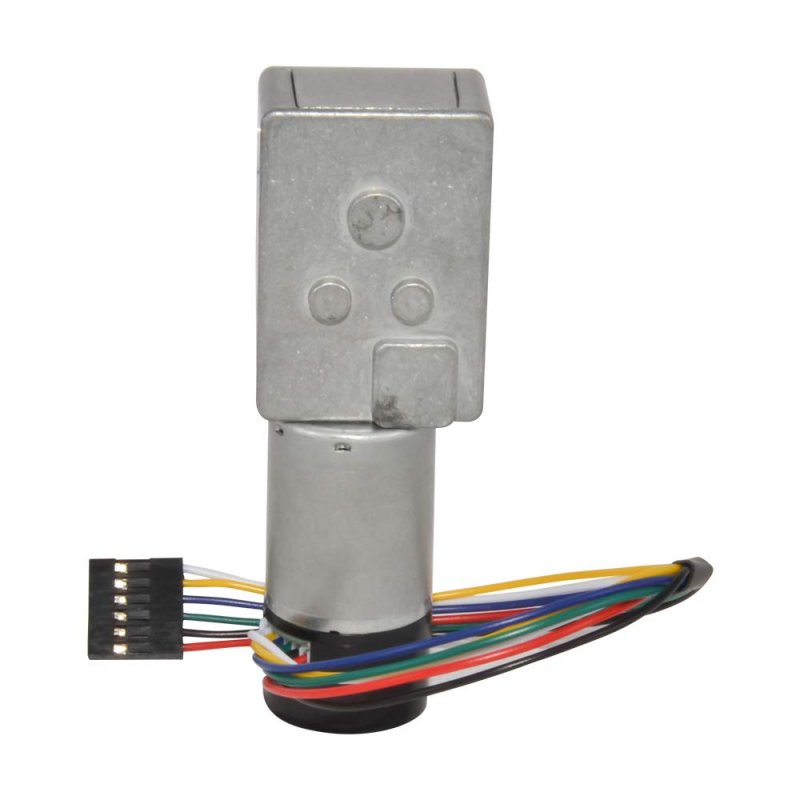

Product type: DC Gear motor with two-channel Hall effect encoder;. Rated Voltage: 12V; No-Load Speed:15RPM; No-Load Current: 0.26A;Rated Torque:3kg.cm;. Main Body Dimensions:93 x 32 x 27mm / 3.66" x 1.26" x 1.06 (L*W*H);Out Shaft Dimensions: 14 x 6mm / 0.55" x 0.23"(L*D) with 11 x 1.2mm / 0.43" x 0.047" flat cut off;. Single Output 3960 Pulses Per Revolution: Gear Reduction Ratio: 1/330; Each Loop Output Pulses: 12PPR 330*12=3960PPR;. Wiring Diagram:Red - Motor power terminal(+); Black - Motor power terminal(-); Green - Hall encoder Ground; Blue - Hall encoder +5V Vcc; Yellow - Hall encoder A signal; White - Hall encoder B signal..
