Description:

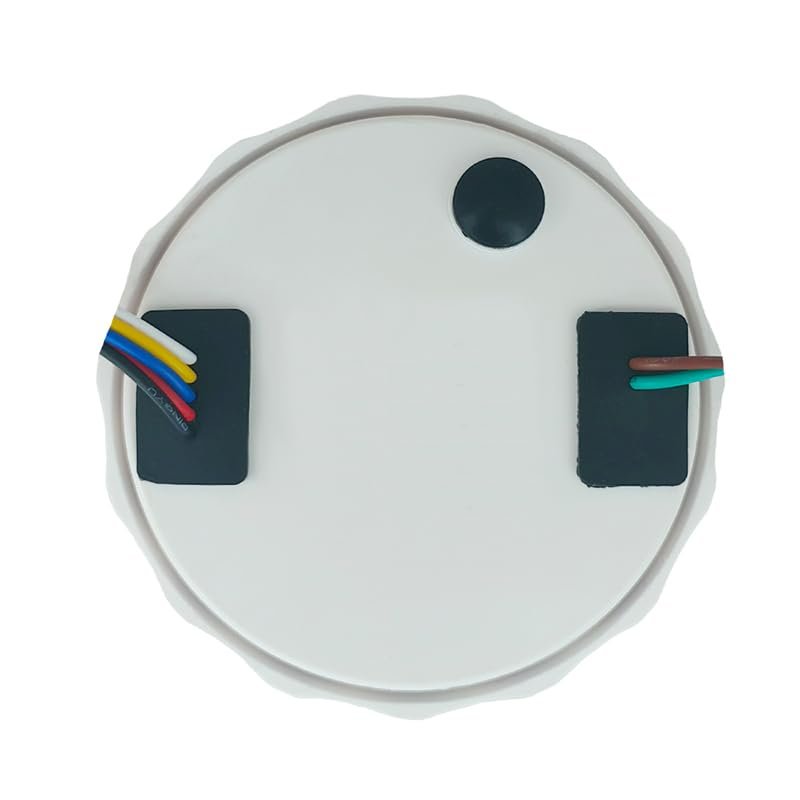

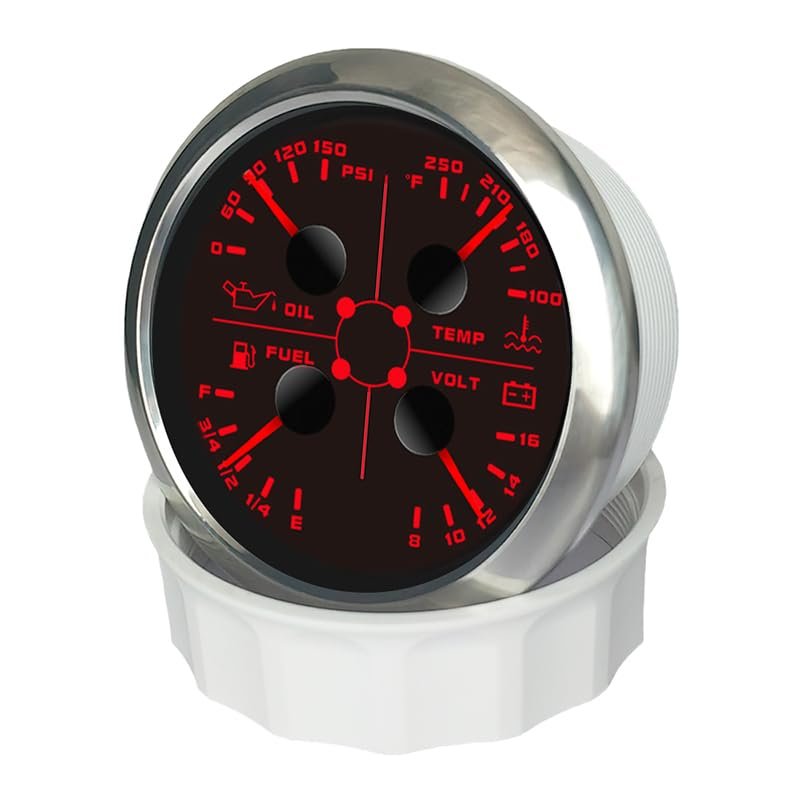

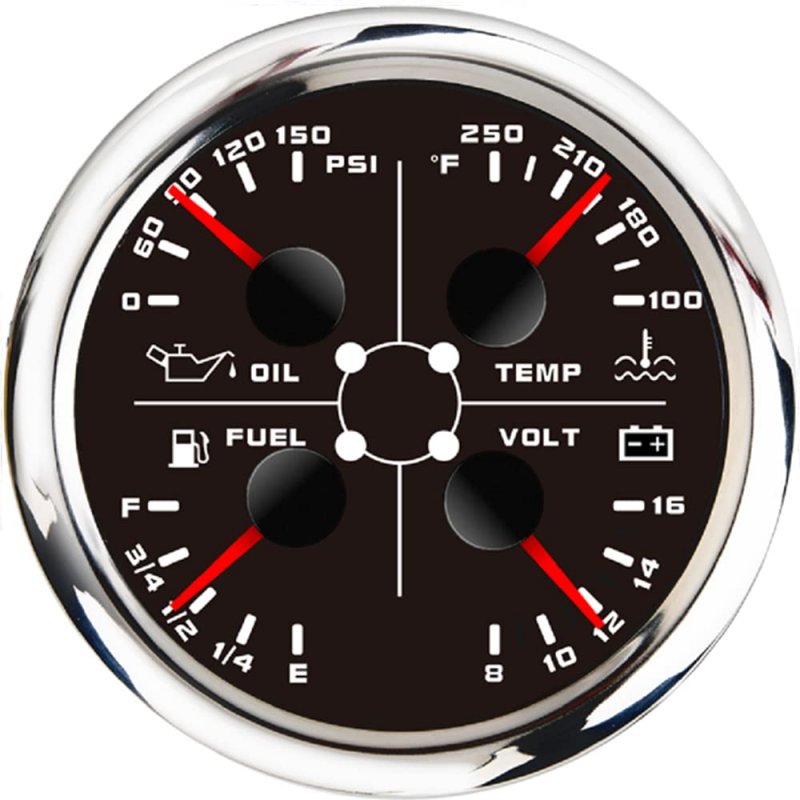

Installation Dimension: 85mm. Indicating range: Oil pressure: 0-150PSI, Water temperature: 100-250, Fuel level: E-1/2-F, Voltmeter: 8-16V. Input Signal: 10-184ohm for oil pressure meter; 301-22ohm for water temperature meter; 0-190ohm/240-33ohm for fuel level meter; 8-16V voltage meter. Alarm: Fuel Level < 1/8; oil pressure < 11.60 PSI ; Water temperature> 203; Voltage < 11.5V. Connection: Black--Ground(-); Red--12VDC(+); Blue--Fuel Level; Yellow--Backlight(+); White--Water Temperature; Grown--Oil Pressure; Green--Signal parameters.
