Description:

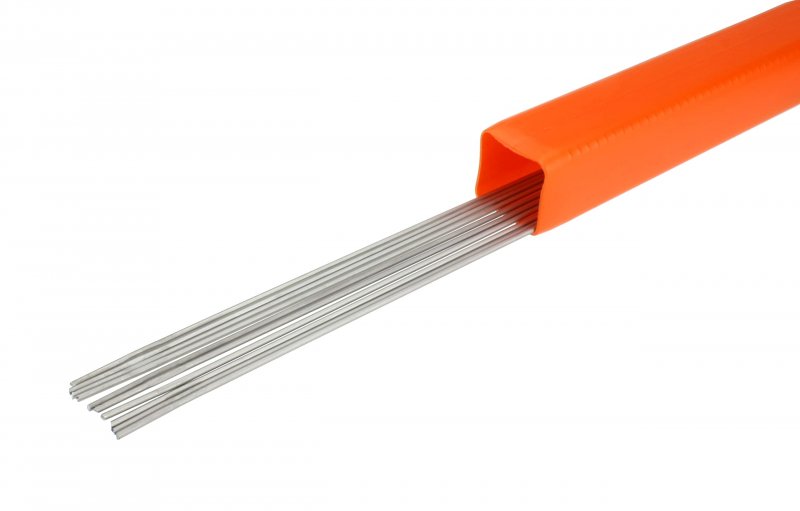

The ERTi 2 Titanium TIG Welding Rod Grade 2 is a filler metal designed for welding titanium grades 1, 2, 3, and 4. It provides an affordable and available solution for industrial corrosion resistance applications.

• Material Titanium
• Grade ERTi 2
• Size 3/32 inch
• Quantity 10 Rods
• Color Silver
• Compliance Standards AWS A 5.16 ERTi 2, EN ISO 24034 STi 0120 Ti 99 6, and DIN 1737 SG Ti 2
• Common Applications Anode substrates for chlorine and sodium chlorate production, pressure vessels, columns, tanks, heat exchangers, shafts, blowers, fans, condenser tubing, valves, fittings, and pipes

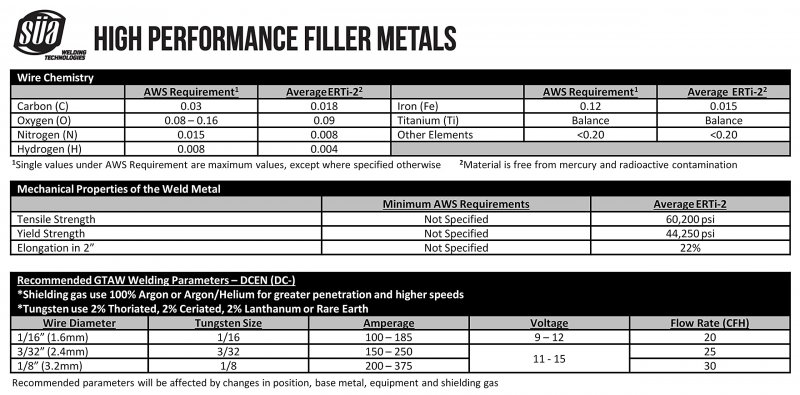

• Welding Parameters DCEN DC minus
• Shielding Gas 100 percent Argon or Argon Helium for higher speeds and greater penetration
• Recommended Tungsten 2 percent Thoriated, 2 percent Ceriated, 2 percent Lanthanum or Rare Earth
• Packaging Shipped in a reusable plastic container with a cap for safe storage and transport

Welding Instructions

• Cleaning Grind or file away mill scale. Remove surface oxides with pickling paste or 35 percent nitric 5 percent hydrofluoric acid solution at room temperature. Use nonchlorinated degreasing solvent, methanol acetone, or methyl ethyl ketone to remove grease and oil
• Fitup Clamp joints where possible
• Equipment Constant current power source DCEN for GTAW with a contactor for arc start and stop, high frequency starter for manual welding, water cooled GTA torch with gas lens and 1/4 inch number 12 gas cup
• Atmospheric Protection Molten weld metal must be protected by holding shielding gas over the weld zone until it cools down to 600 degrees F to prevent embrittlement by oxygen, nitrogen and hydrogen
