Htge-1 Transformer Ground Clamp Two Way Basket Plain Finish 10 Sol To 1 Str Copper Conductor Range 102 0 332 In Wire Diameter

Htge-1 Transformer Ground Clamp Two Way Basket Plain Finish 10 Sol To 1 Str Copper Conductor Range 102 0 332 In Wire Diameter

$32.49 USD

OUT OF STOCK

Description:

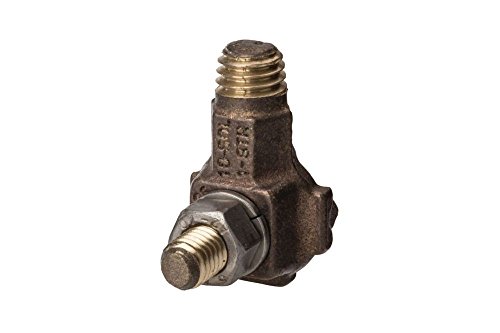

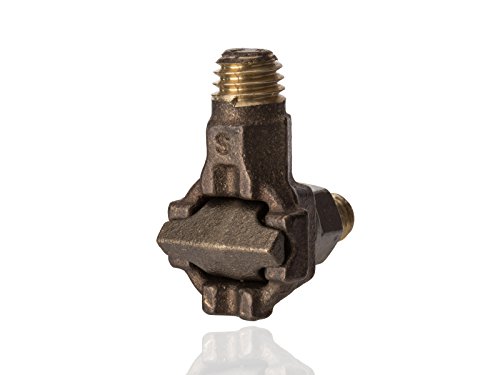

The HTGE 1 Transformer Ground Clamp is a two way basket clamp designed for secure and high conductivity grounding of transformer tanks.

Copper Conductor Range 10 sol to 1 str
Wire Diameter 0.102 to 0.332 inches
Dimensions 1 31 32 inches length, 1 1 8 inches width, and 1 3 4 inches height
Body Material High conductivity cast copper alloy
Eyebolts Cast high strength bronze
Hardware Stainless steel nuts and lockwashers included
Finish Plain finish
Design Features Flat surface acts as a seal to the tank
Installation Body can be tightened using a wrench
