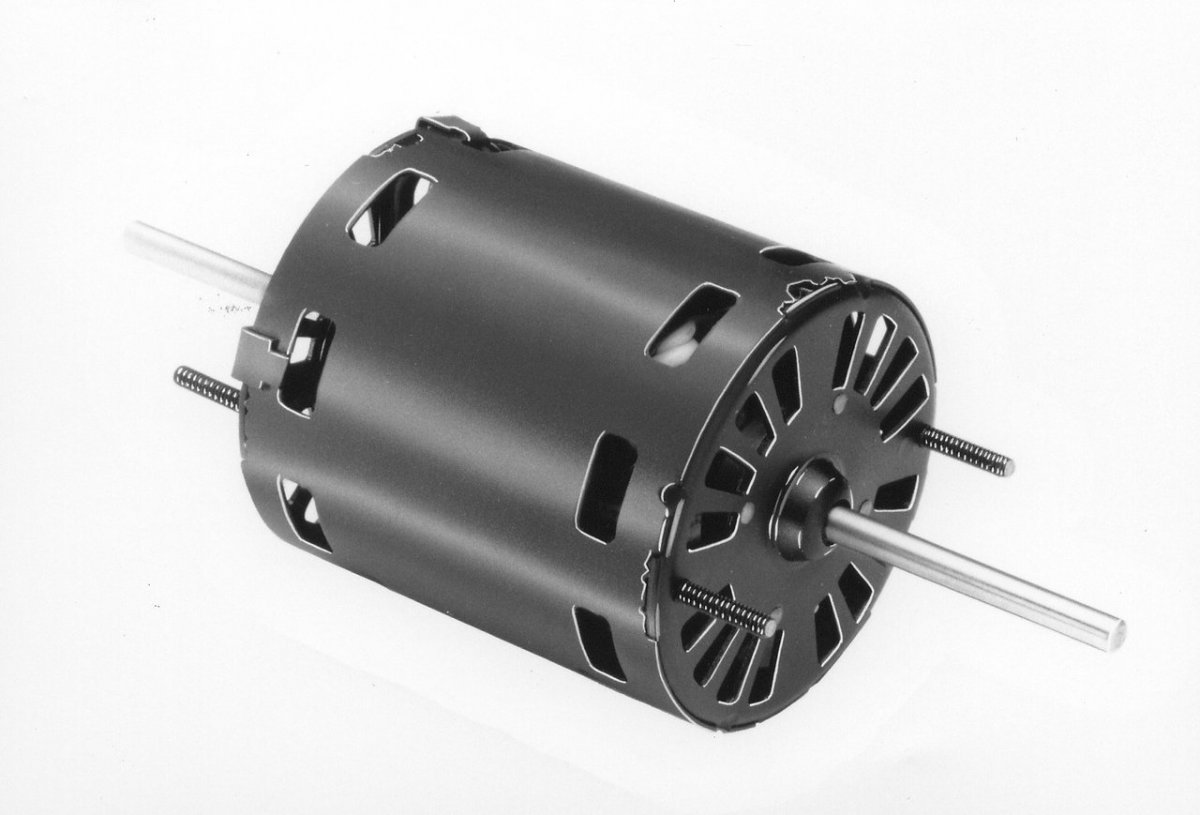

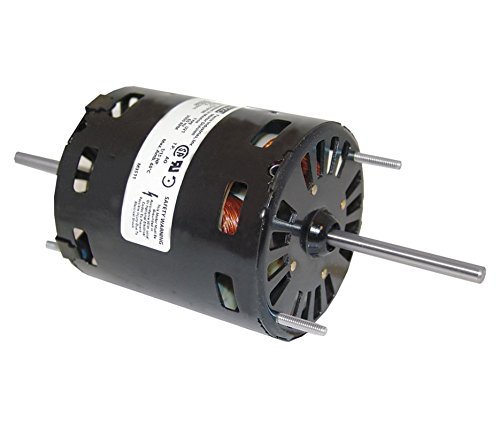

HVAC Motor, Shaded Pole, Open Dripproof, Continuous, 1/15 HP, 3000 Nameplate RPM, 230 Voltage, 3. 3 Frame, Service Factor 1. 0, Full Load Amps 1. 0, 60 Hz, Rotation CWLE, Insulation Class A, Max. Ambient Temp. 40 Degrees C, Number of Speeds 1, Mounting Stud, Sleeve Bearings, Thermal Protection Auto, Body Dia. 3. 3 In. , Shaft Dia. 1/4 In. , Shaft Length 2-1/2 In. , 3-13/16 In. , 2/BE, 2-7/8 x 2-7/8 In. , 1, Flat, HVAC/R, 2-7/8 x 2-7/8 Features: Price For: Each Body Dia. : 3. 3" Motor Shaft Design: Flat Hz: 60 Motor Service Factor: 1. 00 Frame: 3. 3 Phase: 1 Max. Ambient Temp. : 40 Degrees C Motor Sub Application: Direct Dr Fan/Blower Application: HVAC/R Motor Application: HVAC/R Motor Enclosure Design: Open Dripproof Item: HVAC Motor HP: 1/15 Motor Thermal Protection: Auto Motor Design: Shaded Pole Duty: Continuous Stud/Base Mtg. Pattern: 2-7/8 x 2-7/8" Length Less Shaft: 3-13/16" Shaft Dia. : 1/4" RPM Range: 1801-3000 Mounting Pattern: 2-7/8 x 2-7/8 Voltage Compatibility: 230, 240, 115/230, 120/240 Voltage: 230 Mounting Stud Location: 2/Both Ends Shaft Length: 2-1/2" Ins. Class: A Nameplate RPM: 3000 Motor Bearings: Sleeve Full Load Amps: 1. 0 Motor Shaft Rotation: CWLE Motor Mounting Type: Stud No. of Speeds: 1 Country of Origin (subject to change): Mexico.
