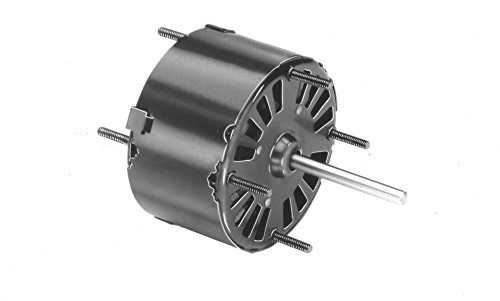

HVAC Motor, Shaded Pole, Open Dripproof, Continuous, 1/20 HP, 1500 Nameplate RPM, 230 Voltage, 3. 3 Frame, Service Factor 1. 0, Full Load Amps 0. 90, 60 Hz, Rotation CWSE, Insulation Class B, Max. Ambient Temp. 40 Degrees C, Number of Speeds 1, Mounting Stud, Sleeve Bearings, Thermal Protection Auto, Body Dia. 3. 3 In. , Shaft Dia. 5/16 In. , Shaft Length 2-1/4 In. , 2-7/8 In. , 4/BE, 2-7/8 x 2-7/8 In. , 1, Flat, HVAC/R, 2-7/8 x 2-7/8 Model # D188 Features: Price For: Each Body Dia. : 3. 3" Motor Shaft Design: Flat Motor Service Factor: 1. 00 Frame: 3. 3 Phase: 1 Ins. Class: B No. of Speeds: 1 Max. Ambient Temp. : 40 Degrees C Motor Sub Application: Direct Dr Fan/Blower Motor Application: HVAC/R Item: HVAC Motor Motor Thermal Protection: Auto Motor Design: Shaded Pole Shaft Dia. : 5/16" Duty: Continuous Voltage Compatibility: 230, 240, 115/230, 120/240 Motor Bearings: Sleeve HP: 1/20 Motor Shaft Rotation: CWSE Full Load Amps: 0. 90 Motor Enclosure Design: Open Dripproof Application: HVAC/R Motor Mounting Type: Stud Stud/Base Mtg. Pattern: 2-7/8 x 2-7/8" Length Less Shaft: 2-7/8" Mounting Pattern: 2-7/8 x 2-7/8 Voltage: 230 Shaft Length: 2-1/4" Hz: 60 Mounting Stud Location: 4/Both Ends Nameplate RPM: 1500 Country of Origin (subject to change): Mexico.
