Description:

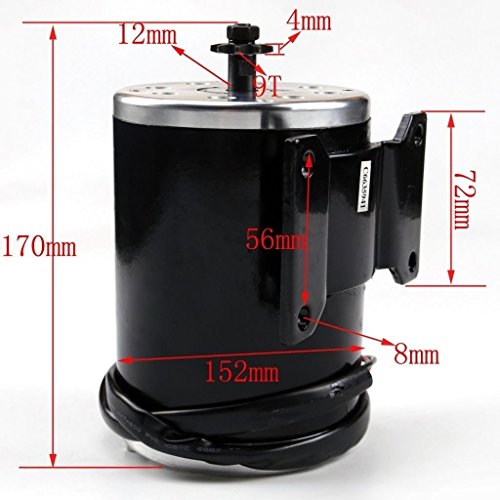

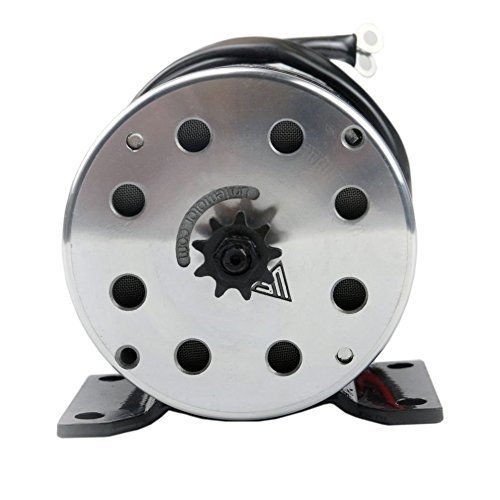

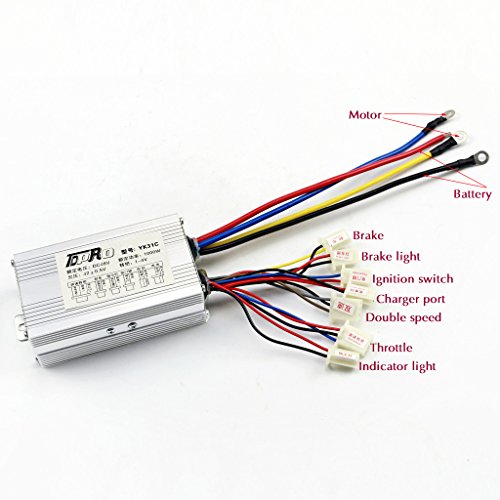

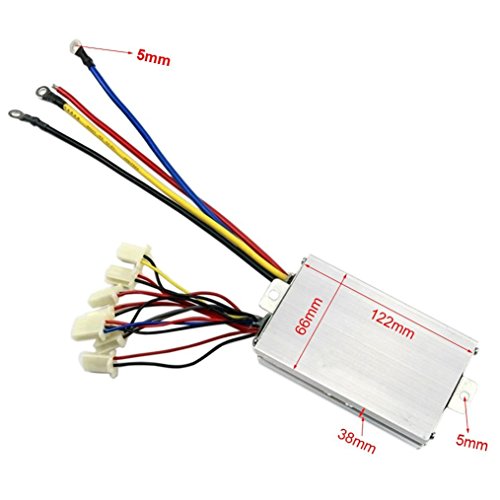

Specifications: Motor: Output: 1000W Rated speed: 3000-3360 RPM Rated voltage: 48V DC Rated current: 26. 7A No-load current: 2. 8A Peak efficiency at 48V: 80 percent Reversible: (w/ polarity swap) Sprocketfor 8mm T8F chain Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motors power wires. Controller: Rated voltage: 48V DC Match motor: 48V 1000 W Conversion efficency: 95% Under Voltage Protection: 420. 5V Speed regulator (throttle): 1-4 V Controller Wiring: This controller has 9 connectors, compatible with many 48V bikes with up to 1000W motors 1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle) / 9. Double speed These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications. Model # USATD010+USATD036 Features: This is a set of reliable universal 48VDC 1000w brushed electric motor & controller Rated speed: 3000 RPM, SprocketFor 8mm T8F chain Suitable for go karts, scooters, e-bike, atv, motorized bicycle, moped, mini bikes, pocket bikes and electric dirt bikes Refer to picture and below "Product Description" for wiring instruction and specifications Package includes: 1x Motor + 1x Controller.
