Description:

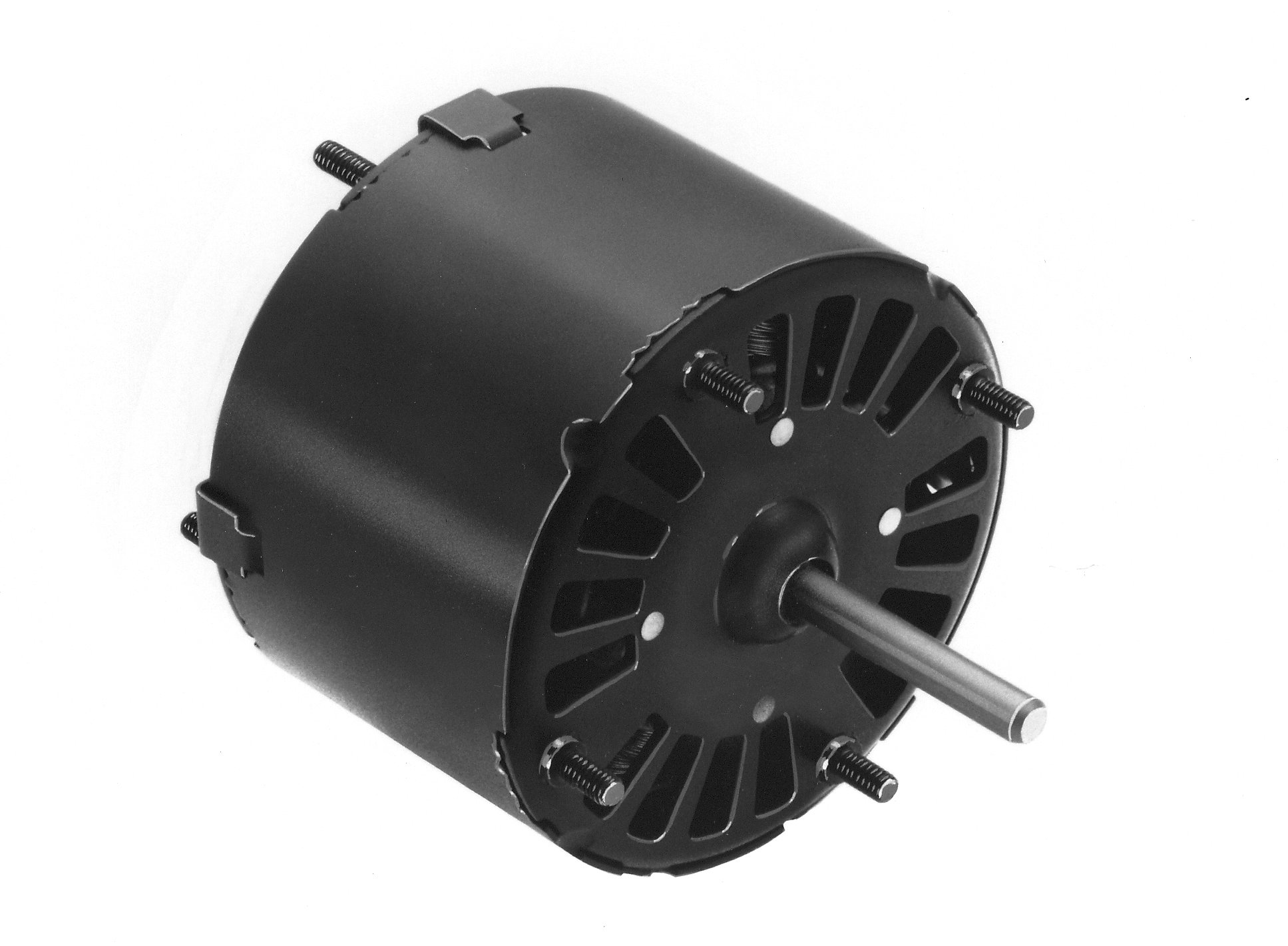

Motor Type: Shaded Pole RPM: 1500 HP: 1/50 - 1/65 - 1/80 Volts: 115 Amps: 1. 1-. 8-. 6 Hz: 60 Phase: Single Phase Thermal Protection: Automatic Speeds: 3 Rotation: CW Shaft End Bearings: Sleeve Enclosure Type: Open Air Over (OAO) Frame Size: 3. 3" Frame Motor Diameter (In. ): 3. 3 Motor Length (In. ): 2 1/4 Shaft (In. ): 1/4 X 1 3/4 Bolt Circle (In. ): 2-27/32 (2. 85) OEM Replacement for West Bend/McGraw Edison Portable Humidifier Motors1/50 hp 1300 RPM, 3-Speed, 1. 1 Amps, 115 Volts 60 hz. Shaft: 1/4" x 1 3/4" Rotation = ClockwiseStud Mount - Bolt Circle - 2.
