Description:

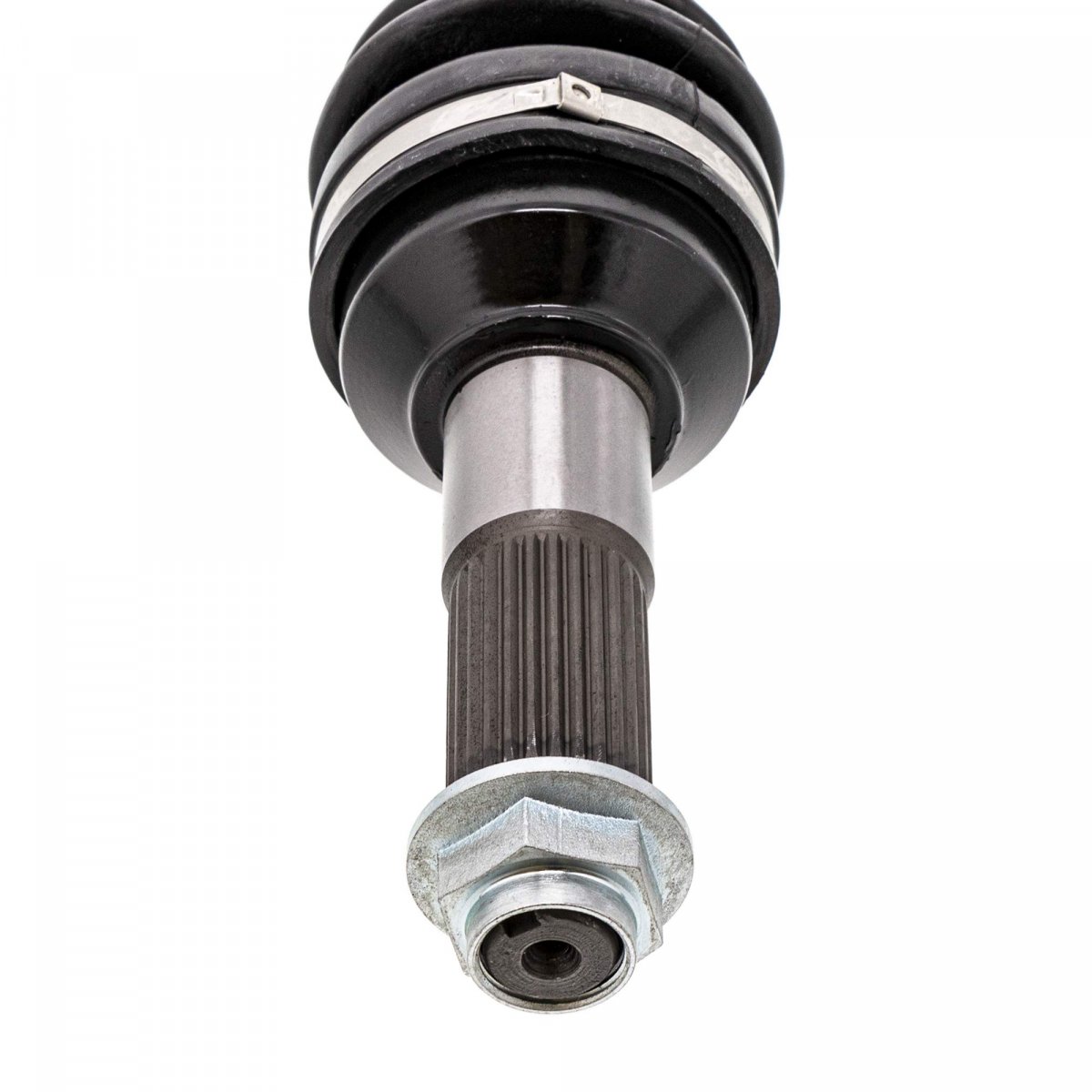

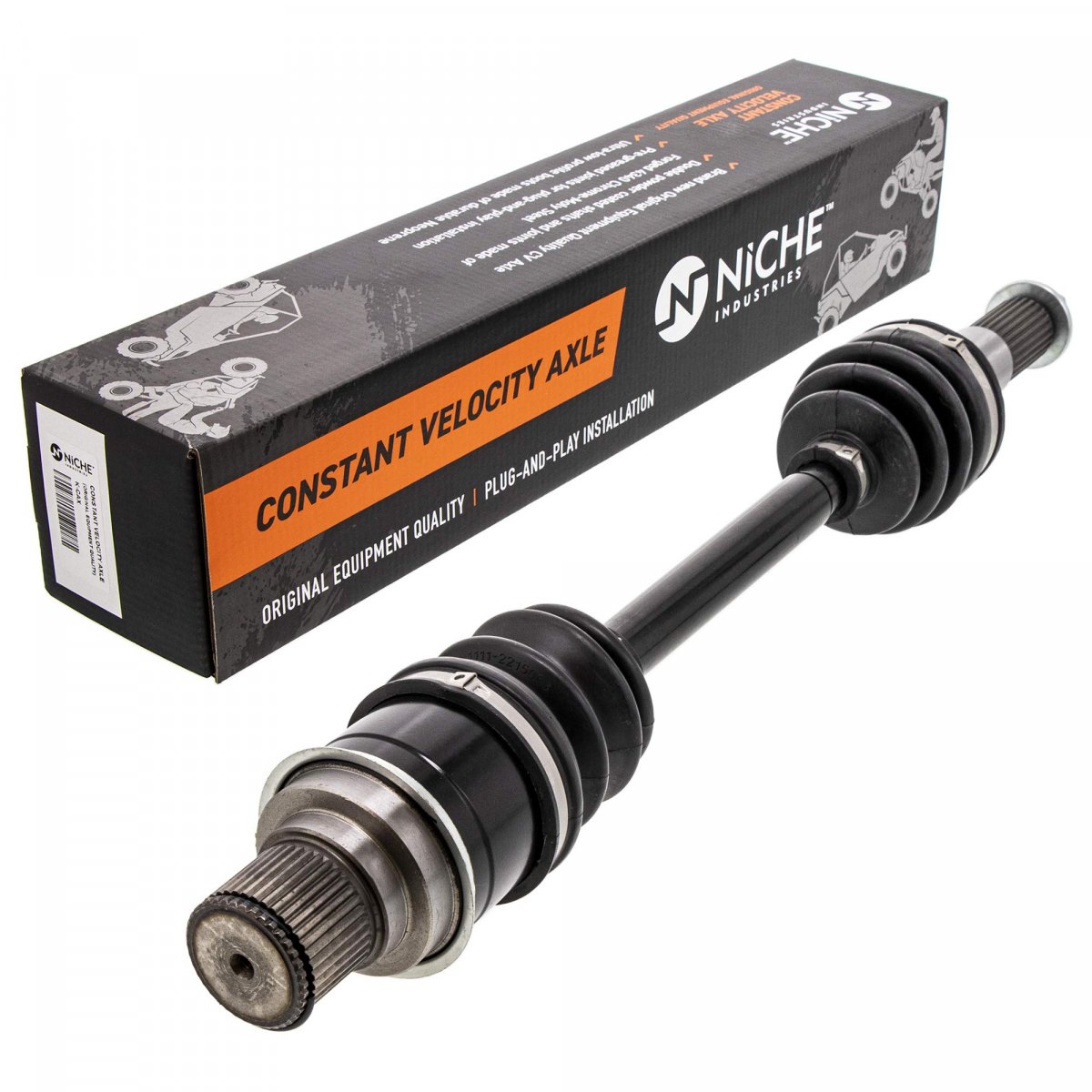

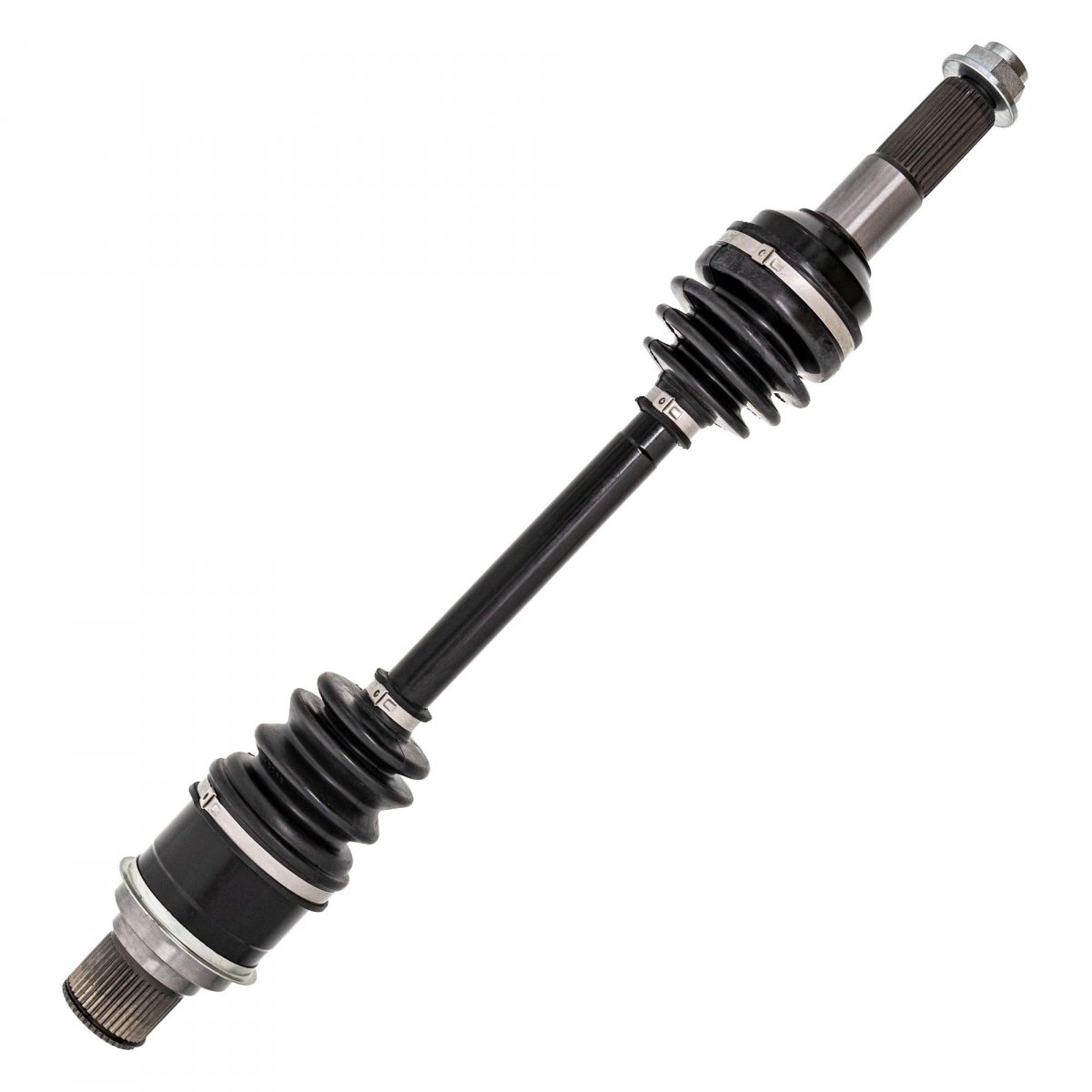

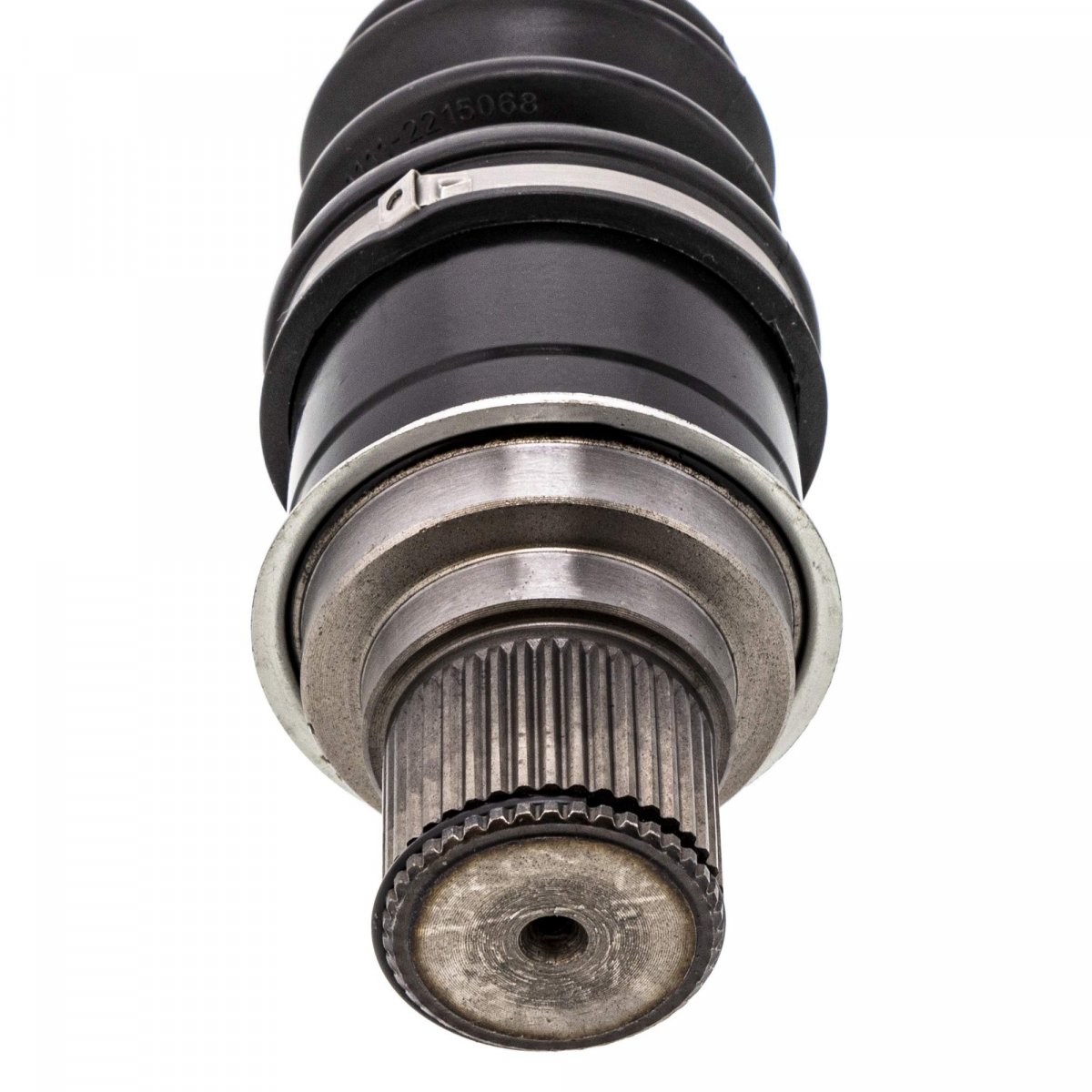

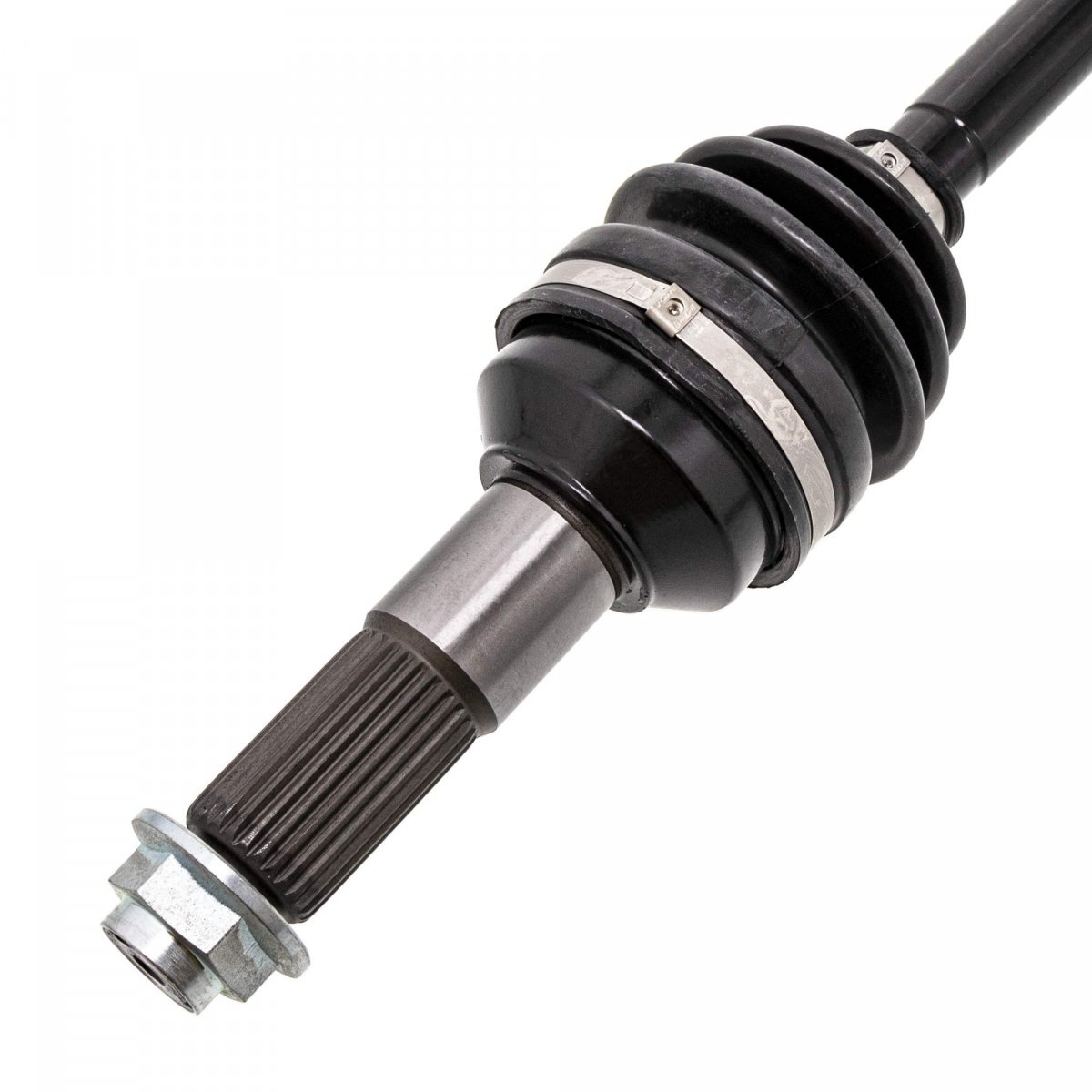

Ball Joint Set Replaces OEM Part Numbers: Yamaha 1D9-F510F-00-00, 4S2-2530U-00-00. Double Off Set Joint Replaces OEM Part Numbers: Yamaha 1D9-F510J-01-00, 4S1-2530V-00-00. Compatible with: Yamaha 2007-2008 Grizzly 350, 2007-2008 Grizzly 400, 2007-2008 Grizzly 450, 2005-2006 Kodiak 400, 2005-2006 Kodiak 450. Replacement CV Axle Assembly. Length: 20 3/16, Inboard Splines: 39T, Inboard Spline Diameter: 2 9/16, Outboard Splines: 27T, Outboard Spline Diameter: 2 7/16, Shaft Diameter: 3/4, Thread Measurement: M20x1.5.
