Description:

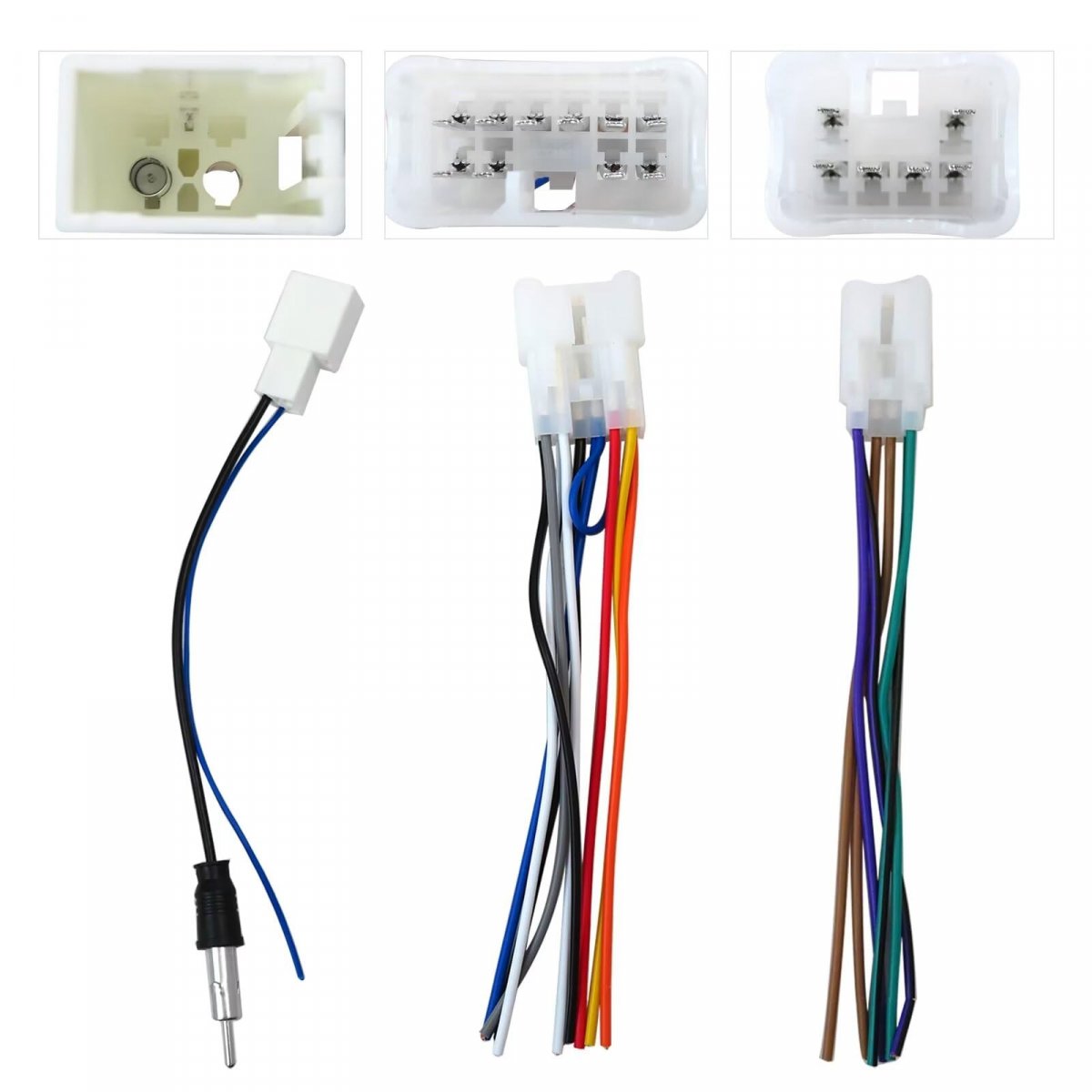

This Radio Wire Harness and Antenna Adapter kit allows for the easy installation of aftermarket stereos in select 1987 to 2007 Toyota and Scion vehicles. It enables a plug and play connection to restore AM FM radio receiver functions without cutting factory wiring.

• Fitment Select 1987 to 2007 Toyota and Scion vehicles
• Compatibility Designed for Toyota Hiace 1989 to 2018
• Installation Plug and Play design connects directly to vehicle factory stereo antenna cable
• Wiring Configuration Includes one 10 pin plug and one 6 pin plug
• Functionality Supports Power and 4 Speaker output
• Restriction Not compatible with cars featuring factory amplifiers
• Package Contents 1 x 10Pin Radio Wire Harness, 1 x 6Pin Radio Wire Harness, 1 x Car Radio Antenna Adapter

Wire Diagram

• Orange Button light 12V positive
• Yellow B 12V positive
• Red ACC 12V positive
• Black Ground wire negative
• Blue Antenna control
• White Front left speaker
• White with black Left front speaker negative
• Gray Front right speaker
• Gray with black Right front speaker negative
• Green Left rear speaker positive
• Green with black Left rear speaker negative
• Purple Right rear speaker
• Purple with black Right rear speaker negative
