Description:

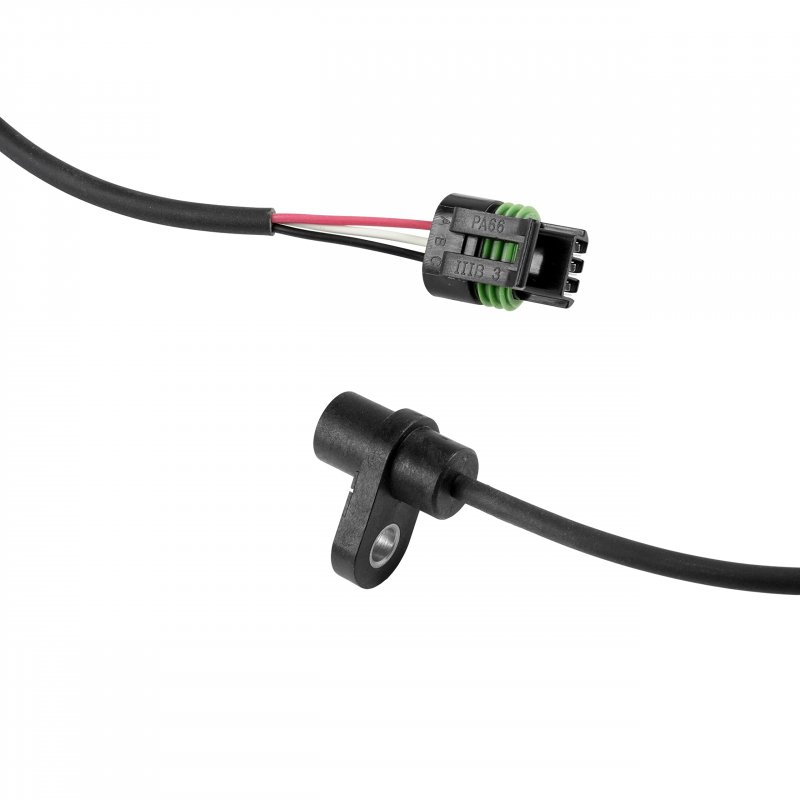

This Hall Effect Speedometer Sensor provides precise proximity detection for a wide range of Polaris vehicles to ensure accurate speed readings. It is designed as a direct replacement part to restore proper speedometer functionality.
Product Specifications

• Part Number 4010298
• Model Number 4010304
• Output Type Push Pull
• Mounting Type Flange Mount
• Measurement Accuracy plus or minus 1.5 percent
• Material Electronic Sensor Materials including Silicon Metals and Plastics

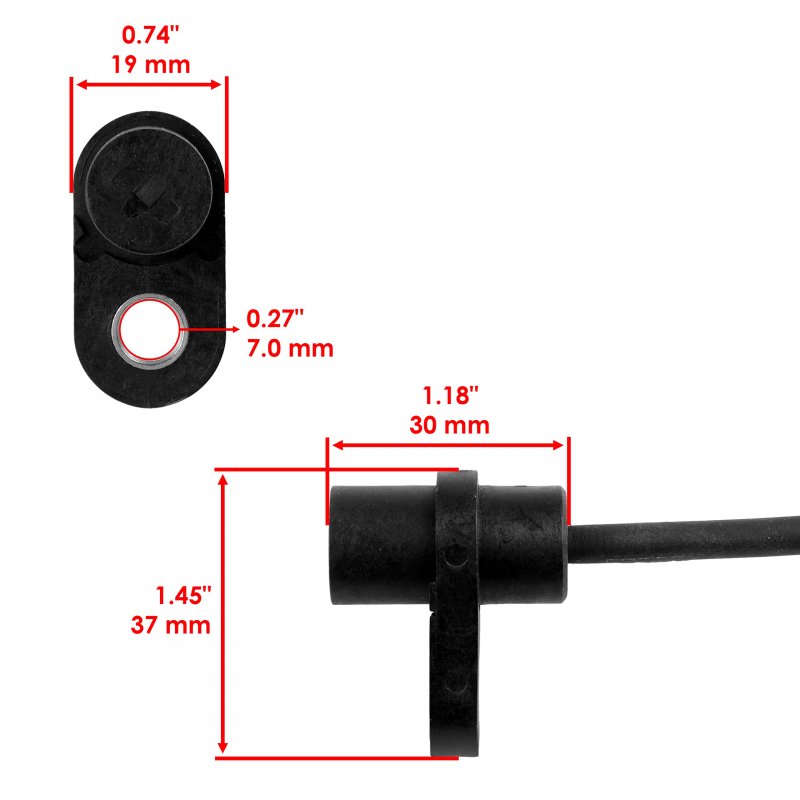

Dimensions

• Length 30.4 mm or 1.2 in
• Width 19 mm or 0.7 in
• Height 37 mm or 1.5 in
• Thread Diameter 11.6 mm

Vehicle Compatibility

• ATP 330 4X4 2004 to 2005
• ATP 500 4X4 HO 2004 to 2005
• Magnum 325 2X4 4X4 2000 to 2002
• Magnum 330 2X4 4X4 2003 to 2006
• Magnum RMK500 2002
• Ranger 700 4X4 6X6 2007 to 2009
• Sportsman 335 2000
• Sportsman 400 2001 to 2005
• Sportsman 450 2006 to 2007
• Sportsman 500 2000 to 2007
• Sportsman 500 4x4 HO 2001 to 2010
• Sportsman 500 4X4 RSE 2000
• Sportsman 500 Duse 2001
• Sportsman 500 HO Military 2009
• Sportsman 600 2003 to 2005
• Sportsman 6X6 2000 to 2008
• Sportsman 700 2002 to 2006
• Sportsman 800 EFI 2005 to 2010
• Sportsman MV 7 2005 to 2007
• Trail Boss 330 2005
• Worker 500 2001
• Xpedition 425 2000 to 2002
• Xplorer 400 2000
