Description:

This set of 2 square double face LED pedestal lights provides high visibility stop, turn, tail, and parking functions for trucks, trailers, RVs, and buses. These clear lens fender mount lights ensure street legal safety with DOT and SAE compliance.

• Light Configuration: 39 total LEDs including 18 Amber LEDs, 18 Red LEDs, and 3 Amber Side Marker LEDs
• Functions: Red side for stop, turn, and tail light. Amber side for parking and rear turn signal. Built in amber side marker with reflex reflector

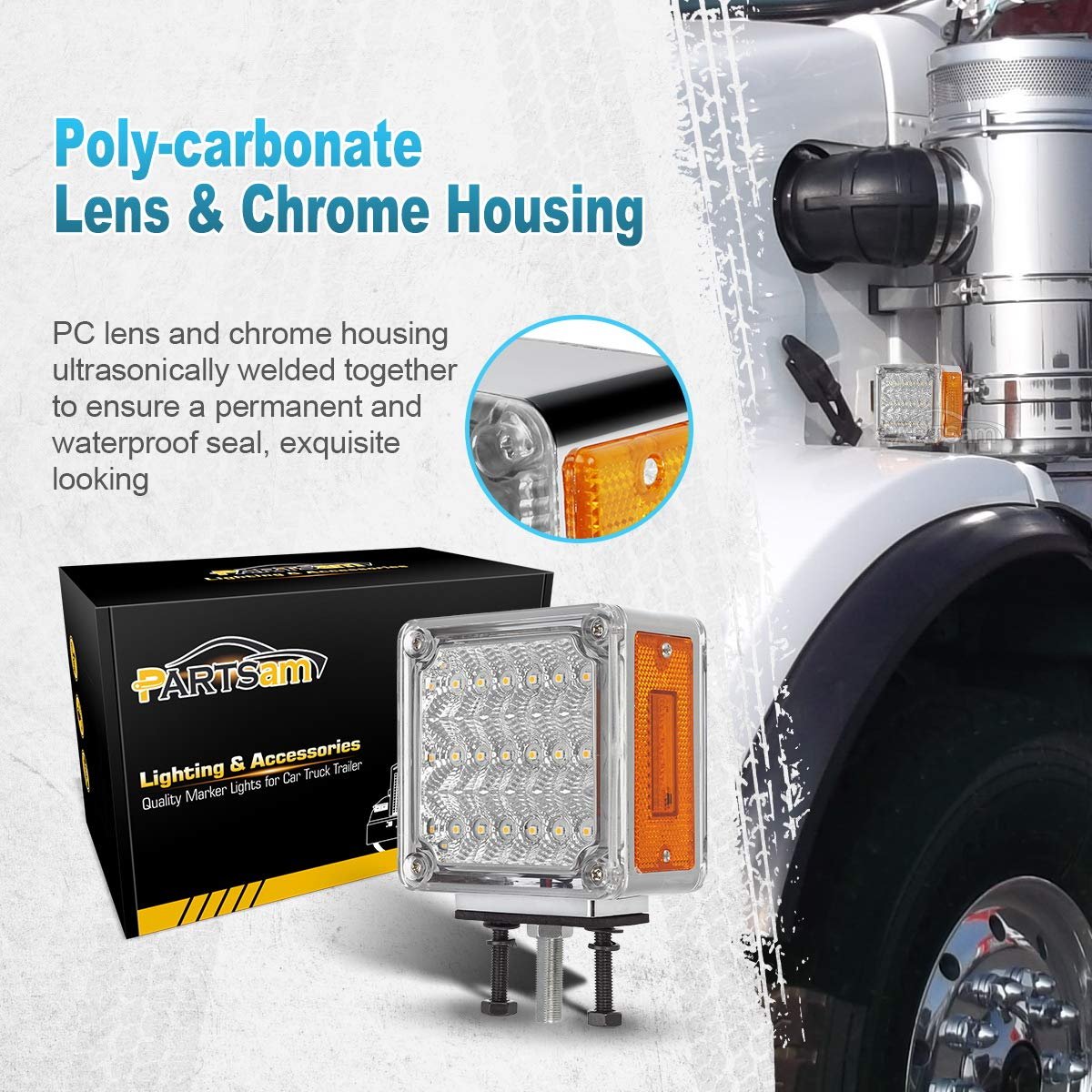

• Lens Material: Sealed high impact Polycarbonate clear lens
• Housing: Heavy duty Chrome Plated housing with Miro Reflex faceted reflector design
• Mounting: Universal stud mount with interchangeable single or double studs. Multi directional design allows installation at 90 or 180 degrees in upward, upside down, or sideway positions
• Voltage Range: Operates within 9 to 14.8 VDC range
• Dimensions: 4.53 inches x 4.53 inches x 2.36 inches
• Wiring Guide: White wire is negative. White and Black wires provide full light at 50 percent low brightness. White and Red wires provide back and front light at 100 percent high brightness
• Lifespan: Over 50,000 hours
• Compatibility: Fits Freightliner Cascadia Century Classic Columbia Coronado FL70 FLD112 FLD120 M2, K100 T2000 T300 T600 T660 T680 T700 T800 W900, Peterbilt 330 335 367 377 378 379 386 387 389 579 587, International 4300 4700 9200 9300 9400 9670 9900 Paystar 5900 Prostar TranStar 8500 8600 Workstar 7600 7700, Mack CH Granite R600 R700 RD Vision, and universal fit for other trucks, towing trailers, RVs, and buses
• Compliance: DOT compliant and meets SAE standards
