Description:

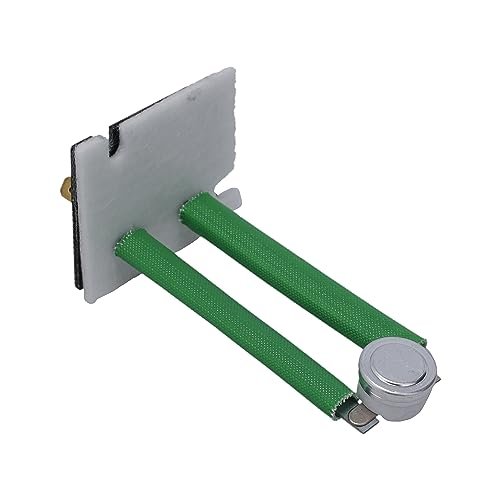

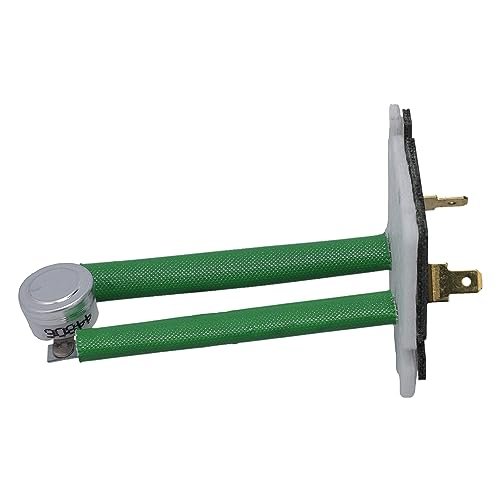

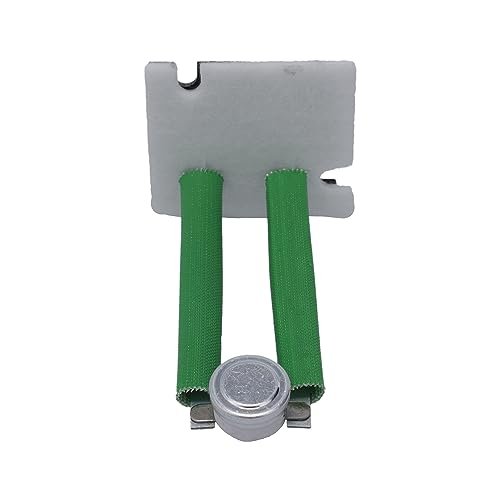

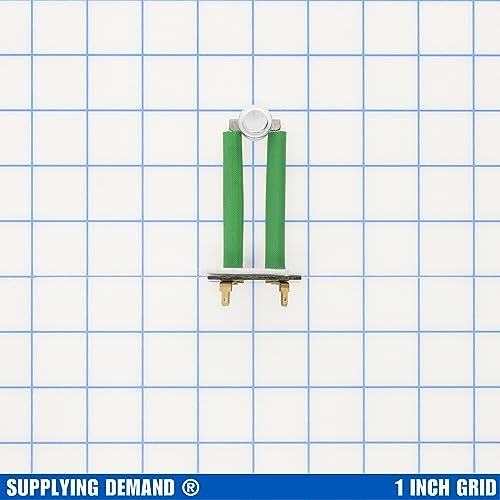

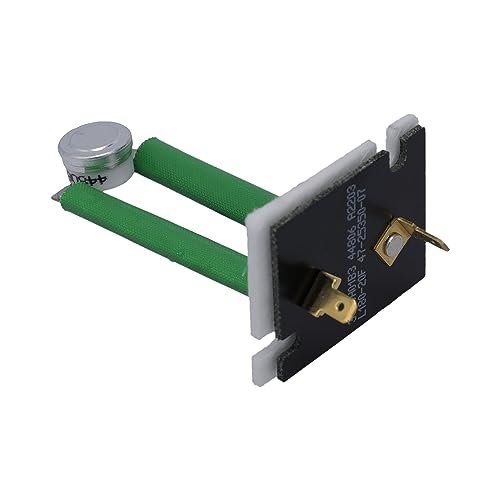

Category: General purpose Close temperature (F): 160 Color code: Green/Green Connections: 1/4 Inch quick connects Contact orientation: Normally closed Disc face: Enclosed. Maximum current rating (A): 15/10 Maximum voltage rating (VAC): 120/230 Mounting board dimensions (in.): 1-3/4 x 1-9/16 Mounting insertion depth - maximum (in.): 3 Mounting: Board mount - 60 degree strap angle Number of Poles: 1. Nominal temperature difference (F): 20 Open temperature (F): 180 Reset mode: Auto Switch type: SPST TOD switch series: 36T Tolerance close temperature (F): +/-7 Tolerance open temperature (F): +/-5. Heating, ventilation, air conditioning or refrigeration parts and accessories should only be installed by qualified technicians.. Supplying Demand replacement parts are compatible with Major Brands, but you should always verify fitment with your specific model. We have included a video in the product gallery to help you find your model number and information in the description below. SD products come in Supplying Demand packaging..
