Description:

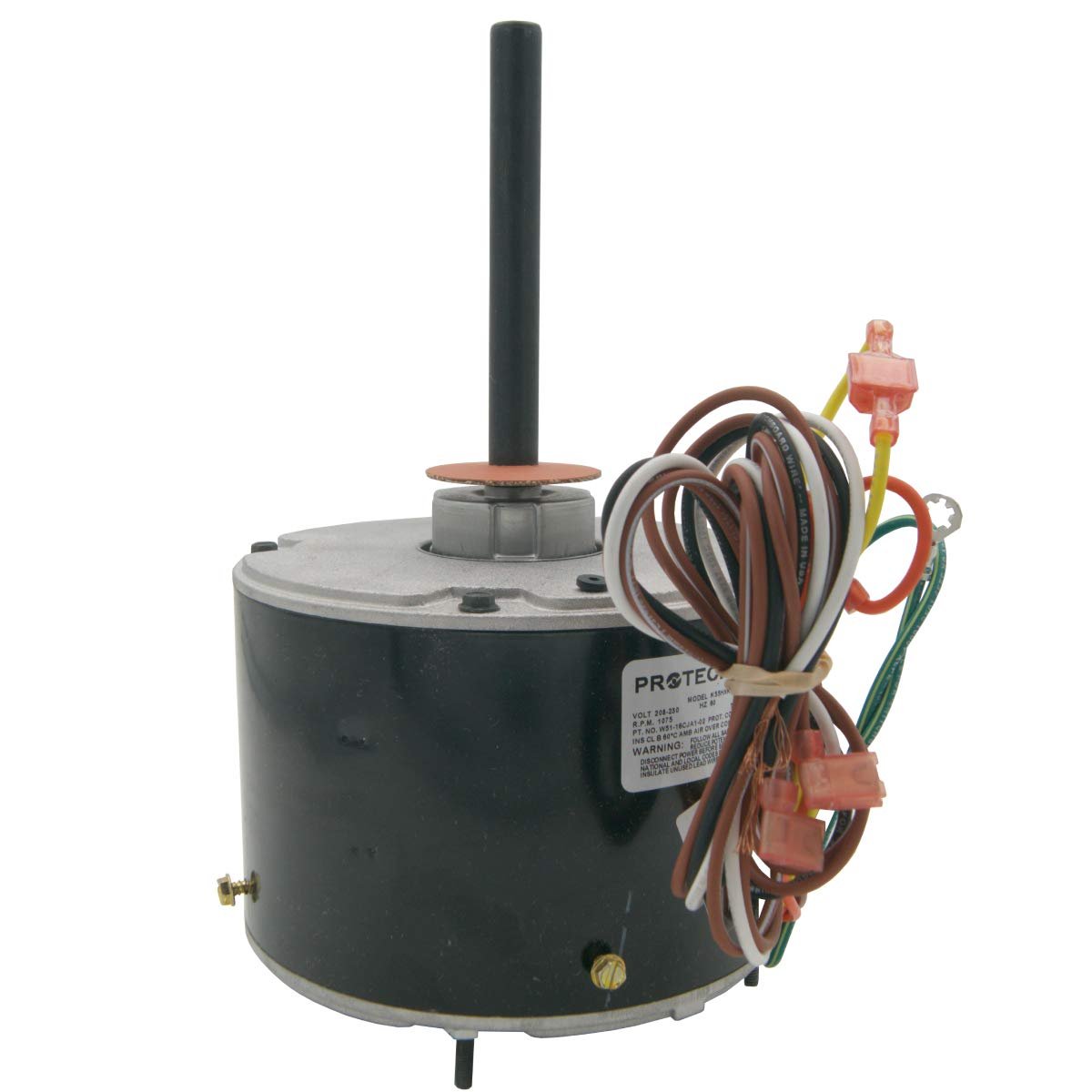

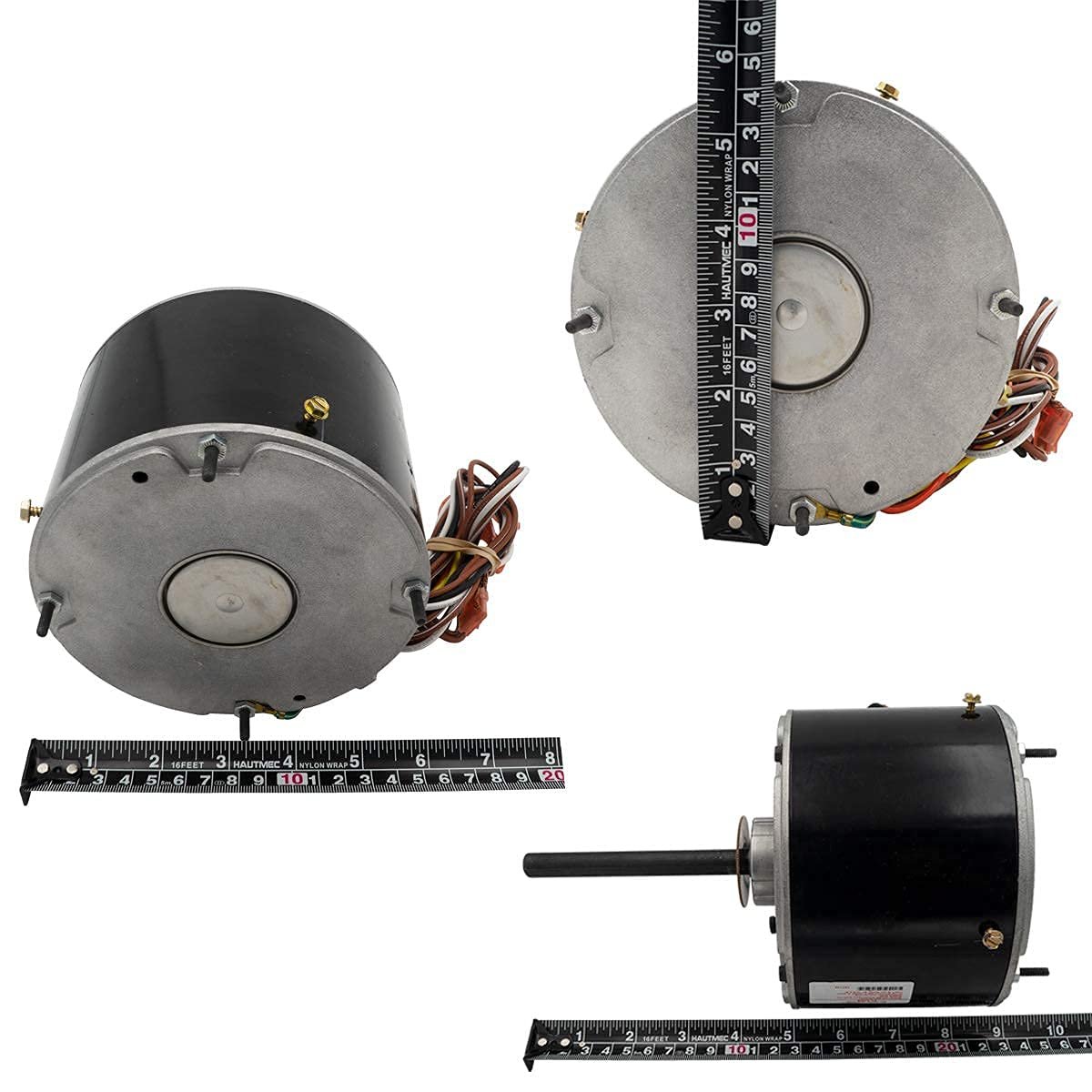

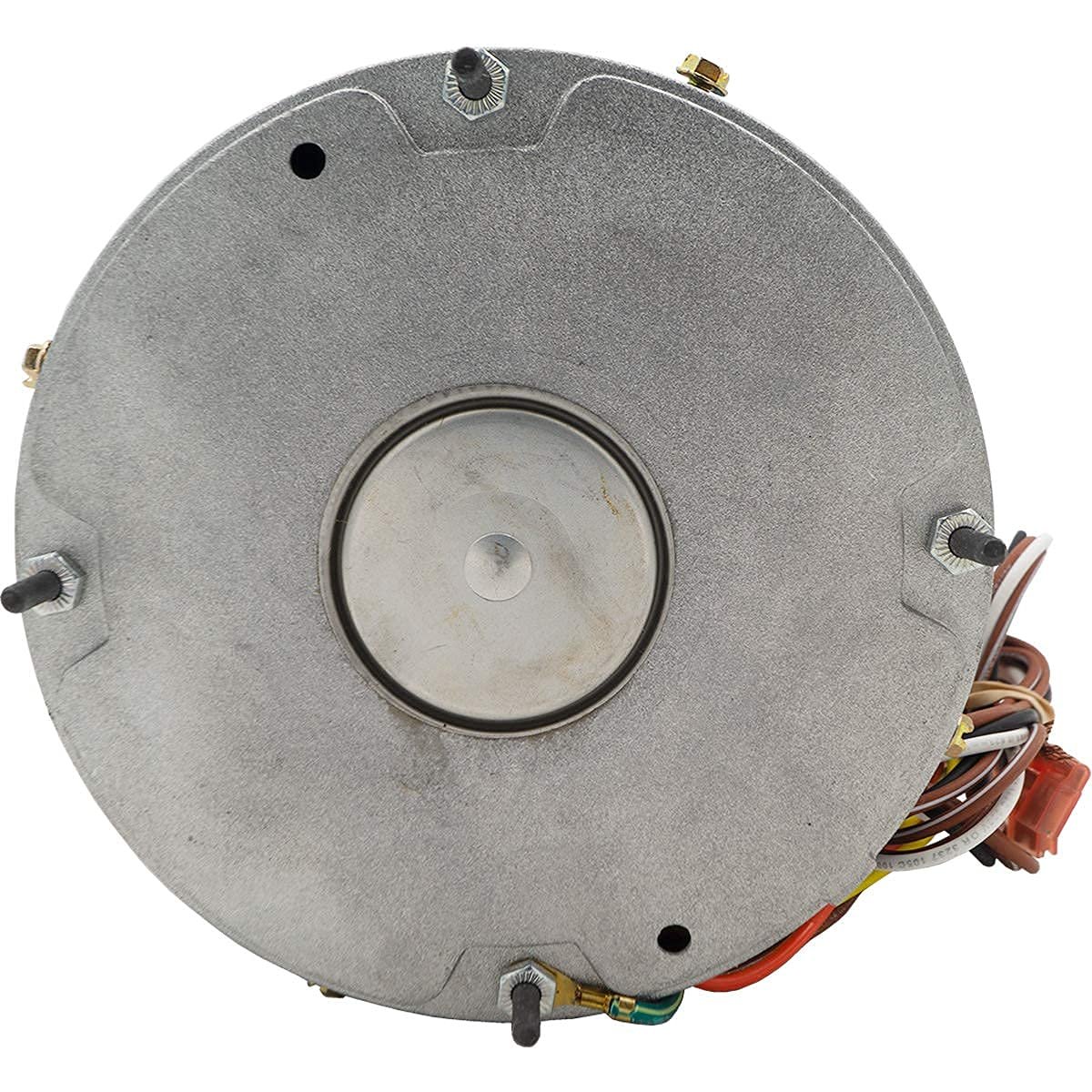

Make sure to match up your H/P needed otherwise installing a lower H/P motor will cause it to overheat and not work properly Motor comes with a single run capacitor It is recommended to replace the capacitor when installing the new motor. HVAC replacement motors manufactured under strict quality standards at one of the world's largest and most modern motor production facilities. Every motor undergoes a variety of stringent tests before it leaves the assembly line.. Application: Condenser Bearing type: Sleeve Drive type: Direct drive FLA at 208V (A): 1.20 FLA at 230V (A): 1.20 Frame size: 48 Frequency (Hz): 60 High speed (RPM): 1075 HP: 1/6 Input voltage (V): 208/230 Keyed/Flat shaft length (inch): 4 Motor body diameter (inch): 5-5/8 Motor body length (inch): 4-1/16 Mounting: Shell-band, shell-screw, thru-bolt Number of phases: 1 Number of speeds: 1 Overall motor length (inch): 9-1/16 Overall shaft length (inch): 5 Rotati. Heating, ventilation, air conditioning or refrigeration parts and accessories should only be installed by qualified technicians.. Supplying Demand replacement parts are compatible with Major Brands, but you should always verify fitment with your specific model. We have included a video in the product gallery to help you find your model number and information in the description below..
