Description:

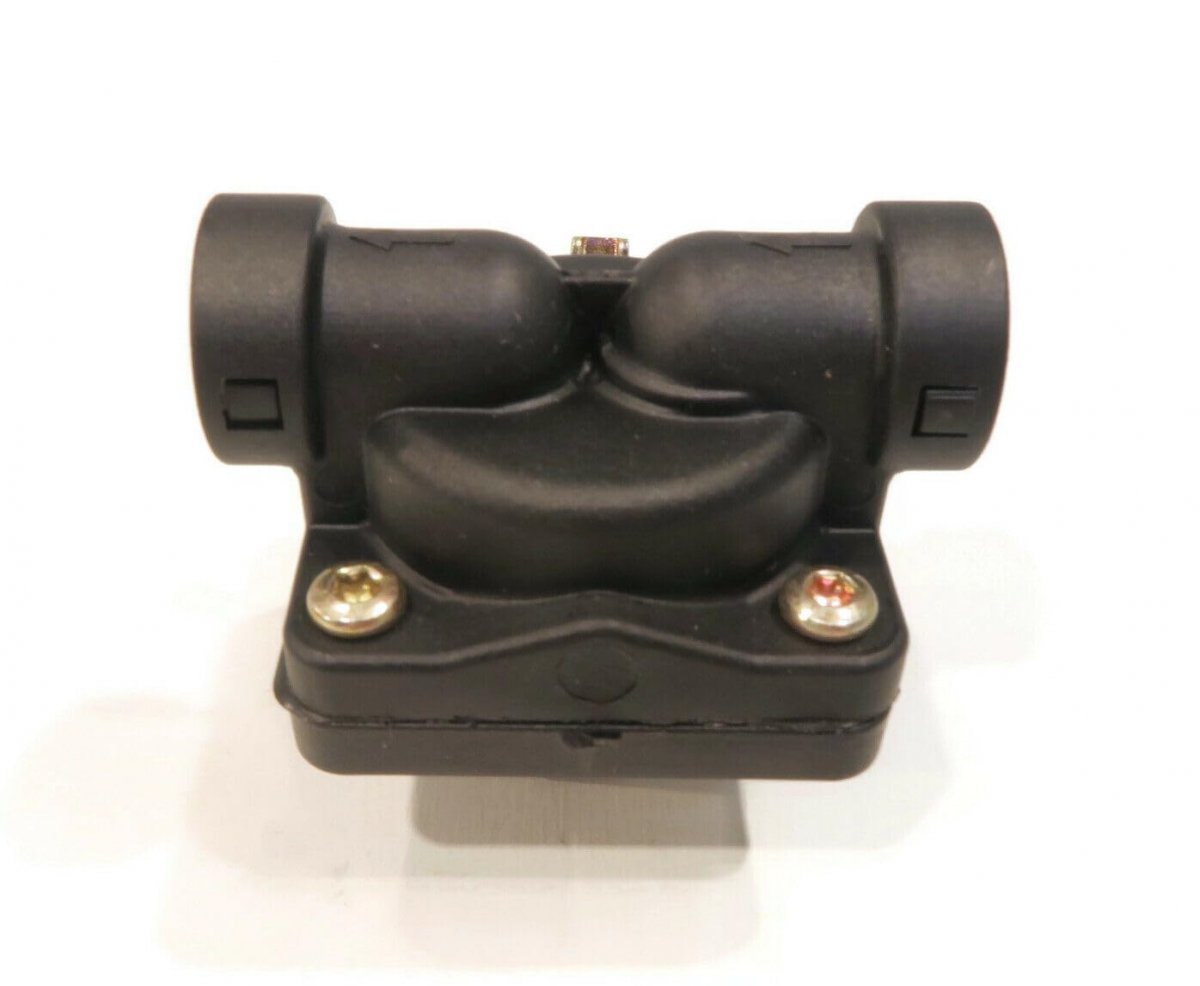

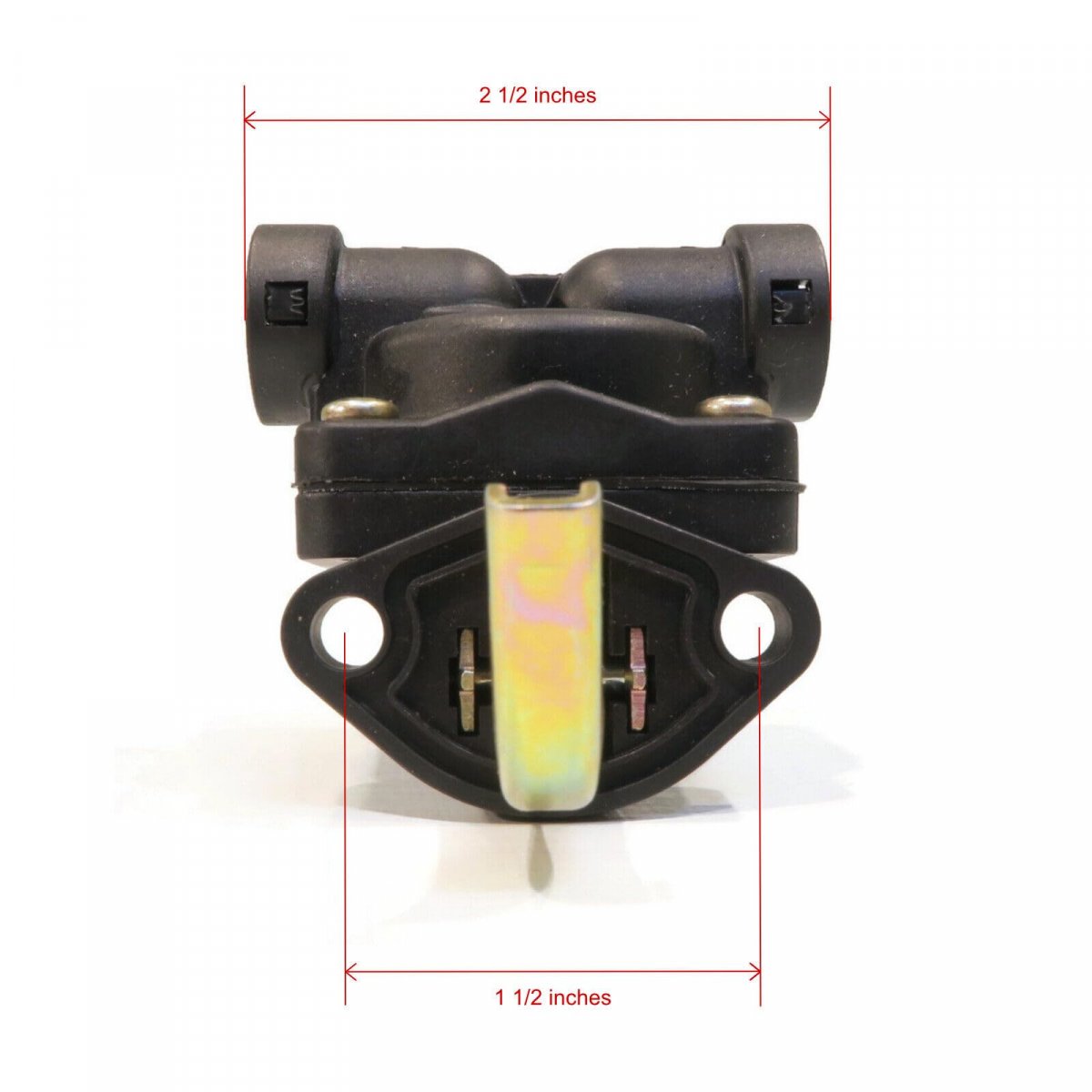

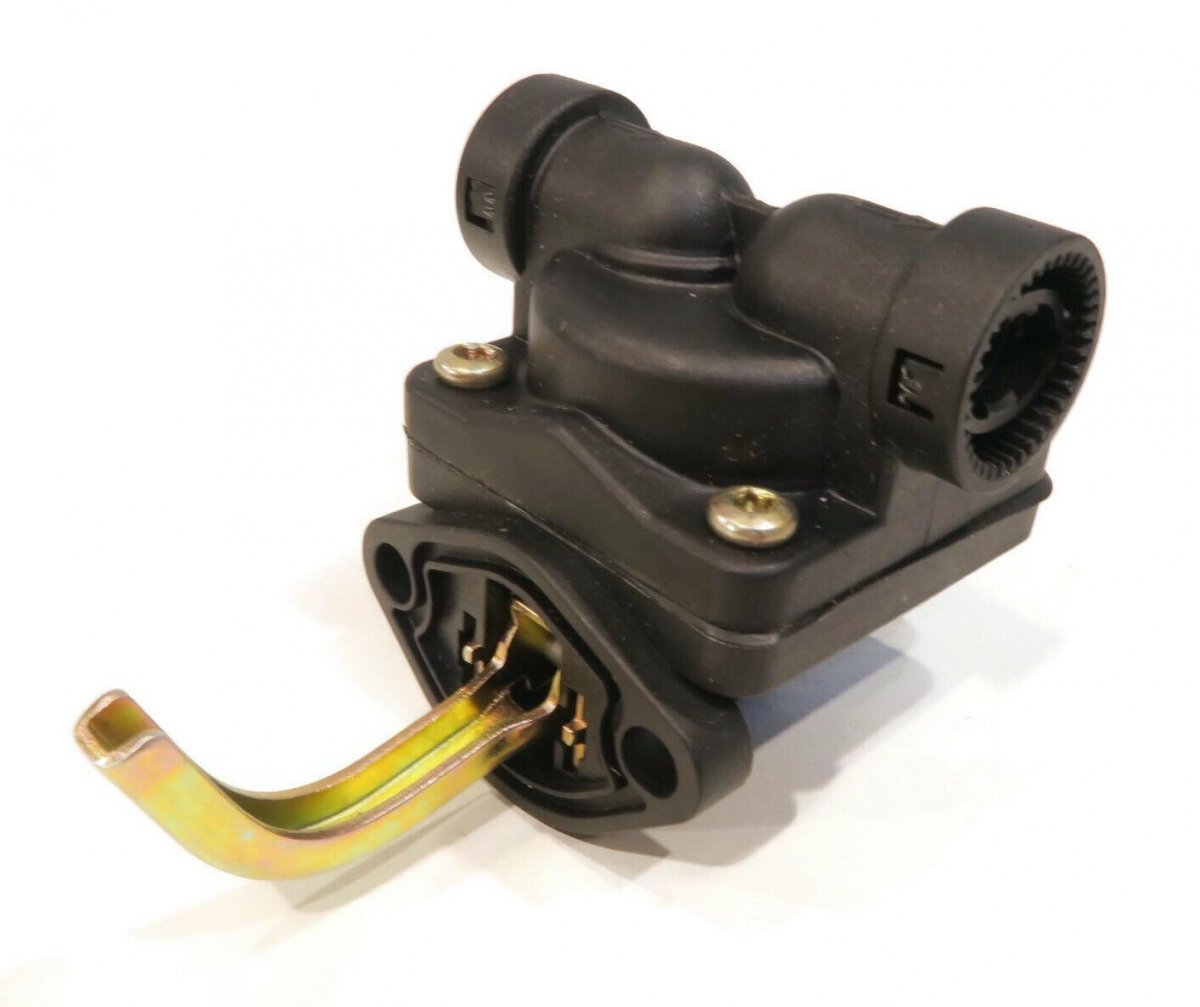

The ROP Shop replacement Fuel Pump for John Deere 16hp (11.9 kW) CV460-26510, CV460-26511, CV460-26513. Specs - Arm Length: 1 5/8". Fits 1/4" Inner Diameter Fuel Line. Material: Plastic. Refer to images 2 & 3 for more information. Includes - (1) Fuel Pump, (2) Fittings, (2) Gaskets, (1) Spacer, (1) Snap Ring & (2) Flange Bolts; comes as shown in the first image. NOT compatible with greater than 10% ethanol fuel. Inlet & Outlet fittings must be installed on the new fuel pump before mounting. The pump housing incorporates a special locking feature to retain the fittings. The release tabs must be depressed when the fittings are installed, removed, or damage to the fitting and/or o-rings may occur and create a potential fuel leak. DO NOT attempt to install or force the fittings into place without first depressing the tabs. The enclosed snap ring will serve as a tool for this purpose.
