Description:

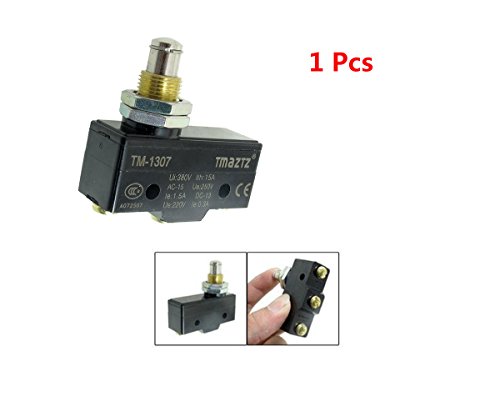

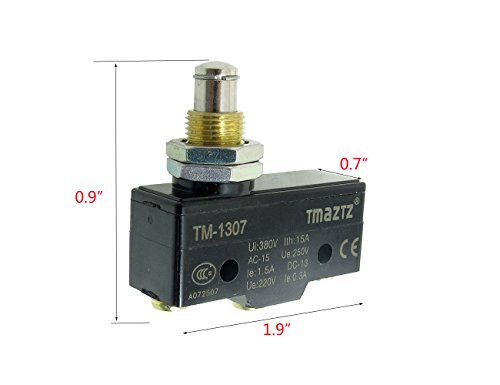

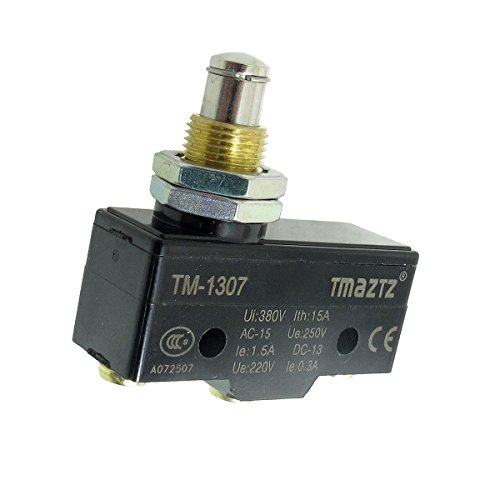

3 screws terminals for wires fixing use, can be applicable to both AC control circuits and DC control circuits. This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant. Can be used in safety circuits, control circuit and auxiliary circuit for terminal limit protection. Safe and reliable, small installation size ,the products are for general use. Features: Product Name : Micro Limit Switch;Model No. : TM-1307;Conact Configuration : 1NO,1NC(SPDT);Actuator Action : Momentary AC-15 : Ue: 250V, le: 1. 5A;DC-13 : Ue: 220V, le: 0. 3A;Switch Body Size : 4. 8 x 1. 7 x 2. 3cm / 1. 9" x 0. 7"x 0. 9"(L*W*H);Fixing Holes Dia. : 0. 44cm / 0. 17" Actuator Type : Panel Mount Plunger;Terminal Type : 3 Screw Terminals;Ui : 380V;Ith : 15A Distance Between Centers of Fixing Holes : 2. 5cm / 0. 98";Thread Size : 1. 16 x 1. 3cm / 0. 46" x 0. 5"(D*L);Actuator Height : 2. 2cm / 0. 9" Color : Black;Net Weight : 48g;Package Content : 1 x Micro Limit Switch.
