Description:

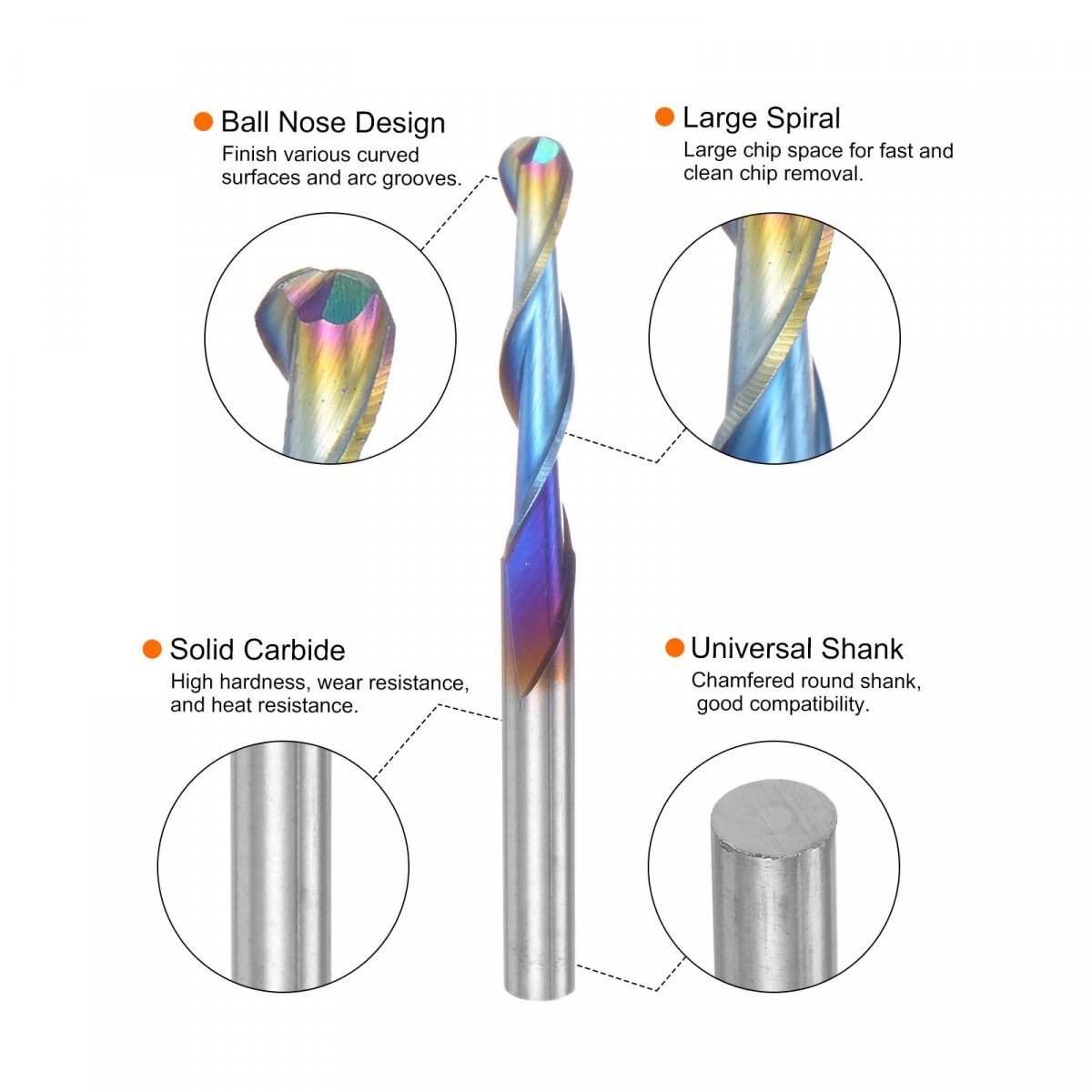

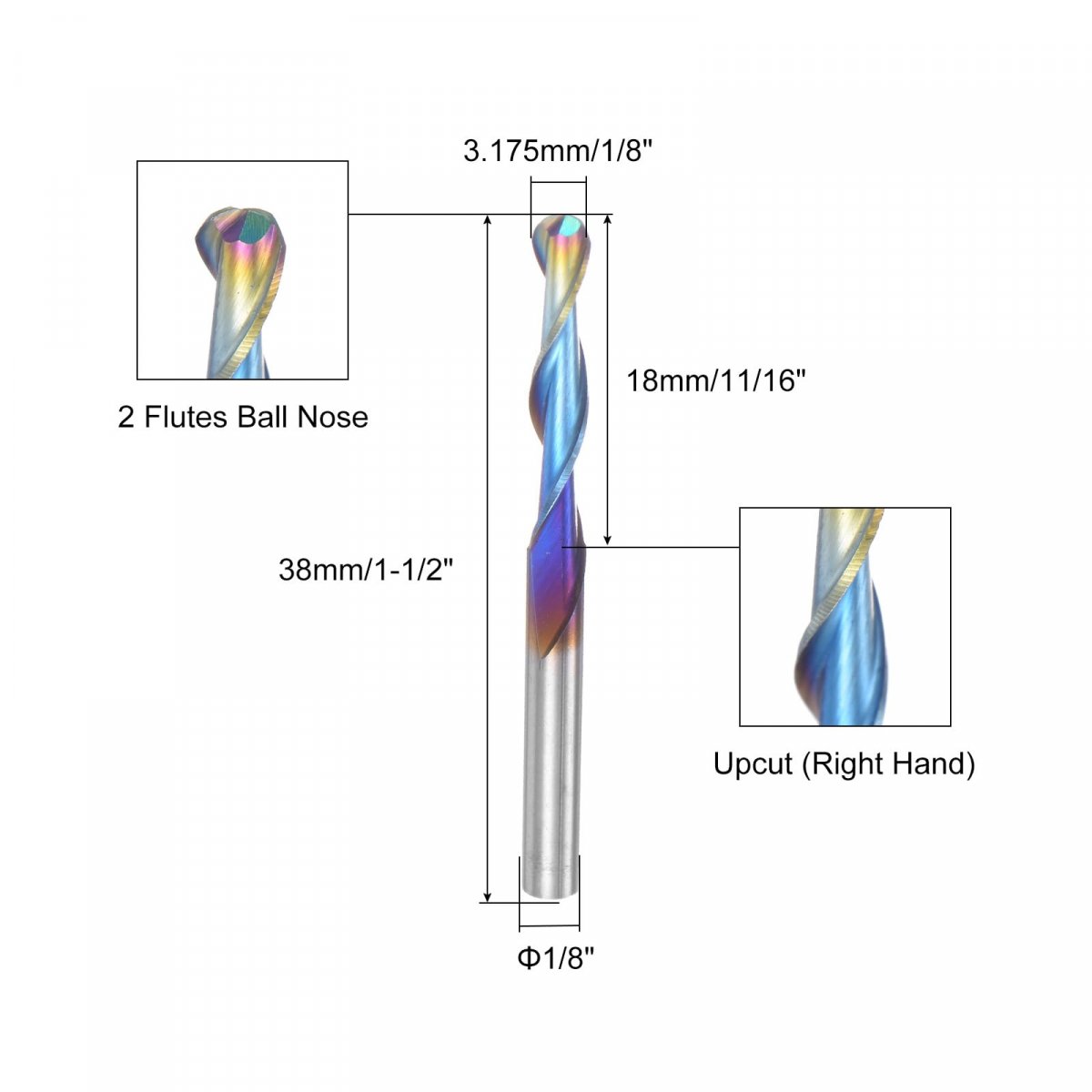

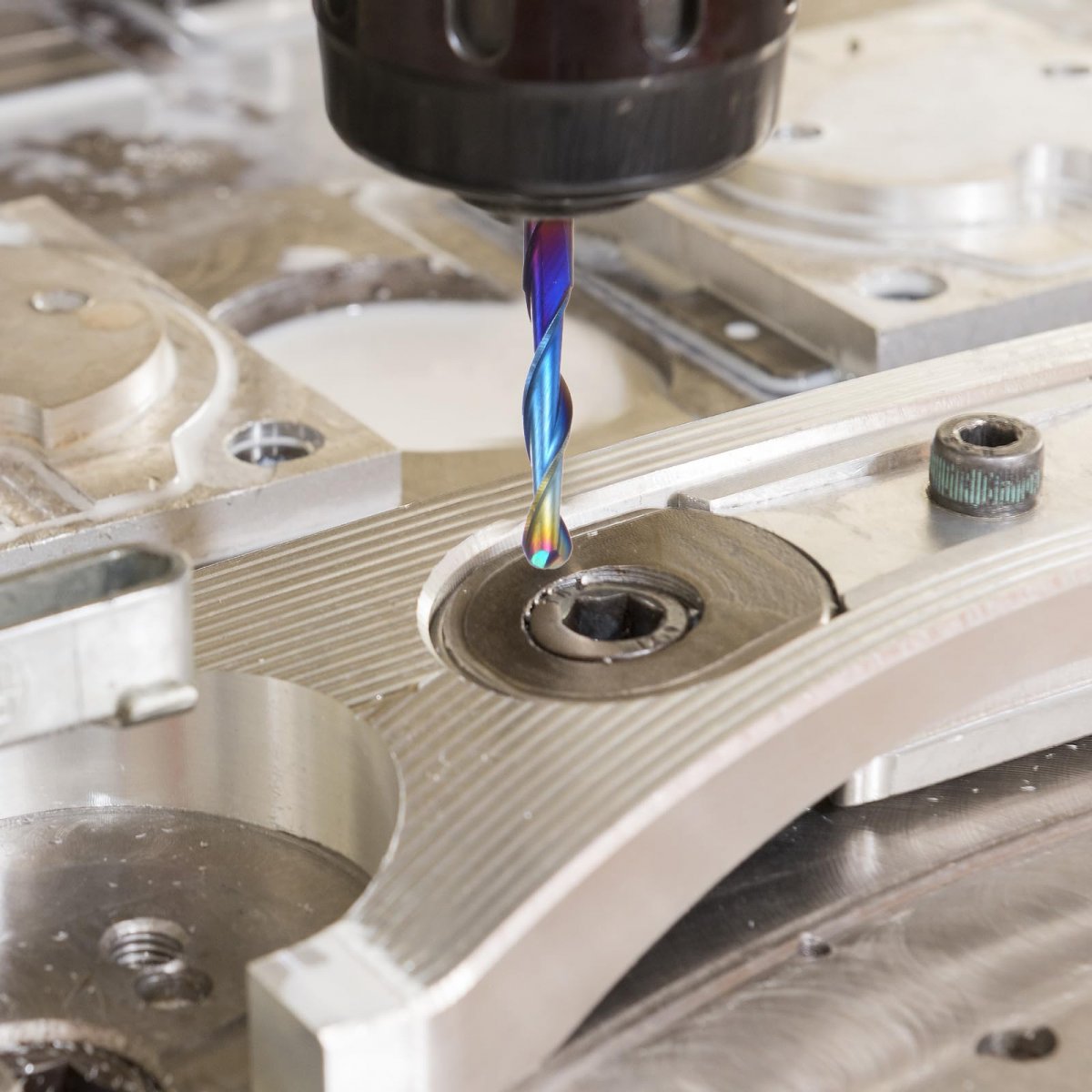

Ball Nose End Mill Size: Cutting diameter: 3.175mm / 1/8"; cutting length: 18mm / 11/16"; shank diameter: 1/8"; total length: 38mm / 1-1/2"; flute type: 2 spiral flutes; cut type: upcut (right hand). Wide Applications: Double-edged ball nose design, suitable for semi-finishing and finishing of various curved surfaces and arc grooves; Small ball end mills can perform small chamfer milling on steep/straight walls and contoured surfaces. Suitable for carbon steel, malleable cast iron, alloy steel, stainless steel, etc.. Blue Nano Coating: Blue nano coating provides enhanced performance and durability, further enhancing wear resistance, improving heat resistance, enhancing lubricity and extending tool life. This allows for smoother cuts and improved surface finish for clean, accurate cuts.. Solid Carbide: Solid carbide end mills offer high hardness, wear resistance, and heat resistance. CNC router bits are precision ground and polished, with high strength and good milling performance. The cutting edges are finely ground for smooth cuts. Large spiral chip space design for fast and clean chip removal.. Easy to Use: Universal chamfered round shank, good compatibility and easy to use. Use on standard milling machines, CNC machining centers, engraving machines. The longer the length of the tool clamped by the chuck, the better. Use a suitable coolant or lubrication method during milling operations.
