Description:

Technical Specification: Rated Voltage: 12V DC; No-Load Speed: 220RPM; No-Load Current: 600mA; Rated Torque: 5kg-cm / 4.3lb.in; Stall torque: 10kg-cm / 8.7lb.in; Mounting Screw Size: M4 (not included)..

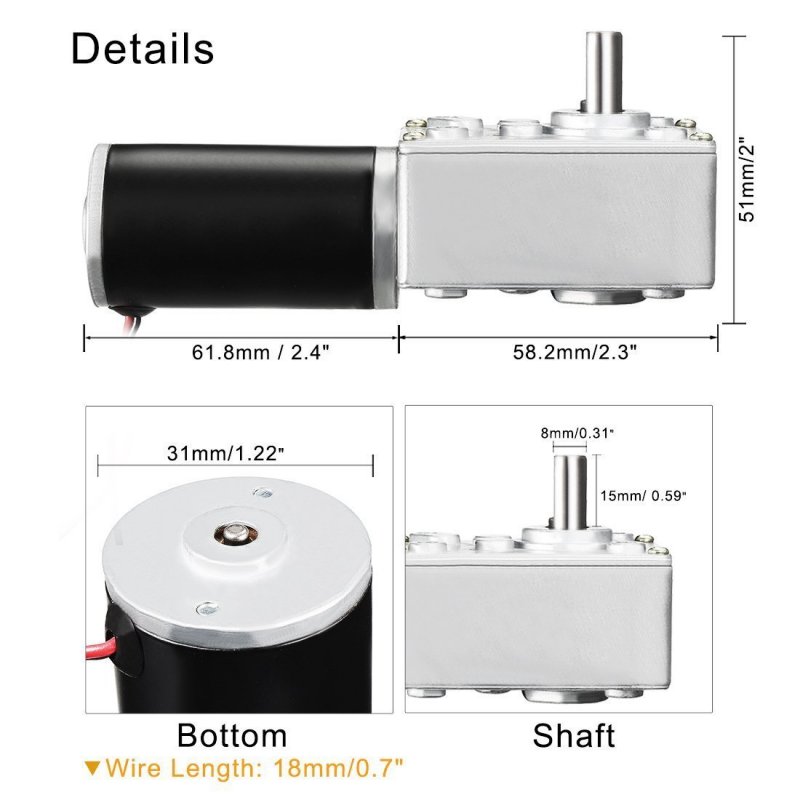

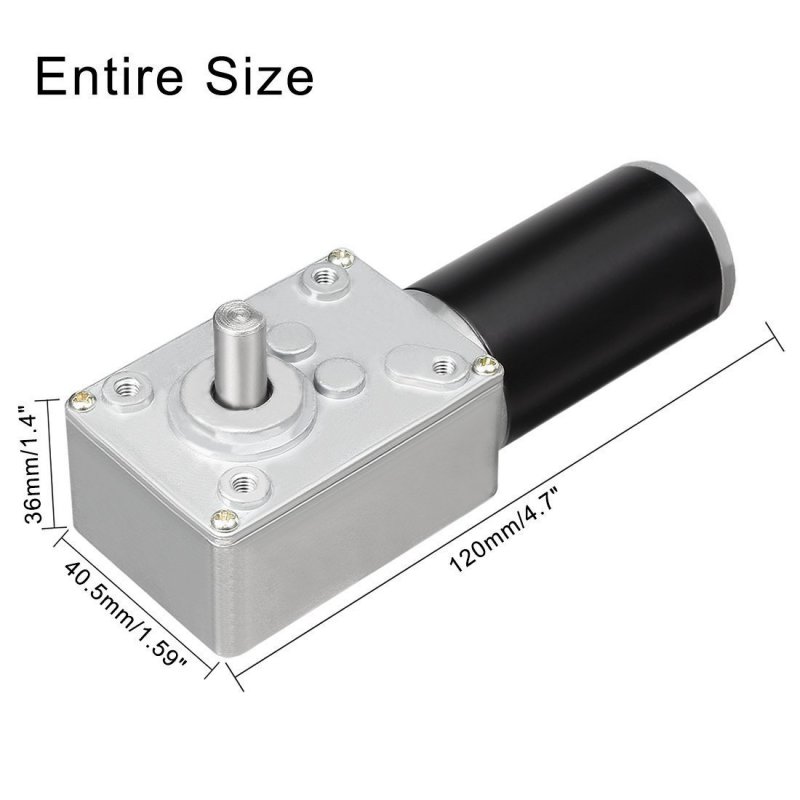

Dimensions: Output Shaft Diameter: 8mm; DC Motor Body Dimensions: 31 x 57mm / 1.22" x 2.24"(D*L); Gear Box Dimensions: 58 x 40 x 35mm / 2.28" x 1.57" x 1.37"(L*W*H)..
Feature - Gear DC Motor with Micro-Turbine Worm, change the motor rotation by changing the wiring-connection . With self-lock function, the output axis will be fixed when the motor is without electricity..
D-Shaped Output Shaft, arranged vertically with the motor shaft and is relatively short, fit for different occasions that require special installation size..
Application: Bank Equipment, Safe Box, Paper Feeder, Intelligent Gas Meter, Machine, Ad Equipment, Analysis Instrument, Electronic Game Machine, Remote Control Curtains, Locks, Paper Shredders, Copying Machines, and Safes Inner..
