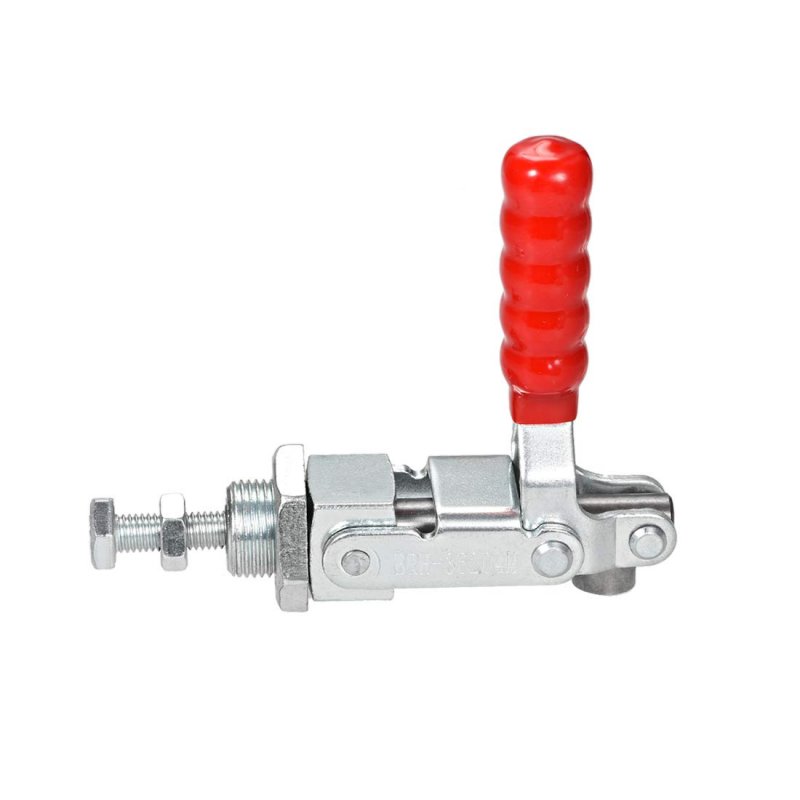

Red vinyl hand grip design with cushioned rib profile for improved user convenience.Clamp body and linkage are zinc plated to keep from corrosion. Toggle clamps can be used in the metal working industry when drilling, welding, bending, grinding, testing and fitting as well as in the wood and plastic industry in glueing, drilling, cutting and milling jigs.. Clamps with adjustable spindles are manufactured with a formed end to the arm, which captivates the spindle should it become loose during operation Flanged washers are supplied with all slotted arm versions.. Type: Pull Push Action;Surface Progress: Zinc-coated;Material: Carbon Steel;Holding Capacity (Lb/Kg):300 lbs/136kg;Handle Opens:180 degree;Thread Size:M8*35mm (D*L);Overall Size:90*34*93mm(L*W*H);Mounting Size: 38*35m;Stroke:39mm. Fixed stop automatically limits the handle travel at various clamping positions.Integrated lock-out hole for pin or lock..
