Description:

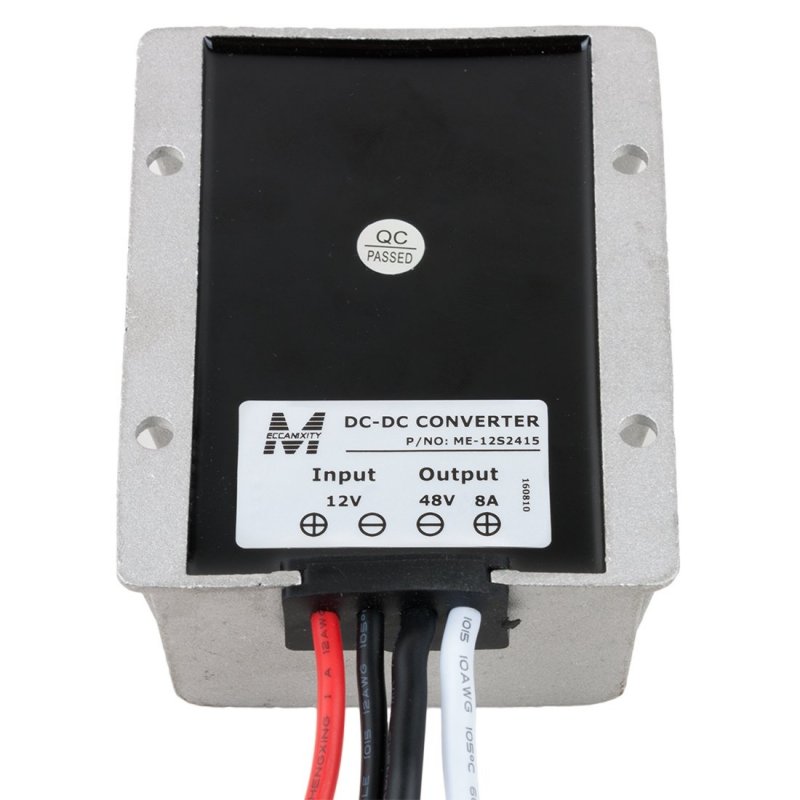

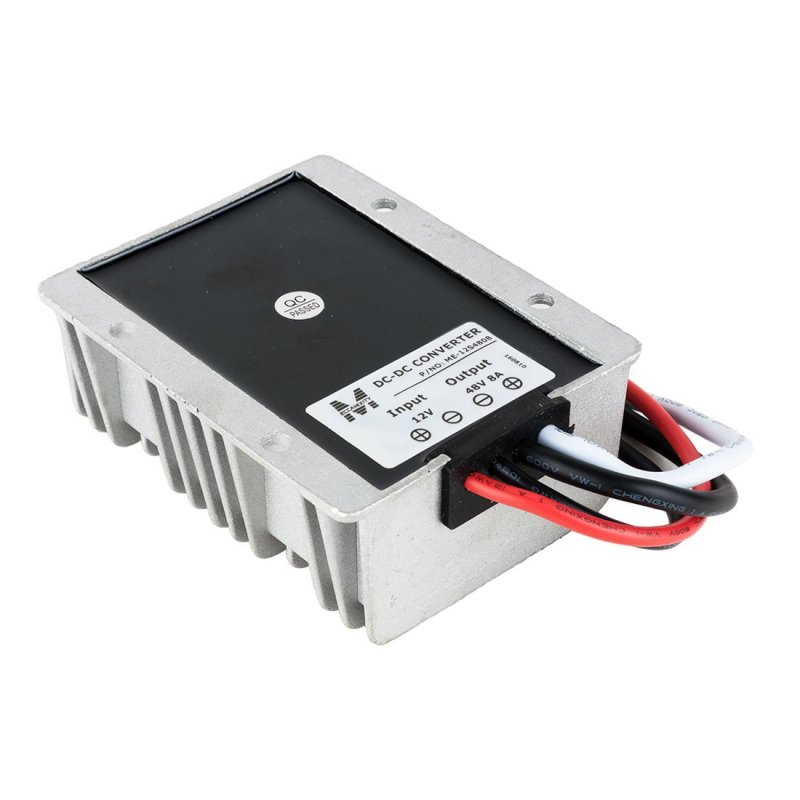

The uxcell Waterproof DC 12V to 48V 8A Step up DC DC Converter is a high power voltage booster regulator designed for stable and efficient power conversion in automotive and industrial applications.

• Input Voltage Range 10 to 25V DC
• Rated Input Voltage 12V DC
• Output Voltage 48V DC
• Output Current 8 Amps
• Rated Output Power 384 Watts
• Peak Output Power 125 percent
• Efficiency 97 percent at half load and 96 percent at full load
• Waterproof Rating IP68
• Housing Material Die cast aluminum shell with epoxy potting
• Cooling Method Free air convection
• Voltage Regulation Less than 1 percent
• Load Regulation Less than 2 percent
• Ripple at Full Load Less than 180mV
• No load Current Less than 30mA
• Working Temperature negative 40 degrees to positive 80 degrees Celsius
• Dimensions 100 by 80 by 39mm
• Protections Overload, overcurrent, overtemperature, short circuit, and overvoltage with auto recovery
• Certifications CE and RoHS
• Module Type Non Isolated
• Lifespan Up to 100000 hours
