Description:

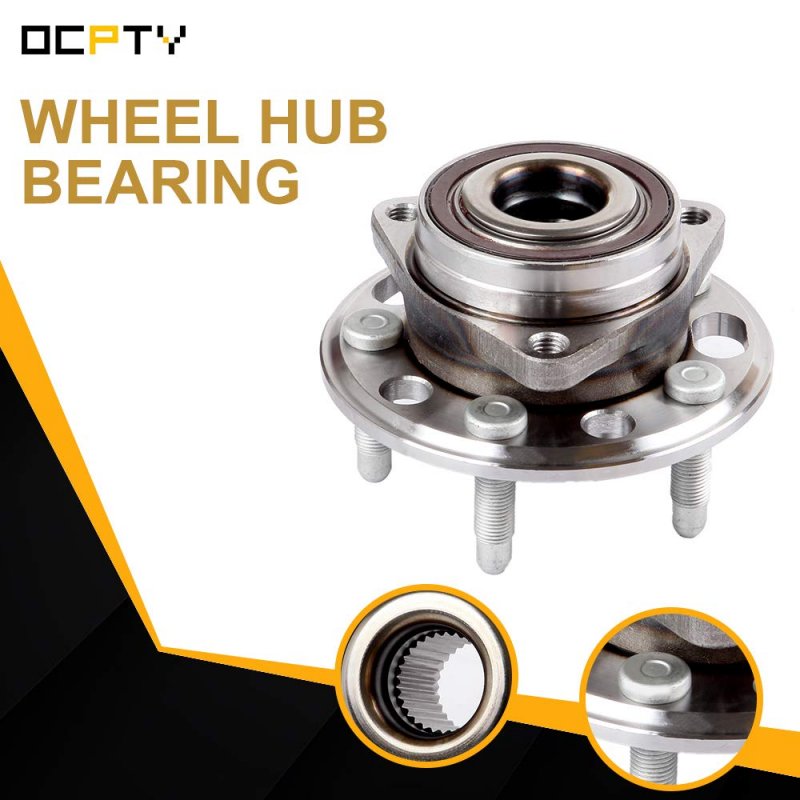

This Wheel Bearing Hub Assembly 513288 is designed for precise steering and safe driving by ensuring the wheel remains securely attached and rotates smoothly on the vehicle shaft.

• Fitment
  2020 Chevrolet Impala Front and Rear All Models
  2017 GMC Terrain Front
  2017 Chevrolet Equinox Front
  2015 to 2016 Cadillac CTS Front for AWD Only
  2014 to 2017 Chevrolet Impala Front All Models
  2014 Cadillac CTS Front Only
  2013 to 2016 Cadillac XTS Front and Rear All Models No HD Brakes
  2013 to 2015 Chevrolet Malibu Front and Rear All Models
  2011 to 2016 Buick Regal Front and Rear All Models
  2010 to 2016 GMC Terrain Front
• Technical Specifications
  Part Number 513288
  5 Bolts
  ABS with Tone Ring Sensor
  Anti Lock Braking System Type Encoder
  Spline Quantity 30
  Wheel Stud Quantity 5
  Wheel Studs Included Yes

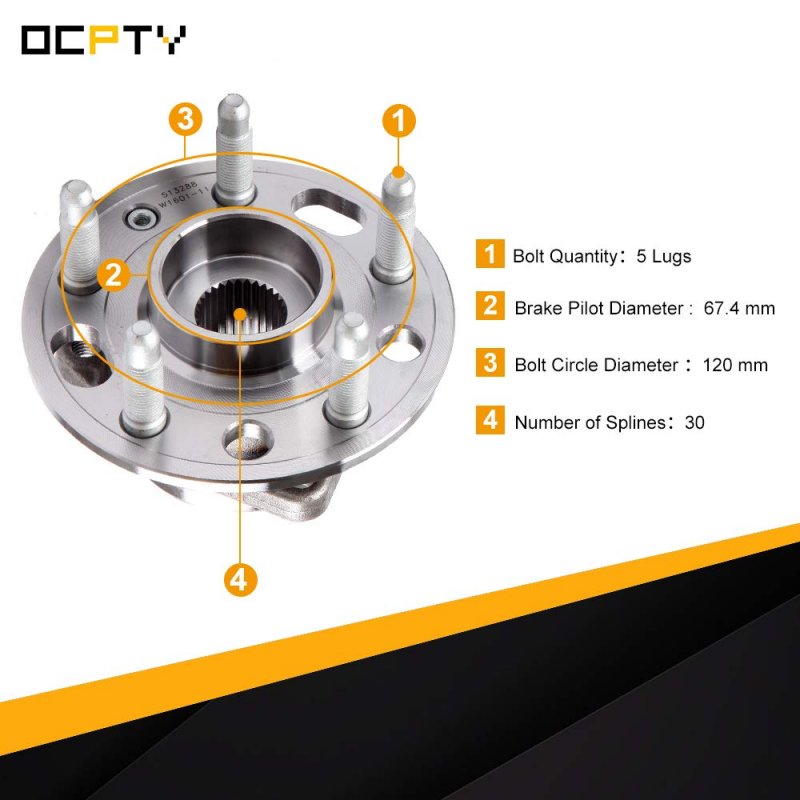

• Dimensions and Measurements
  Bolt Circle Diameter 120 mm or 4.724409 IN
  Wheel Pilot Diameter 67 mm or 2.637795 IN
  Brake Pilot Diameter 67.4 MM or 2.653543 IN
  Hub Pilot Diameter 91.2 mm or 3.59055 IN
  Flange Diameter 157 mm or 6.181102 IN
  Flange Offset 42.1 mm or 1.657480315 IN
  Stud Length 48 mm or 1.889764 IN
  Wheel Stud Size 14 MM
  Flange Bolt Hole Diameter 12 mm
• Physical Properties
  Material Metal
  Color Silver
  Bearing Type Ball Bearing
  Flange Shape Triangular
  Orientation Front
