Description:

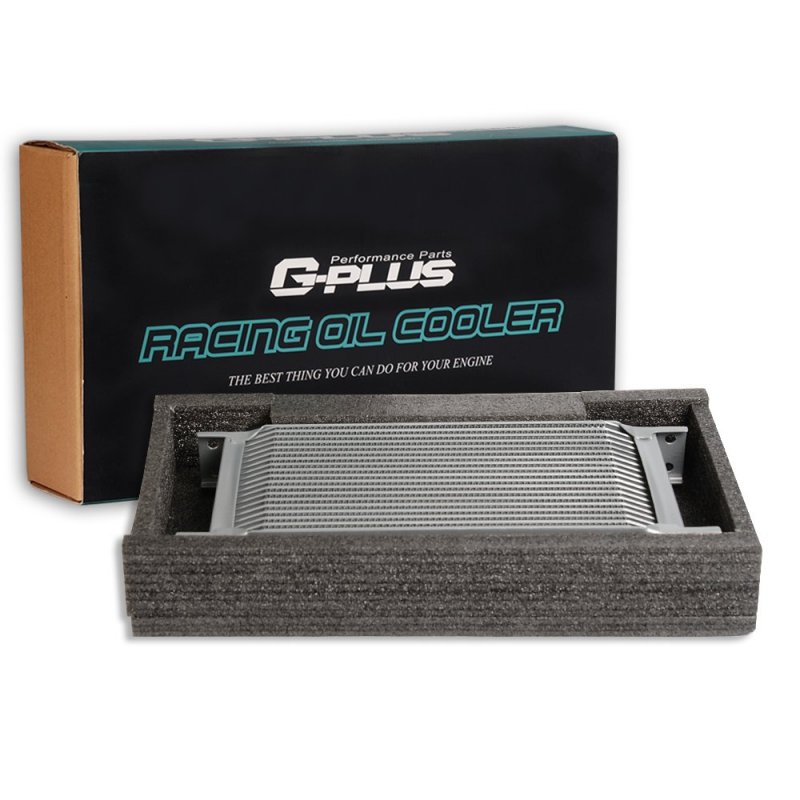

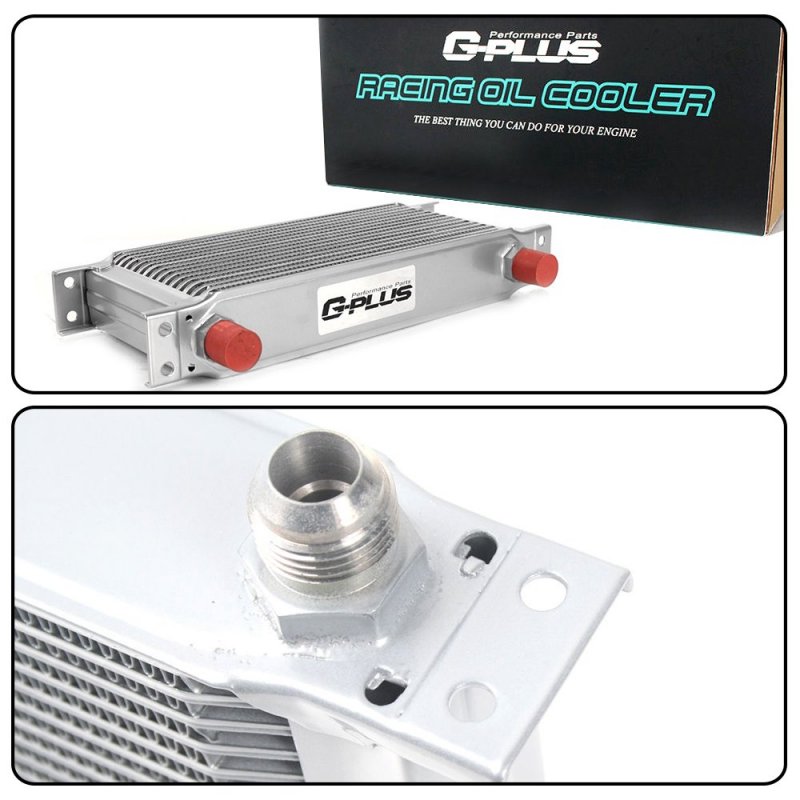

This universal engine and transmission oil cooler kit with filter relocation provides enhanced lubrication and protection by reducing oil temperatures to extend engine life.

• Core Size: 11.5 inches x 4.13 inches x 2.00 inches
• Overall Size: 13 inches x 3.0 inches x 2.00 inches
• Material: T6061 Aluminum
• Finish: Powder coated and oxidized for durability
• Cooling Performance: Potentially reduces oil temperature up to 50 degrees F
• Compatibility: Universal kit compatible with all models
• Inlet and Outlet Size: 10 AN
• Center Adapter Threads: M20 x 1.5 and 3/4 x 16 UNF
• Filter Support: Supports oil filters with M20 thread and M20 block fitting
• Bolt Pattern: 0.875 inches x 12.125 inches

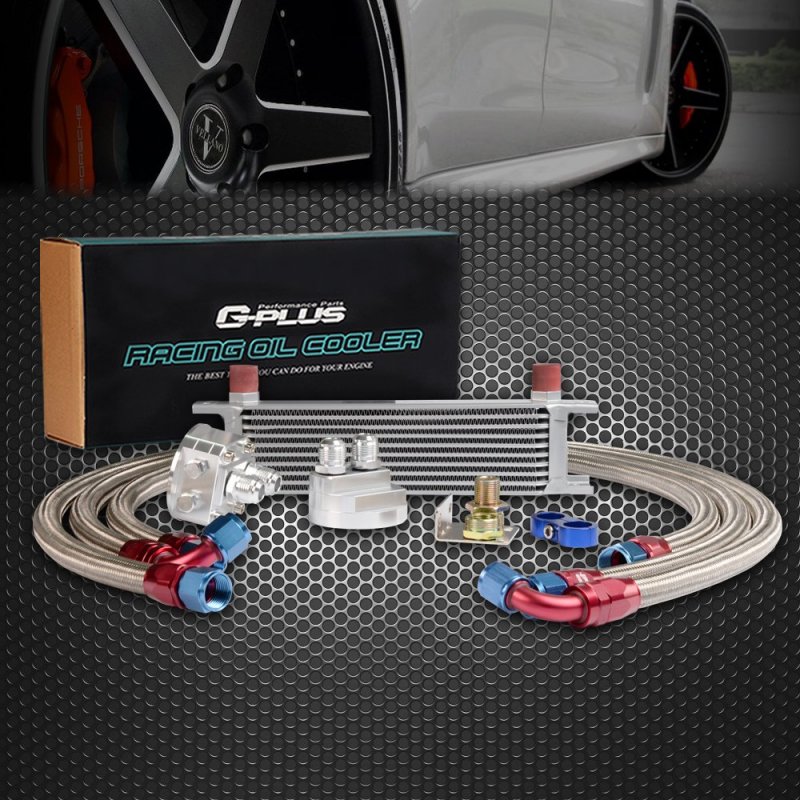

• Oil Lines: Includes three braided nylon hoses in lengths of 1.2M, 1.4M, and 1.6M
• Additional Components: One hose separator and one 1/8 inch NPT threaded fitting
• Fitting Details: Four 10 AN 0 degree swivel aluminum hose ends and two 10 AN 90 degree swivel aluminum hose ends
• Adapter Kit: Includes M20XP 1.5 female fitting, 3/4 16 female fitting, and two filter adapters
