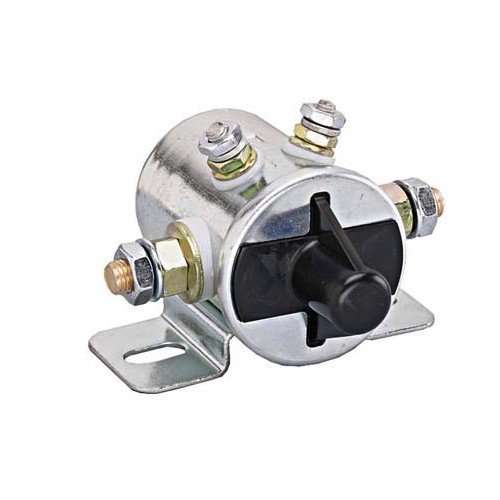

Specifications Special Applications Remotely-operated battery isolator, remote battery disconnect switch Insulated/Grounded Insulated NO/NC Normally open or normally closed Min Qty No Circuitry SPST Contacts copper Housing plated steel Voltage Rating 12V Terminals copper; 10-32 thread and 5/16"-24 thread. Hex nuts and lock washers included Continuous Rating 110A Maximum Current, Make - Maximum Current, Break 110A Intermittent Time Not applicable: continuous Bracket Straight Bracket Mounting Holes 5/16" x 19/32", 2-13/64" on center Breather Hole no UL Marine & CE ISO 8846 Marine Not listed Other Information Coil circuit energized by momentary switch Model # 24200.
