Description:

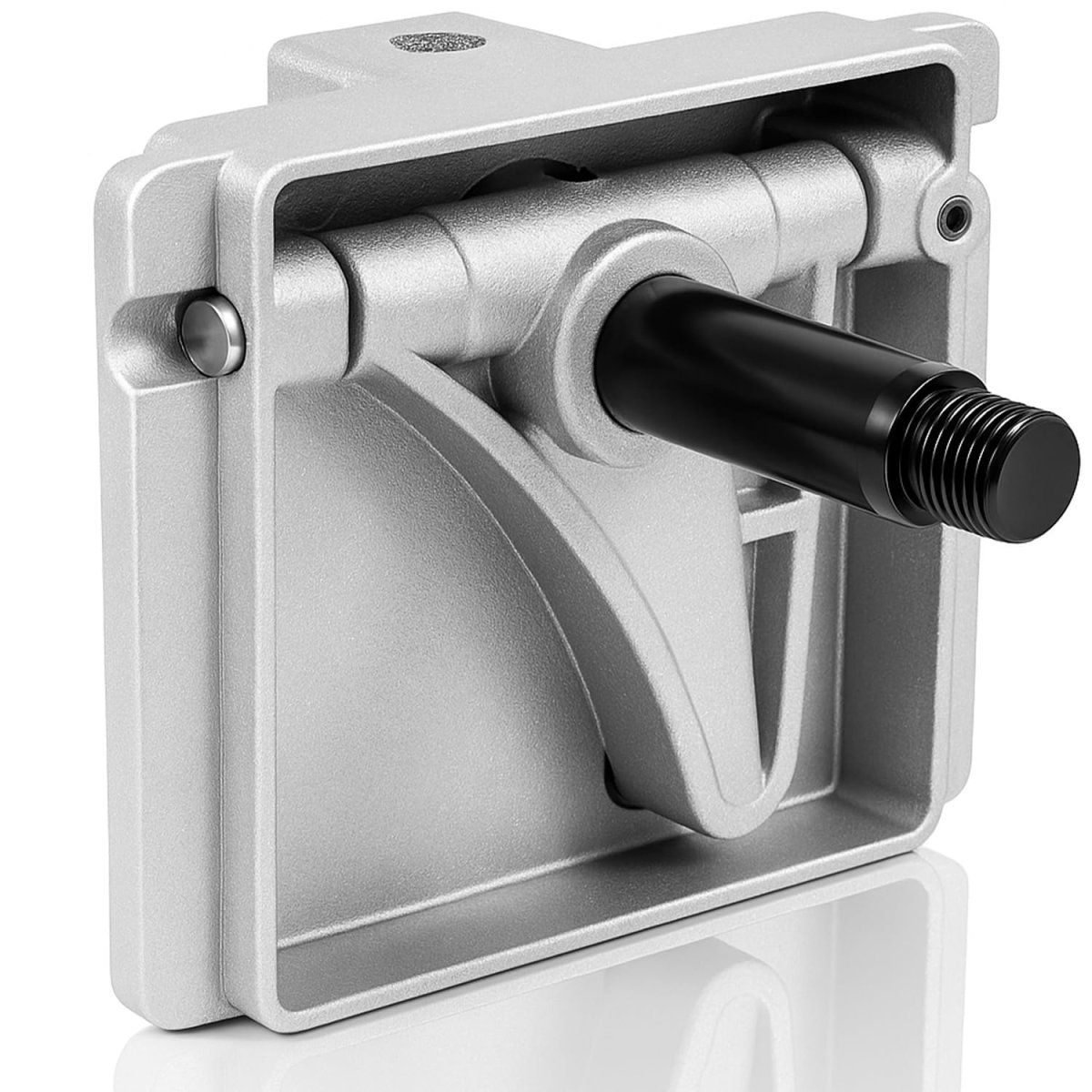

The 100016A-1 Alloy Upper Wheel Hinge and Bracket Assembly is a direct replacement part designed to restore stability and blade alignment for 14 inch cast iron woodworking band saws.

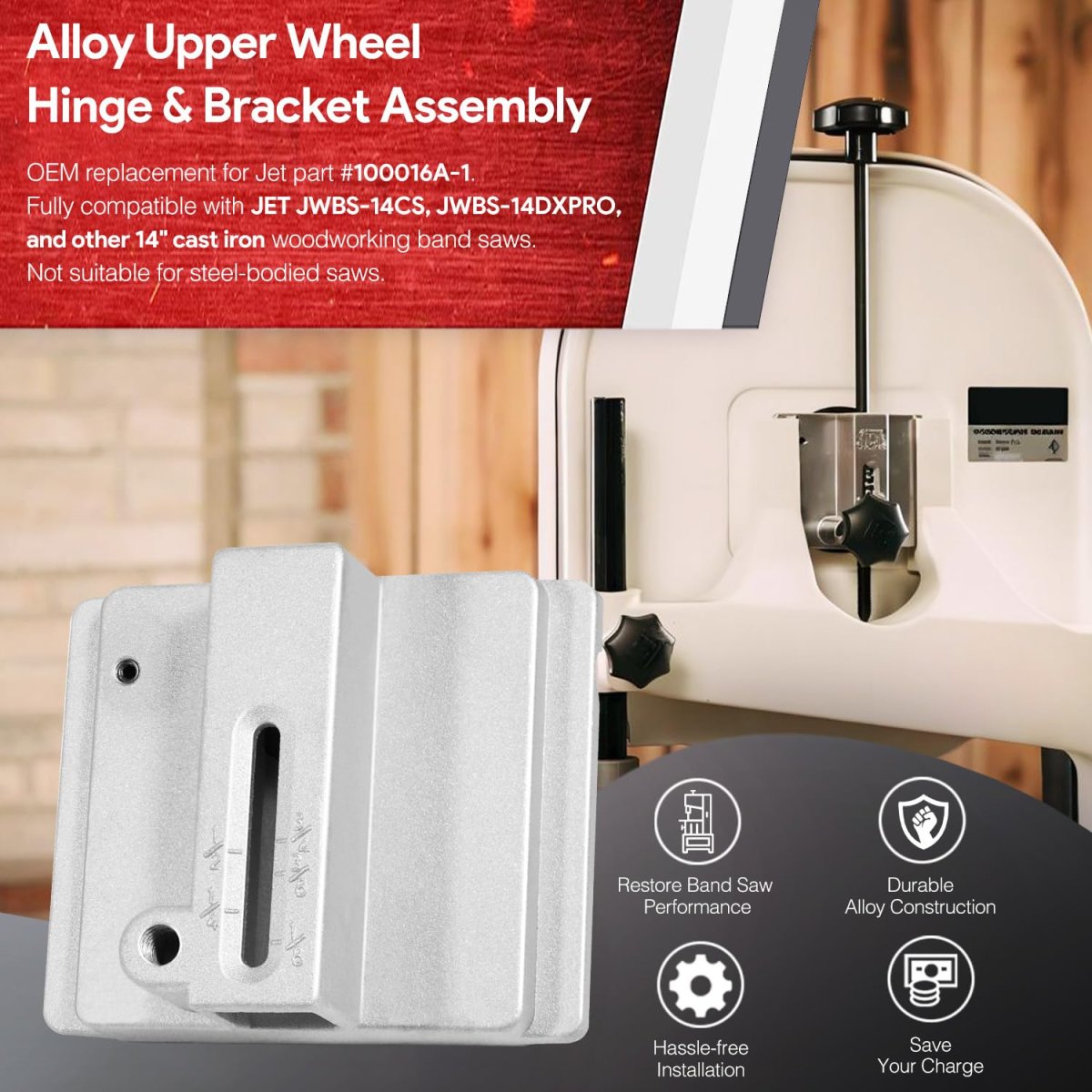

• Compatibility Direct replacement for part 100016A-1. Fits JET JWBS-14CS, JWBS-14DXPRO, Rigid 14002, and Reliant 14 inch saws. Not for steel bodied saws.

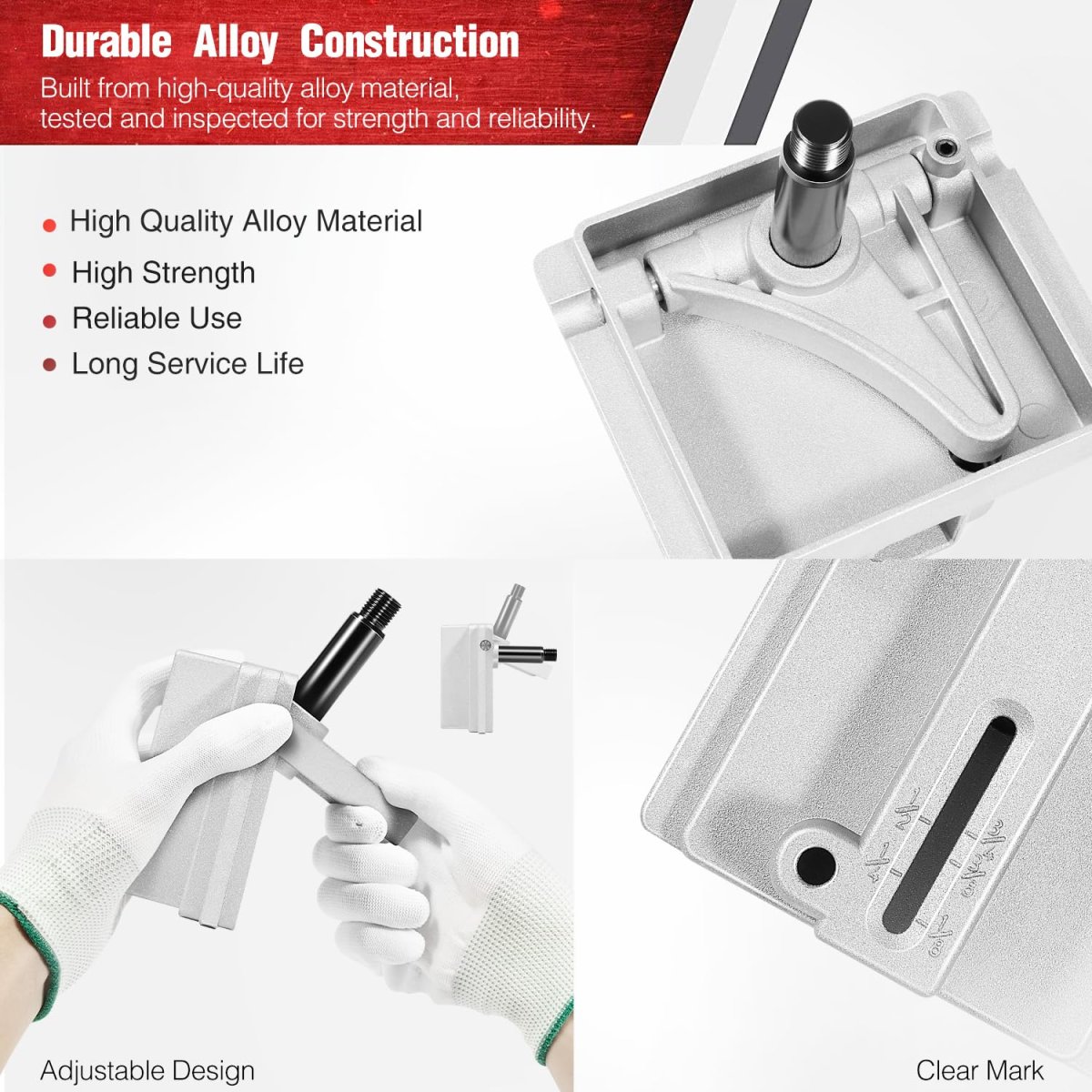

• Material alloy construction for strength and reliability.

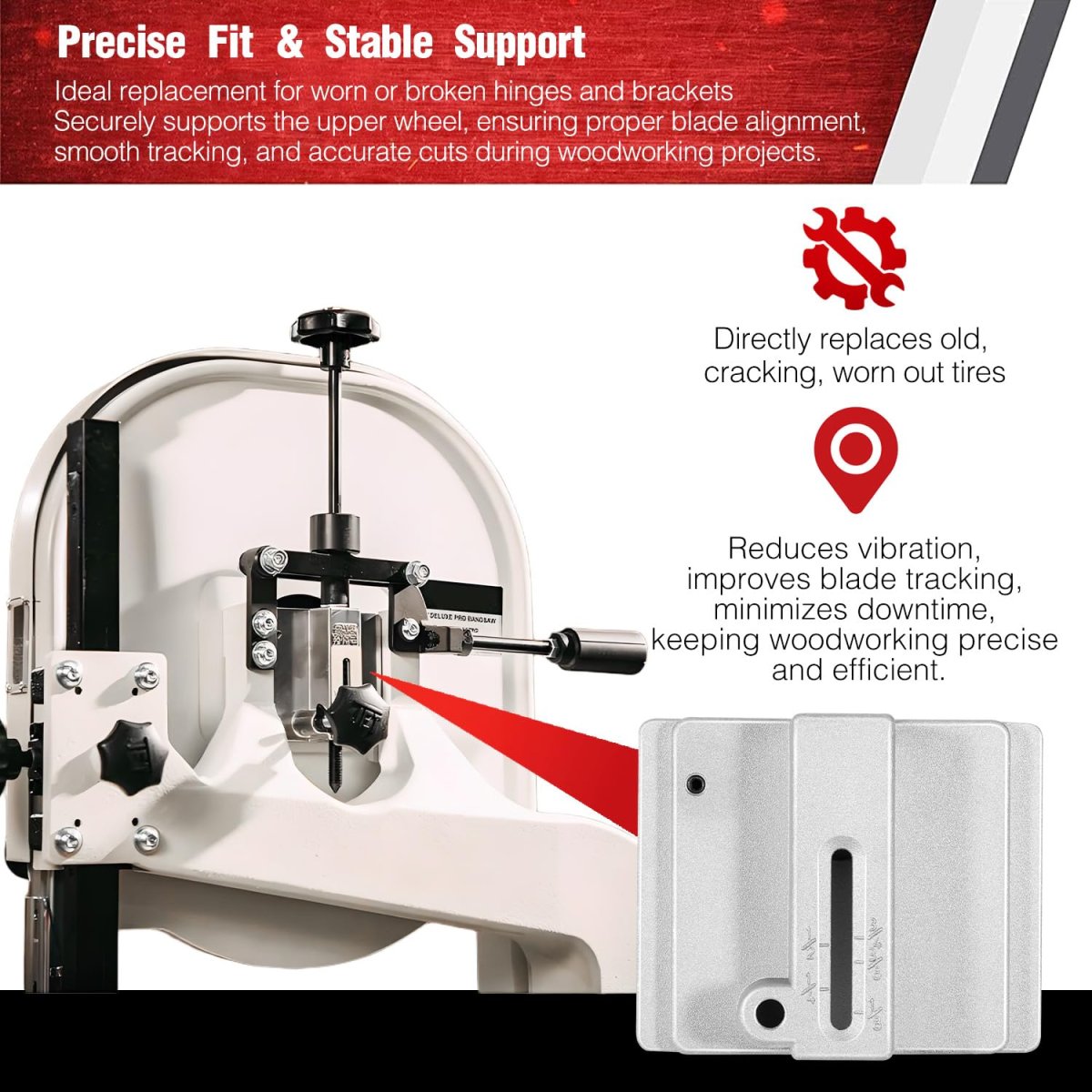

• Function Supports the upper wheel to ensure smooth tracking and accurate cuts while reducing vibration.

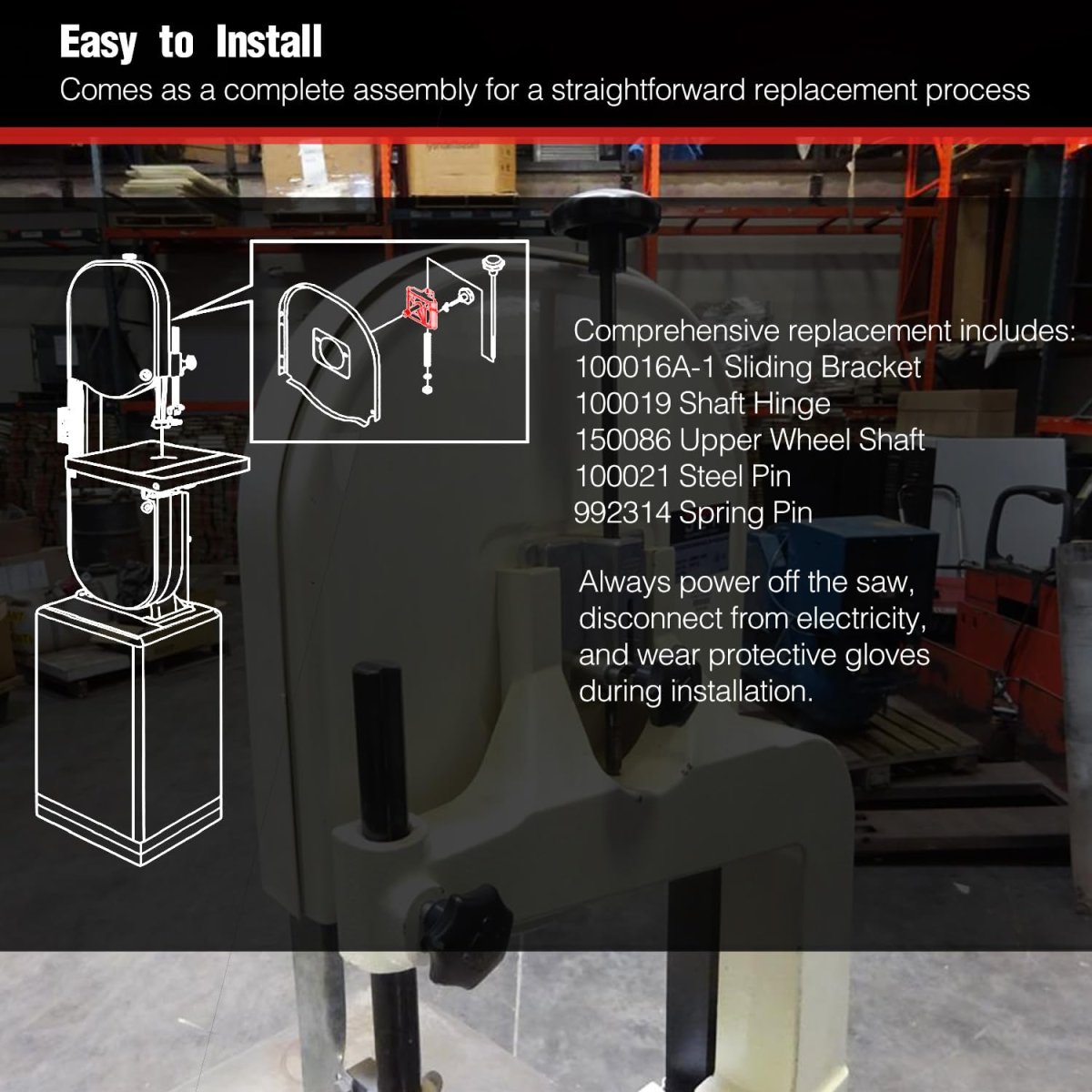

• Included Components Assembly includes sliding bracket 100016A-1, shaft hinge 100019, upper wheel shaft 150086, steel pin 100021, and spring pin 992314.
• Dimensions Overall assembly measures 3.4375 inches high and 4.125 inches wide.
• Technical Specs Arbor size is 15mm by 1.925 inches long. Sliding section is 0.34375 inches by 3.4375 inches by 0.25 inches thick.
• Hardware Details Adjusting shaft hole is 0.40625 inches and adjusting screw hole is tapped M8 x 1.25.
• Installation Complete assembly for straightforward replacement. Note that early blue Jet saws from 1955 to 1966 may require a notch in the back door cover for clearance.
