Description:

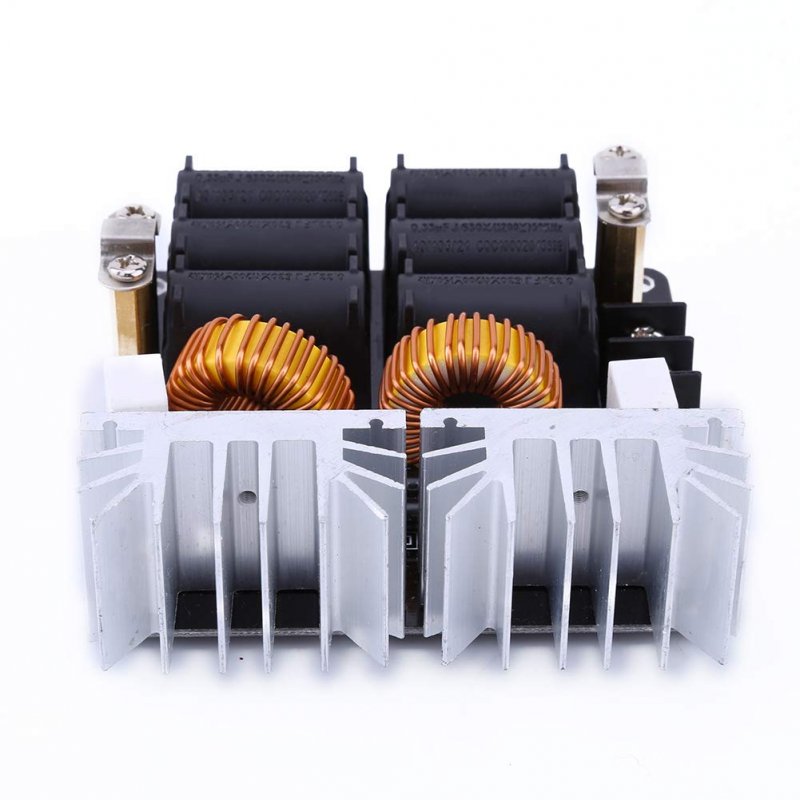

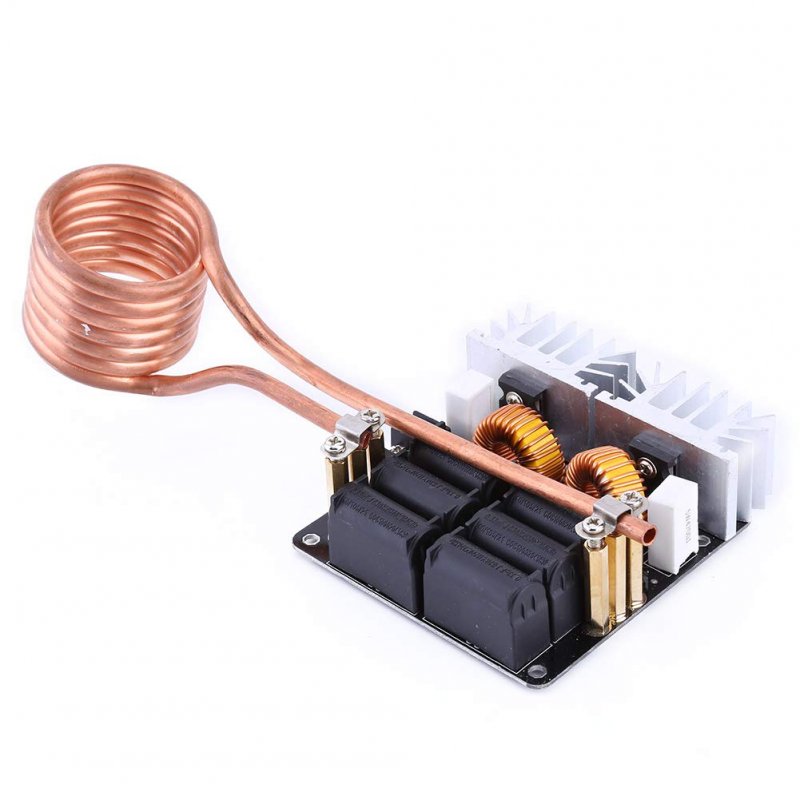

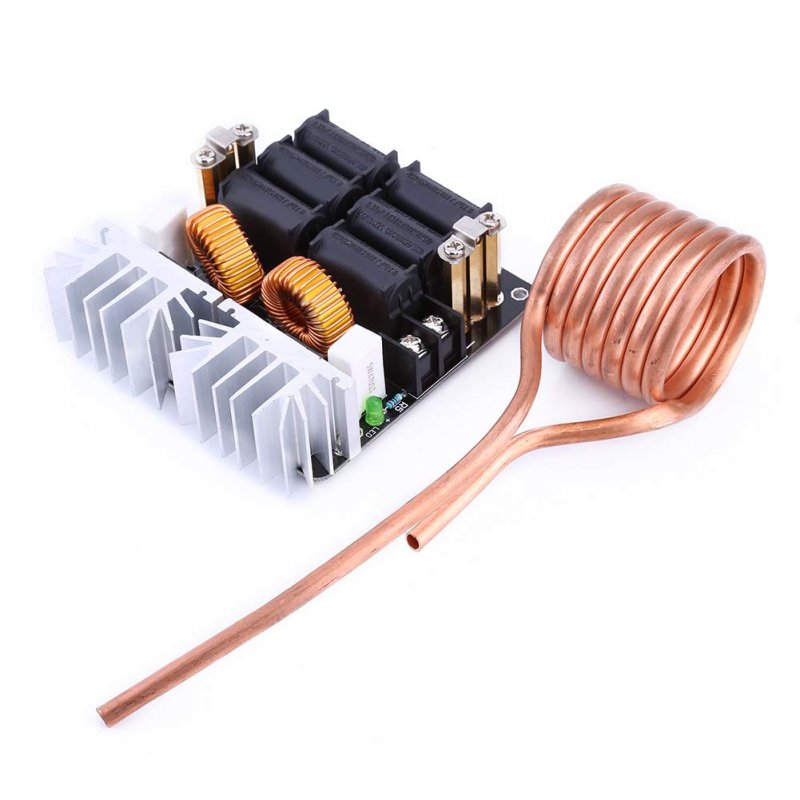

The 1000W ZVS Low Voltage Induction Heater Coil Kit is a high power heating module designed for DIY heat treatment and metal melting. This efficient induction board enables hardening, annealing, and the melting of gold, silver, copper, and aluminum.

• Maximum Power: 1000W
• Maximum Current: 20A
• Input Voltage: 12 to 48V DC power supply
• Recommended Voltage: 24V or 36V for general use
• No Load Current: 3A at 24V input and 6A at 48V input

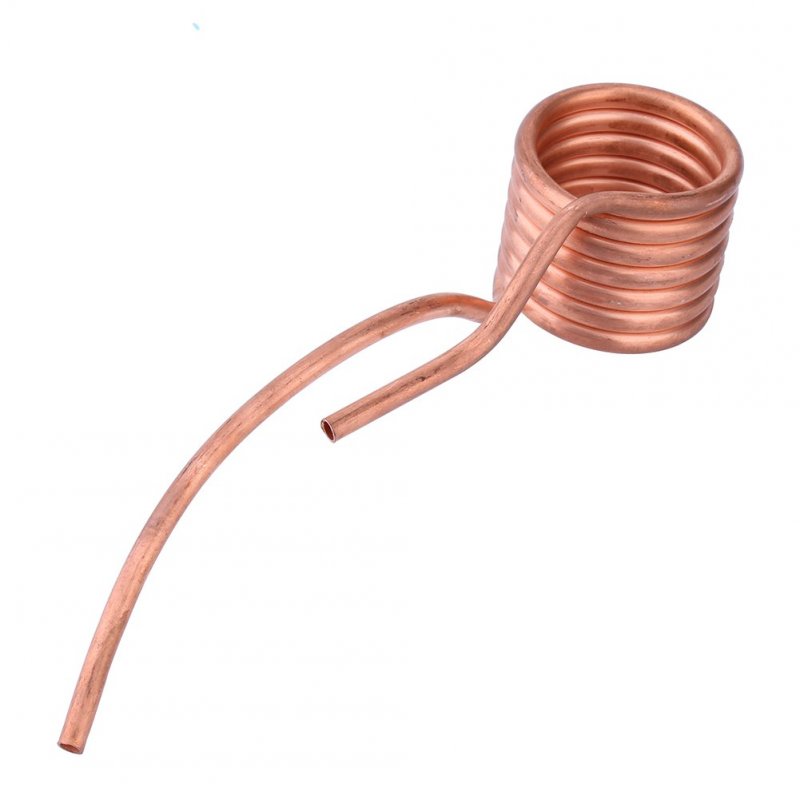

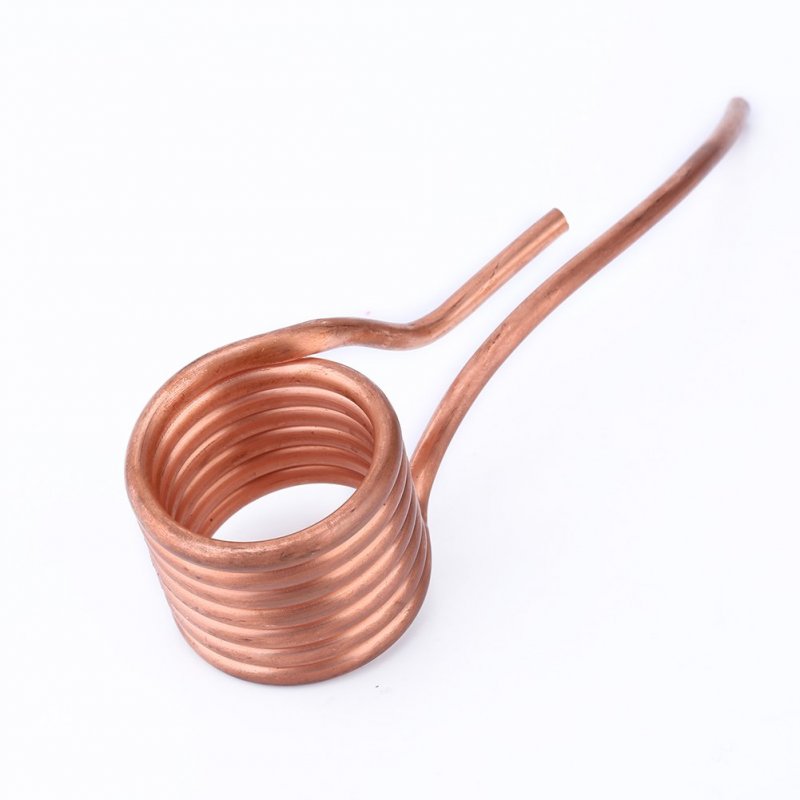

• Coil Inside Diameter: 40mm
• Coil Height: 50mm
• Crucible Compatibility: Accepts 40mm crucible
• Heat Sink: Customized substrate 8.5mm thick for powerful cooling
• Hardware: M4 pillars for higher efficiency and lower heat
• Product Dimensions: 25 centimeters length, 17 centimeters width, 6.5 centimeters height
• Package Contents: 1 ZVS Low Voltage Induction Heating Board and 1 Brass
