Description:

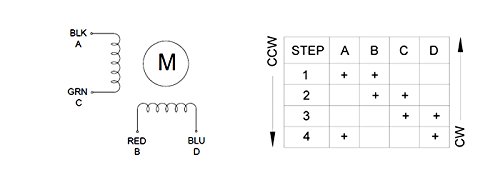

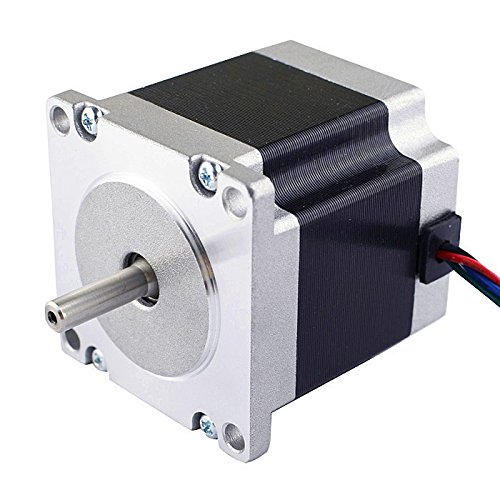

This bipolar Nema 23 stepper motor with 1. 8 deg. step angle (200 steps/revolution). Each phase draws 2. 8A, allowing for a holding torque of 1. 26Nm(178. 5oz. in). Electrical Specification: * Manufacturer Part Number: 23HS22-2804S * Motor Type: Bipolar Stepper * Step Angle: 1. 8 deg. * Holding Torque: 1. 26Nm(178. 5oz. in) * Rated Current/phase: 2. 8A * Phase Resistance: 0. 9ohms * Inductance: 2. 5mH+/-20%(1KHz) Physical Specification: * Frame Size: 57 mm * Body Length: 56mm * Shaft Diameter: 6. 35mm * Shaft Length: 20. 6mm * Number of Leads: 4 * Lead Length: 300mm * Weight: 700g Connection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor. Model # 3-23HS22-2804S Features: Package in 3PCS 1. 26Nm(178. 5oz. in) holding torque NEMA 23 bipolar 2. 24"x2. 24"x2. 2" 4-wire 1. 8 deg. step angle(200 steps/rev) Rated current 2. 8A & resistance 0. 9ohms.
