Description:

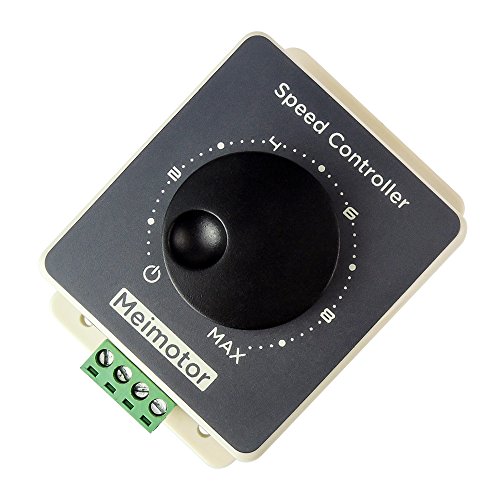

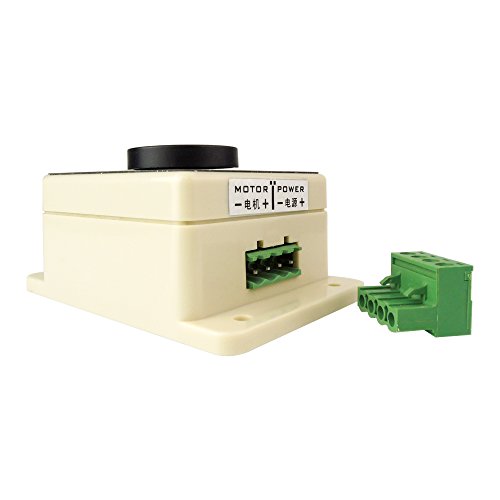

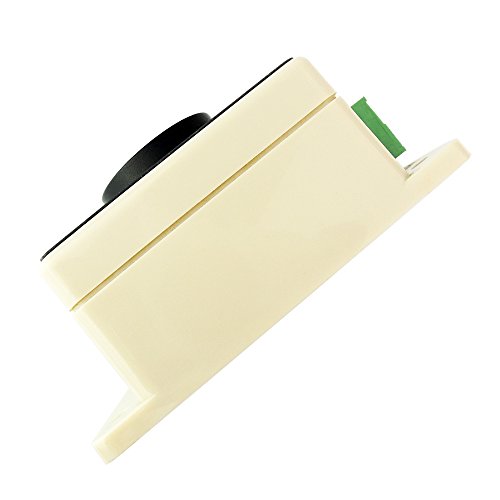

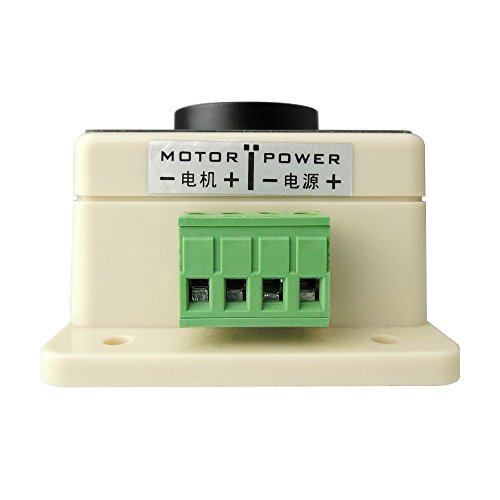

DC 10-60V 12V 24V 36V 48V MAX 20A DC Motor Speed Control PWM HHO Driver RC Controller Speed Regulator Stepless Variable Rotary Switches Parameters: Motor Type: DC Motor Model Number: CCM96SK Item Name: PWM DC Motor Control Size: 88mm*59mm*35mm Input supply voltage: DC 10V-60V Output Voltage:0-100% Output power: 12V*10A=120W,24*10A=240W,36V*10A=360W,48V*10A=480W Maximum continuous output current: 10A Peak current: 20A Duty Cycle adjustable: 5%-100% PWM frequency: 25kHz Before you attempting to wire the controller, make sure power is off. WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS. THIS WILL DAMAGE THE CONTROLLER. Package Includes: 1 x dc motor controller Features: Output power: 12V*10A=120W,24*10A=240W,36V*10A=360W,48V*10A=480W Output Voltage:0-100% PWM frequency: 25kHz Size: 88mm*59mm*35mm (3. 46x2. 32x1. 38inch) Duty Cycle adjustable: 5%-100% Item Dimensions: 3. 46" L x 2. 32" W x 1. 38" H.
