Description:

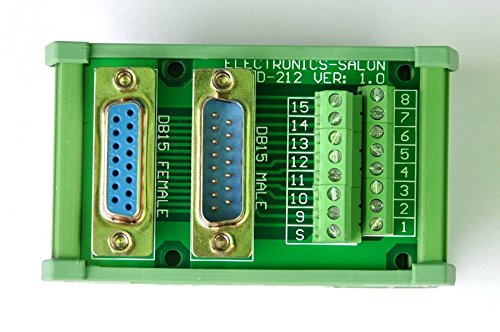

Din Rail Mount DB15 InterfModule. Male and Female DB15 connectors. Screw terminal block. Din rail mountable - for width 35 / 32 / 15mm rails. Din mount case can be taken apart for panel mount use. PCB carrier. FR-4 fiber glass PCB. External dimensions: 87 x 49. 5 x 43mm(W x L x H). PCB dimensions: 72 x 47. 35mm(W x L). 100% new, never used. Terminal block specifications: Pitch - 3. 81mm. Rated voltage - 150V. Rated current - 10A. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0. 2Nm (1. 7Lb-In. ). Pin header and Cage - Brass. Features: Male and Female DB15 connectors. Screw terminal block. Din rail mountable - for width 35 / 32 / 15mm rails. Din mount case can be taken apart for panel mount use. PCB carrier. FR-4 fiber glass PCB. External dimensions: 87 x 49. 5 x 43mm(W x L x H). PCB dimensions: 72 x 47. 35mm(W x L).
