Description:

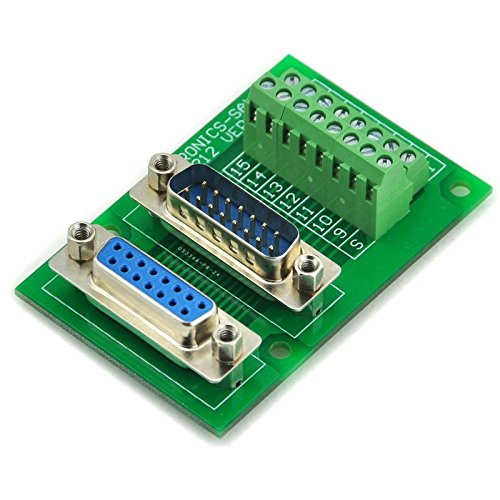

D-SUB DB15 Male / Female Header Breakout Board. DB15 male and female header connectors. Pitch 3. 81mm/0. 15" screw terminal block. FR-4 fiber glass PCB, dual copper layers. Dimensions: 72 x 47. 35 x 20mm(W x L x H). 100% new, never used. Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20C to 50C Terminal block specifications: Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0. 2Nm (1. 7Lb-In. ). Pin header and Cage - Brass. Features: D-SUB DB15 Male / Female Header Breakout Board. DB15 male and female header connectors. Pitch 3. 81mm/0. 15" screw terminal block. FR-4 fiber glass PCB, dual copper layers. Dimensions: 72 x 47. 35 x 20mm(W x L x H).
