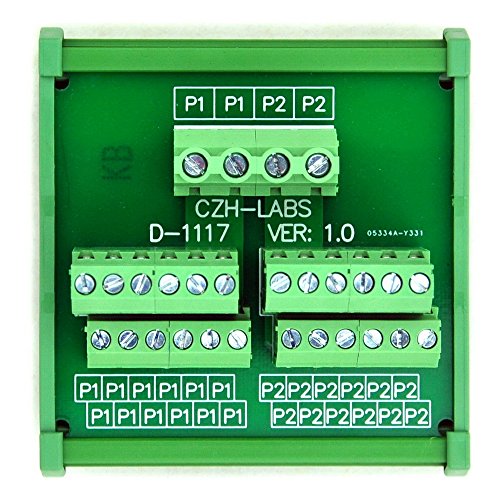

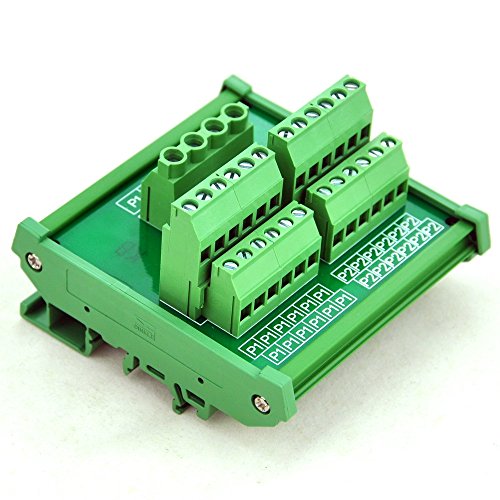

- Electronics-salon Din Rail Mount 12 Position Power Distribution Module
Description:
DIN Rail Mount Power Distribution Module Board. Specification: Voltage - 250Vac/dc, Current Rating - 40A. PCB Dimensions - 80mm x 72. 5mm x 34mm (W x L x H). Module Dimensions - 83mm x 87mm x 58mm (W x L x H). Input terminals: pitch - 7. 62mm/0. 3", current 30A for per position, wire size 2610 AWG, stripping length 8mm, Metric M3 slotted screw. Output terminals: pitch - 5. 08mm/0. 2", current 20A for per position, wire size 2612 AWG, stripping length 7mm, Metric M2. 5 slotted screw. FR-4 fiber glass PCB, dual copper layers. fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use. Features: Voltage - 250Vac/dc, Current Rating - 40A. PCB Dimensions - 80mm x 72. 5mm x 34mm (W x L x H). Module Dimensions - 83mm x 87mm x 58mm (W x L x H). Input terminals: pitch - 7. 62mm/0. 3", current 30A for per position, wire size 2610 AWG, stripping length 8mm, Metric M3 slotted screw. Output terminals: pitch - 5. 08mm/0. 2", current 20A for per position, wire size 2612 AWG, stripping length 7mm, Metric M2. 5 slotted screw. FR-4 fiber glass PCB, dual copper layers.Other fine products
