Description:

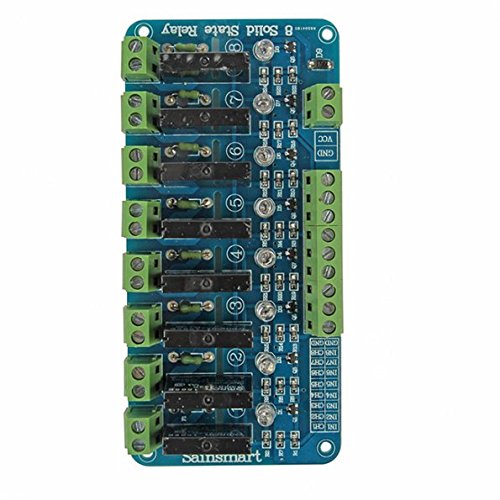

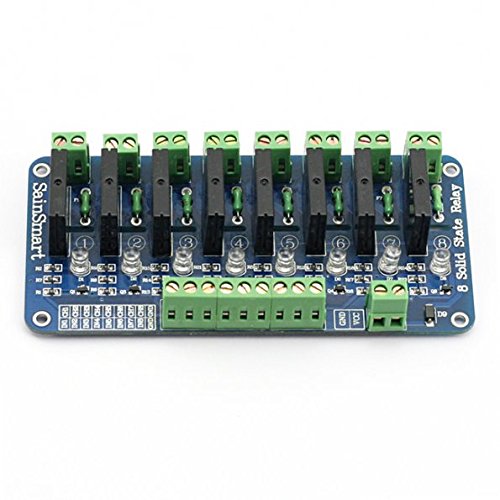

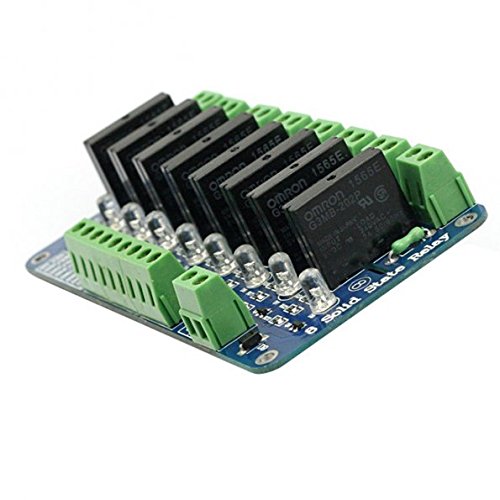

Specifications SSR Output (each channel) Load voltage range: 75 to 264VAC (50/60Hz). Load current: 0. 1 to 2 AMP. Power supply 5VDC / 160mA (all channel ON). Input control signal voltage: 0V - 0. 5V Low stage (SSR is OFF) 0. 5V - 2. 5V (unknown state). 2. 5V - 20V High state (SSR is ON). SSR Spec. Manufacturer: OMRON Part number: G3MB-202P, 5V version. Isolation: Phototriac. Zero cross: Yes. Rated output load: 2A at 100 to 240VAC. (50/60Hz). Load type: General purpose. Model # 101-70-111 Features: Has been assembled, and electrical test passed. Led indicator for each relay. FR-4 Fiber glass PCB (Double Layer); Size: 155 x 55 x 24(approximately 6. 1 x 2. 17 x 0. 95 inch) Input control signal voltage: 0V - 0. 5V Low stage (SSR is OFF), 0. 5V - 2. 5V (unknown state), 2. 5V - 20V High state (SSR is ON); SSR Output (each channel); Load voltage range: 75 to 264VAC (50/60Hz); Load current: 0. 1 to 2 AMP Standard interfthat can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) Item Dimensions: 5. 9" L x 3. 14" W x 1. 57" H.
