Description:

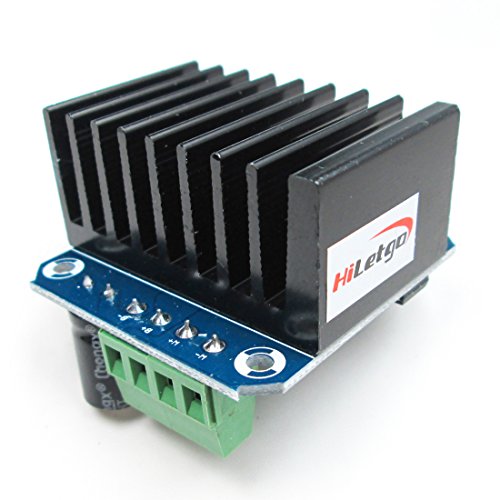

Instruction: This driver uses Infineon chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection. Double BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driver! High-current 43A. Electrical performance: Model: IBT-2 Input voltage: 6V-27V Maximum current: 43A Input level: 3. 3-5V Control method: PWM or level Duty cycle: 0-100% Input port: 1. RPWM: forward level or PWM signal input, active high 2. LPWM: Reverse level or PWM signal input, active high 3. R_EN: forward drive enable input, high-level enable, low level off 4. L_EN: Reverse drive enable input, high-level enable, low level off 5. R_IS: forward drive current alarm output 6. L_IS: Reverse drive current alarm output 7. VCC: +5 V power output, 5V power supply connection with the microcontroller 8. GND: signal common low end Package Included: 1*BTS7960 43A High Power Motor Driver Module/ Smart Car Driver Module Model # 3-01-0833 Features: 5V isolate with MCU, and effectively protect MCU; 5V power indicator on board. Voltage indication of motor driver output end; can solder heat sink. Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2); isolation chip 5 V power supply (can share with MCU 5 V). Able to reverse the motor forward, two PWM input frequency up to 25kHZ; two heat flow passing through an error signal output. Isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; the supply voltage 5. 5V to 27V.
