Description:

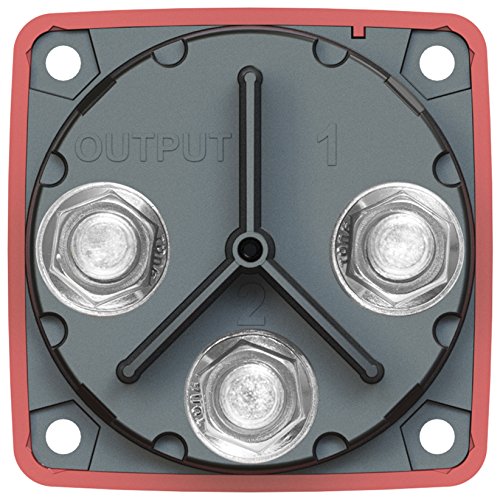

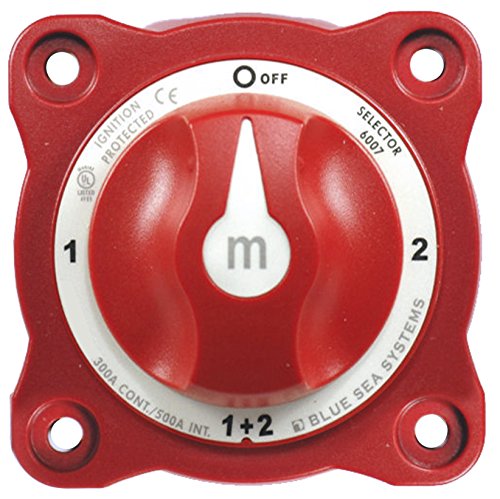

Blue Sea M-Series Red Battery Selector Switch With Knob, Dual Battery Operation. Features: Switches Isolated Battery Banks To All Loads Or Combines Battery Banks To All Loads Make Before Break Contact Design Allows Switching Between Battery Banks Without Power Interruption Ignition ProtectedSafe For Installation Aboard Gasoline Powered Boats Case Design Allows SurfOr Rear Panel Mounting Specs: Switch Type - Selector 4 Position Color - Red Switch Positions - 4 Battery Combine - Yes Alternator Field Disconnect - NO Maximum Voltage - 32V DC Continuous Rating - 300 Amps Intermittent Rating - 500 Amps 5 Minutes Cranking Rating 30 Sec - 900Amps Battery Inputs - 2 Cable Size To Meet Ratings - 4/0Awg Mounting Holes - Accept #10 Screw Terminal Stud Size - 3/8" Ring Terminals Weight - 0. 77lb (0. 35 kg) Sold As Each 16-126 K-Four Switches Features: Blue Sea / K4 Switches Quality Switches For Automotive / Industrial / Marine And Many Other applications 32 Volt Max Battery Cut-Off Switch, Dual Battery Operation Sold As Each K Four Item #16-126.
