Description:

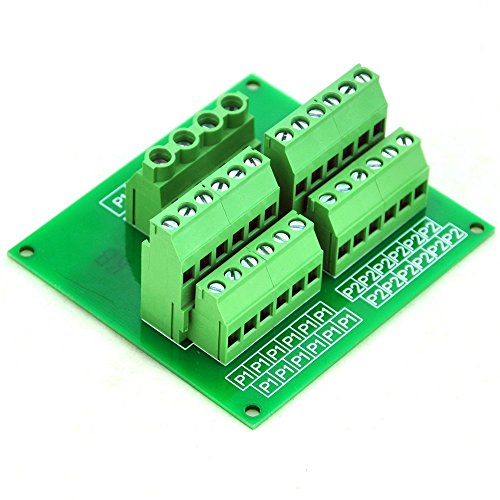

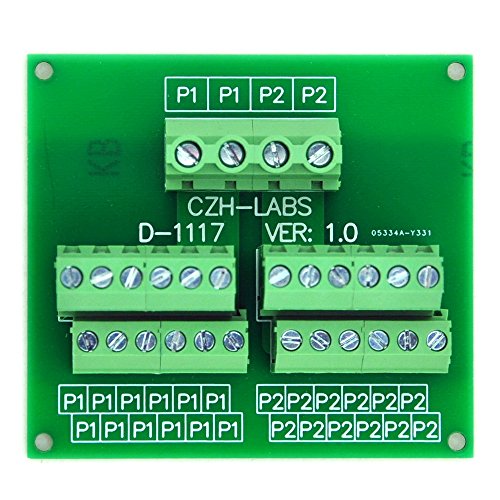

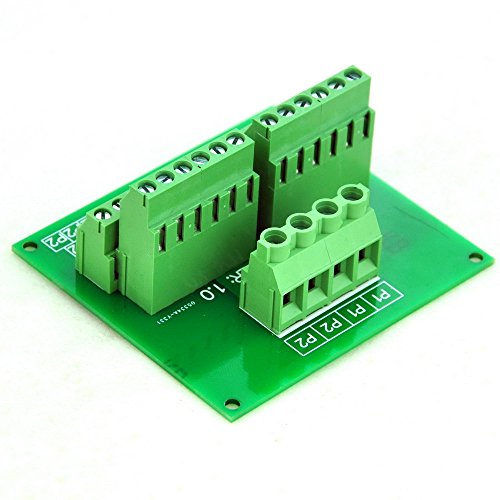

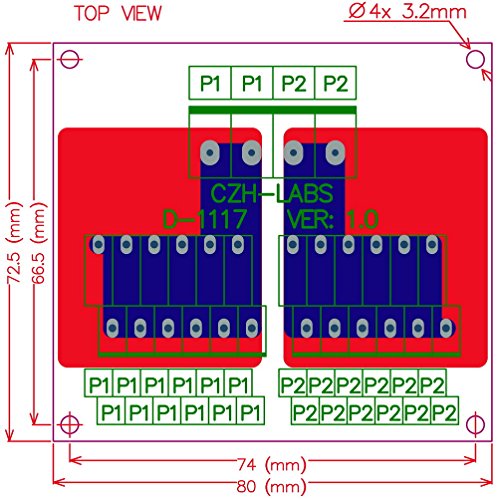

Panel Mount Power Distribution Module Board. Specification: Voltage - 250Vac/dc, Current Rating - 40A. Dimensions - 80mm x 72. 5mm x 34mm (W x L x H). Input terminals: pitch - 7. 62mm/0. 3", current 30A for per position, wire size 2610 AWG, stripping length 8mm, Metric M3 slotted screw. Output terminals: pitch - 5. 08mm/0. 2", current 20A for per position, wire size 2612 AWG, stripping length 7mm, Metric M2. 5 slotted screw. FR-4 fiber glass PCB, dual copper layers. Features: Voltage - 250Vac/dc, Current Rating - 40A. Dimensions - 80mm x 72. 5mm x 34mm (W x L x H). Input terminals: pitch - 7. 62mm/0. 3", current 30A for per position, wire size 2610 AWG, stripping length 8mm, Metric M3 slotted screw. Output terminals: pitch - 5. 08mm/0. 2", current 20A for per position, wire size 2612 AWG, stripping length 7mm, Metric M2. 5 slotted screw. FR-4 fiber glass PCB, dual copper layers.
