Description:

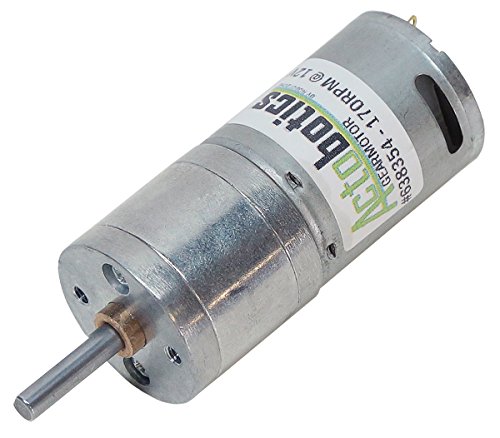

The 170 RPM 6 to 18V Econ Gearmotor is a reliable and affordable motor designed for a wide array of project applications.

• Operating Voltage Range: 6 to 18VDC
• Rated Voltage: 12VDC
• No Load Speed: 170 RPM
• Min Stall Torque: 22.04 kgf cm or 306.09 oz in
• Max Stall Current: 3.8A at 12VDC
• Operating Temperature: -10 to +60 degrees C
• Output Power at Max Efficiency: 4.28W
• Gear Type: Spur Gear
• Gear Ratio: 57 to 1
• Shaft Size: 4mm D shaft
• Mounting Screw Size: 3mm
• Material: Copper
• Max No Load Current: 0.10A
